Greenlee EK1240L22 - 12-Ton Battery-Powered Crimping Tool, 1.65" (42 mm) Opening, 230V Charger

Name: Greenlee EK1240L22 - 12-Ton Battery-Powered Crimping Tool, 1.65" (42 mm) Opening, 230V Charger
Brand: Greenlee
SKU: GreenleeEK1240L22
Price: 4002.30 USD
Availability: InStock

0 reviews | Catalog: 10231 | UPC: 783310102311 | Model: Greenlee EK1240L22

Compare

CRIMP TOOL, 12T-LI BAT 230V CHRG

Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
LED light provides the operator with the battery charge and tool maintenance status
Two-stage hydraulic system provides fast advance and power speeds, saving time
Forward handle position improves tool balance
One trigger controls all tool functions
Crimping head rotates 350°
Tools automatically retract when the crimping cycle is complete
Overmolded tacky grip areas make gripping the tool easier and more comfortable
LED work light illuminates dark work areas
U.S. Patents #6,206,663 and #6,065,326

View Product Details

List Price: $5,256.99

In Stock:

View Payment Options

Recommended for you

Greenlee EK1240L22 - 12-Ton Battery-Powered Crimping Tool, 1.65" (42 mm) Opening, 230V Charger

EK1240L22

Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
12 ton crimping force
1.65 inch opening

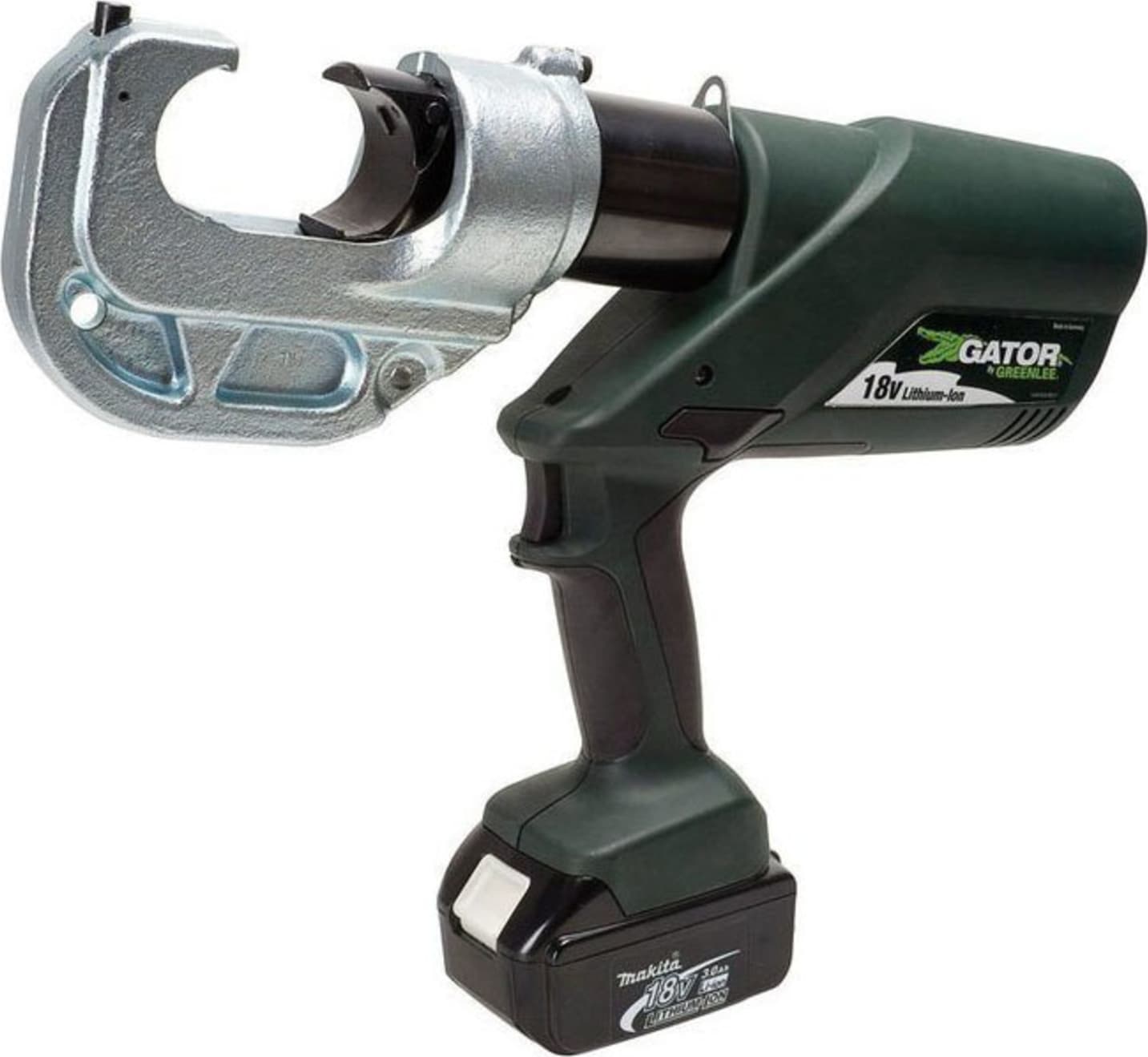

The Greenlee EK1240L Crimping Tool is a hand-held, self-contained, tool intended to crimp aluminum and copper connectors onto electrical cable. This tool has a retraction stop feature which allows the operator to stop the retraction motion of the ram to shorten cycle time.

There are several different power source options available:

CAT. NO.	UPC NO.	DESCRIPTION
EK1240L11	10227	12-Ton Battery-Powered Crimping Tool, 1.65" (42 mm) opening, 120V Charger
EK1240L12	10229	12-Ton Battery-Powered Crimping Tool, 1.65" (42 mm) opening, 12V Charger
EK1240L22	10231	12-Ton Battery-Powered Crimping Tool, 1.65" (42 mm) opening, 230V Charger
EK1240L120	10234	12-Ton Crimping Tool w/120V AC Adapter
EK1240L230	10237	12-Ton Crimping Tool w/230V AC Adapter

Specifications
Crimping Capacity	8 AWG - 750 KCMIL Copper Color Coded Lugs And Splices
Crimping Force	24000.000 LB (106.000 KN)
Opening Size	1.65 IN (42.0 MM)
Overall Length	16.25 IN (413 MM)
Rotation	350°
Standard	C/US UL Listed
Weight	15 LB (6.8 KG)
