Digital Multimeter ×

True RMS measurements AC/DC, 50,000 count display Tests frequency, temperature and capacitance, as well as diodes and continuity Automatic or manual ranging Crest capture (peak hold) max, min and max-min readings 41 segment bar graph making it easy to view quick changes

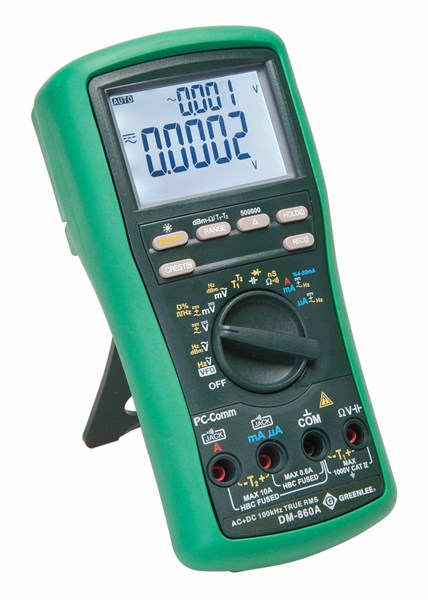

The Greenlee DM-860A Digital Multimeter is a full featured Industrial Digital Multimeter and the latest addition. Safety, performance and versatility set the Greenlee DM-860A-C Digital Multimeter apart from the rest. Greenlee DM-860A-C is a version with certificate of calibration.

The DM-860A features a bar graph display that responds more quickly than the numeric display— useful for detecting faulty contacts, potentiometer clicks, and signal spikes. An optional optically isolated computer interface with software facilitates the recording of readings from the meter to a computer.

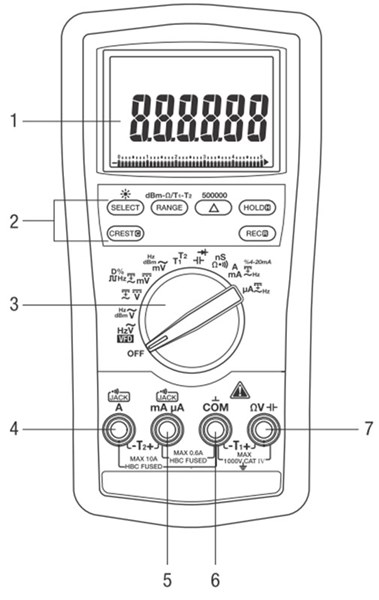

Identification


1	Display	LCD and bar graph
2	Feature Buttons	Refer to explanations under “Using the Features”
3	Selector	Selects a function or turns power OFF
4	A	Positive input terminal for high current measurements; negative input terminal for T2
5	mA µA	Positive input terminal for low current measurements; positive input terminal for T2
6	COM	Negative, common, or ground input terminal for all measurements
7	ΩV	Positive input terminal for all measurements except current

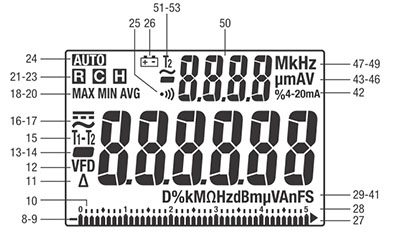

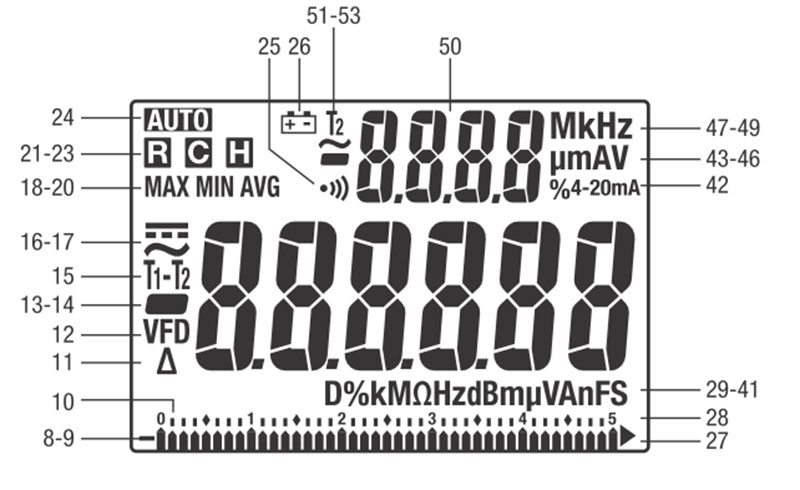

Identification

×

Primary Display Bar graph element – Polarity indicator for bar graph   Bar graph scale Δ Relative zero function is enabled. VFD  VFD function is enabled. – Polarity indicator  8.8.8.8.88  Numeric display  T1-T2 T1, T2, or T1-T2 function is enabled. ~ AC measurement is selected. DC measurement is selected. MAX Maximum is displayed or being recorded. MIN Minimum is displayed or being recorded. AVG  Average value being recorded   or displayed. R Record function is enabled. Crest capture function is enabled. Hold function is selected. Automatic ranging is enabled. Continuity Low battery Overload (bar graph display) 5  Bar graph maximum range indicator  D%  Duty cycle function is enabled. k  Kilo (103) Identification ×

M Mega (10 6 ) Ω Ohm Hz Hertz (frequency in cycles per second) dBm Decibel m Milli (10-3) µ Micro (10-6) V Volt A Ampere n Nano (10-9) F Farad S Siemen Secondary Display %4-20mA Industrial process control loop current function is enabled. µ Micro (10-6) m Milli (10-3) A Ampere V Volt M Mega (106) k Kilo (103) Hz Hertz (frequency in cycles per second) 8.8.8.8 Numeric display T2  T2 function is enabled.  ~ AC measurement is selected. –  Polarity indicator



Identification

×
