Greenlee CS-8000 - Circuit Seeker

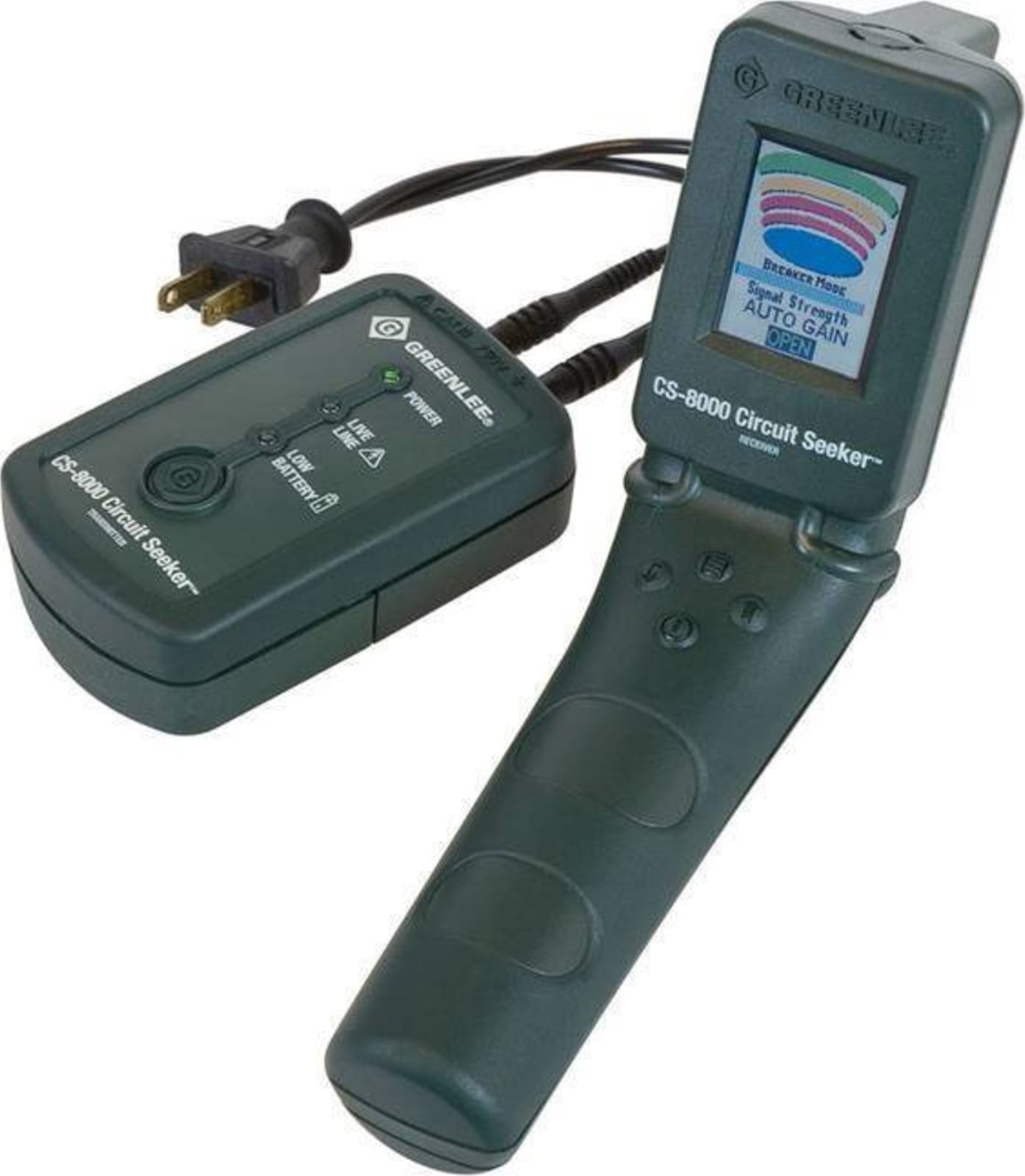

The Greenlee CS-8000 Circuit Seeker Circuit Tracer identifies and traces either live or unenergized circuits. It also locates faults or opens in a circuit, identifies specific circuit breakers, and traces circuits including those shorted to ground. The CS-8000 consists of a receiver, a transmitter, and accessories for connecting the transmitter to the circuit being traced or identified.

Utilizing both visual and audible signals in an ergonomically-designed handset, the CS-8000 is able to trace concealed wires (behind walls, in floors, in non- metallic conduit, etc.) without power interruption on circuits ranging from 0-750 volts AC or DC. And, the CS-8000 provides the ability to locate breakers for any circuit - live or open.

Easy to use and amazingly accurate, the Greenlee CS- 8000 Circuit Tracer will prove itself to be standard equipment for the contractor team when accurate tracing and locating is required.

As part of the Greenlee Test and Measurement Product line, the CS-8000 Circuit Tracer meets the latest industry safety standards and is backed by a lifetime limited warranty.

Identification

Receiver

1. Sensing surface
2. Display
3. Mode Selector
4. Decrease Manual Gain
5. Increase Manual Gain
6. Power/Signal Reset push button

Transmitter

7. Connectors (non-polarized)
8. Power LED
9. Live Line LED
10. Low Battery LED
11. Power push button

Display Icons

12. Relative Signal Strength
13. Transmitter Signal Indicator
14. Mode (Breaker–Search)
15. Absolute Signal Strength

16. Gain Mode (Auto–Manual)
17. Signal adjustment arrows (Manual Gain only)
18. Line Status (Live–Open)
