Measures length of cable without removing it from the spool, counting turns or weighing the spool 20 pre-set cable sizes plus 8 user-programmable settings Pushbutton selection of Copper or Aluminum cable Resistance measurements of 199.99mΩ to 1999.9Ω (5 ranges)

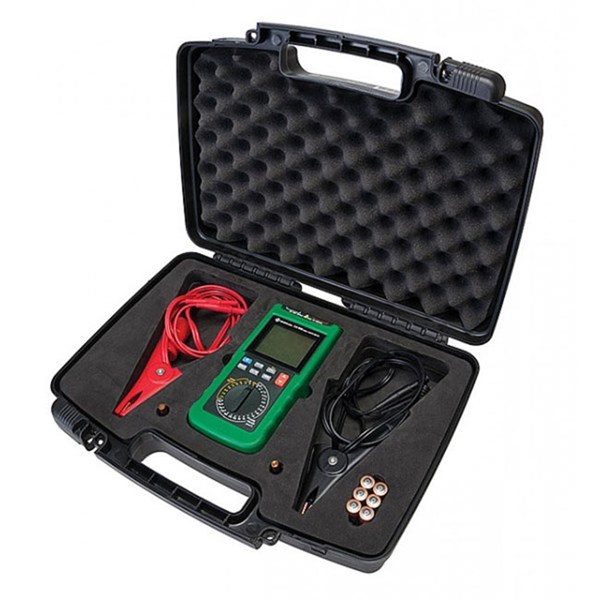

The Greenlee CLM-1000E Cable Length Meter for Metric Wire and Cable is an accurate and convenient way to measure wire length and resistance without having to remove it from a spool. Greenlee CLM-1000 is designed with 20 pre-programmed wire sizes, 8 user programmable sizes, and is designed to measure insulated copper and aluminum conductors.

The Greenlee CLM-1000 and CLM-1000E Cable Length Meters are hand-held testing devices with the follow- ing measurement capabilities: resistance, temperature, and length. They can be used as  meters to measure precise bonding resistances. The primary function of these meters is to calculate the length of cable based upon its material, temperature, and cable gauge. Cable material type can be either uncoated copper or aluminum. There are 20 pre-programmed and eight programmable cable gauges. (There are no strands per cable specification for the eight programmable switch positions.

The following are pre-programmed switch positions for the CLM-1000E.

• mm² (7 strands) – 0.75, 1, 1.5, 2.5, 4, 6, 10, 16, 25, 35
• mm² (19 strands) – 50, 70, 95
• mm² (37 strands) – 120, 150, 185, 240
• mm² (61 strands) – 300, 400, 500

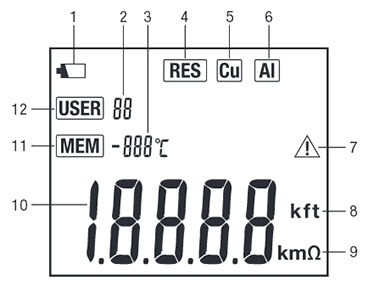

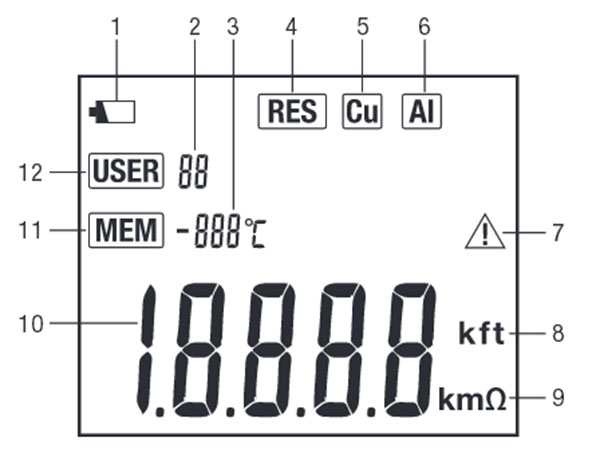

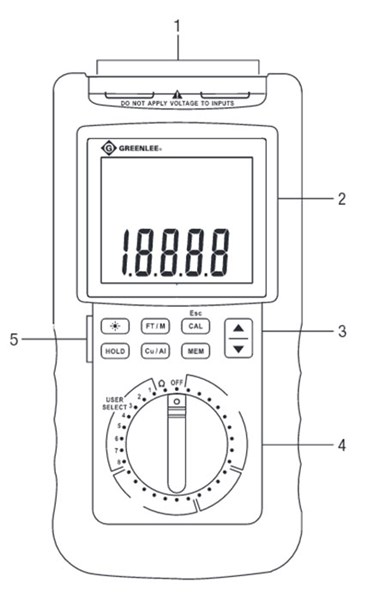

Identification Input terminals, two per Kelvin clips for a total of four terminals LCD Refer to explanation under “Using the Features.” Rotary switch Identification ×	Display Icons Low Battery Indicator  User-selected switch position Ambient temperature indication Resistance Mode Copper Aluminum Caution:  Out of temperature range k – kilo, ft – feet k – kilo + m – meter or m – milli + Ω – ohms Numeric display Memory location User-selected programming mode Display Icons ×
