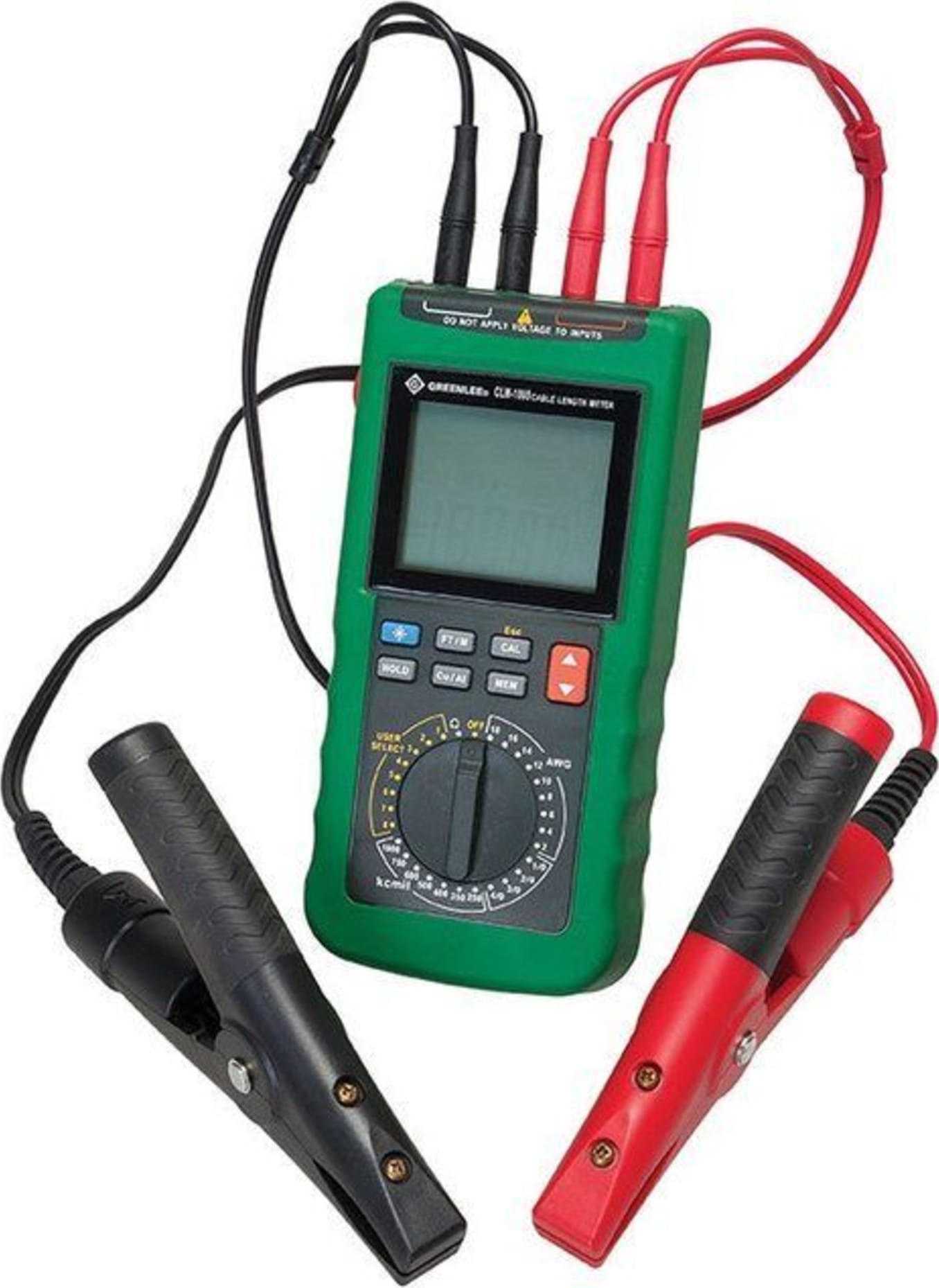

Greenlee CLM-1000 Cable Length Meter

Name: Greenlee CLM-1000 Cable Length Meter
Brand: Greenlee
SKU: GreenleeCLM-1000
Price: 460.00 USD
Availability: InStock
Rating: 5.00 (2 reviews)

5 (2 Reviews) | Catalog: 52067351 | UPC: 783310027195 | Model: Greenlee CLM-1000

Compare

METER, CABLE LENGTH (CLM-1000)

Large, 20,000 count LCD with backlight
Kelvin-type alligator clips with solid copper contacts assure low-resistance connection to the cable being measured
Automatic temperature compensation for maximum accuracy and convenience
Automatic power off to maximize battery life
20 pre-set cable sizes plus 8 user-programmable settings
Pre-programmed switch positions
- AWG (7 strands) – 2, 4, 6, 8, 10, 12, 14, 16, 18
- Aught (19 strands) – 1/0, 2/0, 3/0, 4/0
- kcmil (37 strands) – 250, 350, 400, 500
- kcmil (61 strands) – 600, 750, 1000
Powered by (6) 1.5V AA batteries

View Product Details

List Price: $577.60

Your Price: $460.00

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Greenlee CLM-1000 METER, CABLE LENGTH (CLM-1000)	Greenlee CLM-1000E METER, CABLE LENGTH (CLM-1000E)
Price
In Stock
Type (TDR/Cable Length)	Cable Length	Cable Length
Wire Type	Aluminum, Copper	Aluminum, Copper
Cable Resistance	Yes	Yes
Compare	Add to compare	Add to compare

Recommended for you

Greenlee CLM-1000 Cable Length Meter

Measures length of cable without removing it from the spool, counting turns or weighing the spool
20 pre-set cable sizes plus 8 user-programmable settings
Push button selection of Copper or Aluminum cable
Resistance measurements of 199.99mΩ to 1999.9Ω (5 ranges)

The Greenlee CLM-1000 Cable Length Meter for AWG-kcmil Wire and Cable is an accurate and convenient way to measure wire length and resistance without having to remove it from a spool. Greenlee CLM-1000 is designed with 20 pre-programmed wire sizes, 8 user programmable sizes, and is designed to measure insulated copper and aluminum conductors.

Greenlee CLM-1000 and CLM-1000E Cable Length Meters are hand-held testing devices with the follow- ing measurement capabilities: resistance, temperature, and length. They can be used as meters to measure precise bonding resistances. The primary function of these meters is to calculate the length of cable based upon its material, temperature, and cable gauge. Cable material type can be either uncoated copper or aluminum. There are 20 pre-programmed and eight programmable cable gauges. (There are no strands per cable speciﬁcation for the eight programmable switch positions.)

The pre-programmed switch positions for the CLM-1000 are:

AWG (7 strands) – 2, 4, 6, 8, 10, 12, 14, 16, 18
Aught (19 strands) – 1/0, 2/0, 3/0, 4/0
kcmil (37 strands) – 250, 350, 400, 500
kcmil (61 strands) – 600, 750, 1000

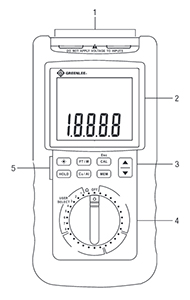

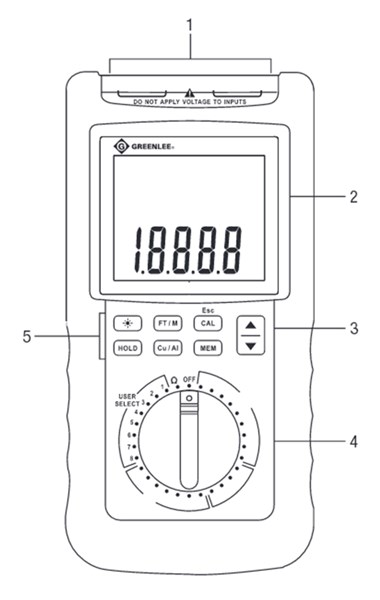

Identification Input terminals, two per Kelvin clips for a total of four terminals LCD Refer to explanation under “Using the Features.” Rotary switch Refer to explanation under “Using the Features.”	Identification ×

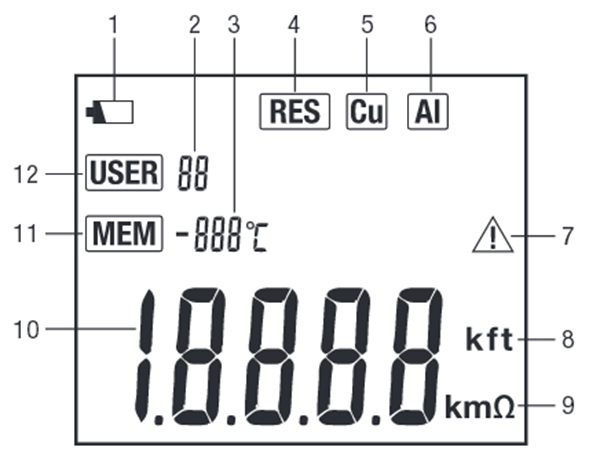

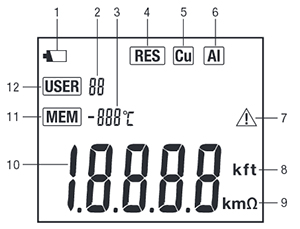

Display Icons Low battery indicator User-selected switch position Ambient temperature indication Resistance Mode Copper Aluminum Caution: Out of temperature range k – kilo, ft – feet k – kilo + m – meter or m – milli + – ohms Numeric display Memory location User-selected programming mode	Display ×

General Specifications
Application:	Use to measure the length of insulated copper or aluminum conductors on a spool, and to measure low resistance values.
Display:	4-1/2 digit LCD
Resistance Range:	199.99 milliohms to 1999.9 ohms in 5 ranges
Voltage Rating:	Not intended for connection to live voltage

TDR and Cable Length Meters Template
Type (TDR/Cable Length)	Cable Length
Wire Type	Aluminum, Copper
Cable Resistance	Yes
Data Hold	Yes
Maximum Length Measured	30000 M (98425.2 Ft)
Type of Display	Digital
Test Equipment General Attributes
Unique Features	• Measures these AWG wire gages: 18, 16, 14, 12, 10, 8, 6,4, 2 , 1/0, 2/0, 3/0, 4/0 • Measures these kcmil wire sizes: 250, 350, 400, 500, 600, 750, 1000
Product Height	3.9 IN
Product Length	7.8 IN
Product Width	2.2 IN
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	China
UPC	783310027195
Other Information	Resistance Measurement:: 199.99 mΩ to 1999.9 Ω (5 Ranges)

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Recommend to a Friend

Another Great Product

5.0

Works just as stated and beyond, the margin for error is almost non-existent as over a 3000' of specialty wire got it down to within 6" when calibrated as noted. Out of the box it was just as accurate with the pre-set wire selections. Felt comfortable with the Green Lee name but felt even more comfortable knowing tequipment would stand behind it if it wasn't what I needed. Yes I would buy another and will continue to purchase from tequipment

IrvenTulsa on Nov 06, 2018

Recommend to a Friend

Solid project

5.0

Needed this product spcifically for a project in Doral. At first I thought it was a little pricey but could not find another product that could offer the same functions. After receiving and using the product I was very impressed with its ease of use, durability and accuracy. I can whole heartedly recommend this to anyone that needs these functions.

Doug on Feb 10, 2017
