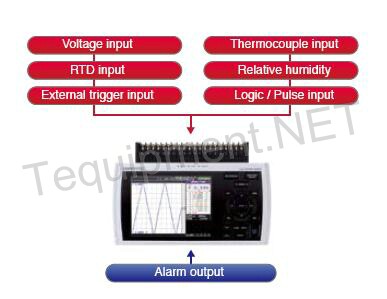

| Number of analog input terminal units | 1 unit (20 ch) or Extension unit (max. 200 ch)
Maximum 10 units or 200 ch when using with a PC |
| Sampling interval*1 | Current | 100 ms (10 ch) to 1 h |
|
| Trigger Function | Type | Start (Data capture starts when a trigger is generated)
Stop (Data capture stops when a trigger is generated) |
| Condition | Start: Off, Level, Alarm, Scheduled Time, External
Stop: Off, Level, Alarm, Scheduled Time, Elapsed Time, External |
| Alarm | Type | Analog, Logic, Pulse (AND and OR operations available) |
| Condition | Analog: H, L, Window In, Window Out |
| Logic: H, L, at each channel |
| Pulse: H, L, Window In, Window Out |
| Pulse/Logic input | Selectable between Pulse and Logic.
Number of channels: 4 |
| Pulse input range | Count mode | 50 c, 500 c, 5 kc, 500 kc, 5MC, 50MC, 500MC/F.S. (max. 50 k/sampling interval) |
| Inst. mode | 50 c, 500 c, 5 kc, 500 kc, 5MC, 50MC, 500MC/F.S. (max. 50 k/sampling interval) |
| RPM mode | 50 rpm, 500 rpm, 5 krpm, 50 krpm, 500krm, 5Mrpm, 50Mrpm, 500Mrpm/F.S. (max. 50k/sec) |
| Alarm output | Number of channels | 4 ch |
| Output format | Open collector output (5 volt pull-up resistance 10 k ohm), 5 to 24 v (100mA or less) |
| Output conditions | Level judgment, Window judgment, Logic Pattern judgment, Pulse judgment |
| External trigger input *2 *5 | 1 ch |

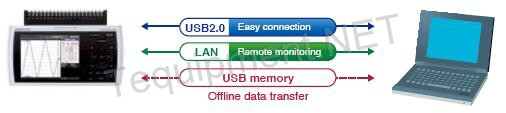

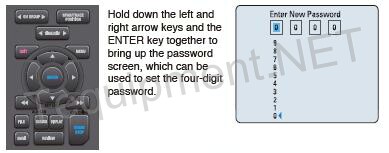

| Interface to PC | Ethernet (10BASE-T/100BASE-TX), USB (Compatible with high-speed) |
| Internal memory | 12 MByte |
| PCMCIA slot | Type 2 compatible |
| Calculation Function | Statistics calculation | Avereage, Peak, Maximum, Minimum, RMS |
| Number of Calculations | 2 calculations can be set simultaneously |
| Display | Size | 5.7-inch TFT color LCD |
| Displayed items | Waveforms + digital values, waveforms only, digital values only |
| Operating environment | Temperature: 0 - 45?C (15 - 40?C when operating by battery) , Humidity 5 - 85% RH |
| Searching Function | Searching the bneccesary point captured data. Type: Level, Alarm, Logic, Pulse |
| Power supply | AC adapter (100 to 240 VAC, 50/60Hz)
DC power (8.5 to 24 VDC) *3
Battery pack: Max 2 batteries installable, 9 hours operation (when using under Graphtec specified condition) |
| Power consumption | 26 VA or lower (AC power) |
| External dimensions (W x D x H, approx.) | 232x 152 x 50mm |
| Weight (approx.) | 990 g including a 20 channel input terminal unit *4 |
| Vibration resistance | Compatible with JIS vibration testing methods for auomobile
Type 1 Class A-Equivalent |
| Certifications | CE, RoHS,China RoHS |
*1 The available number of channels varies according to the sampling interval
*2 Maximum input voltage: 24 V, input threshold voltage: approx. 2.5V, hysteresis: approx. 0.5V (+2.5 to +V)
*3 Optional
*4 Excluding the battery and AC adapter
#5 Logic/Alarm cable (B-513) is required |
