| Item | Description |
| Number of input channels | Analog : 10 ch, Pulse *1 : 1 ch, Logic *1 : 1 ch |
| Analog input terminal shape | Screw terminal |
| Sampling interval | 10 ms to 1 h (10 ms to 50 ms are for voltage measurement only, there is a limit to the number of channels) |
| Measurement method | Scanning method |
| Measurement range | Voltage | 20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50 V, 1-5 V / F.S. |
| Temperature | Thermocouple : K, J, T, R, S, B, N, W (WRe5-26) |
| Humidity | 0 to 100 % ( when using optional humidity sensor, 0-1 V scaling conversion is used) |
| Filter | Off, 2, 5, 10, 20, 40 (Moving average with following values is done) |
| Measurement accuracy | Voltage | 0.1 % of F.S. |
| Temperature | Thermo couple | Measurement Temperature Range (?C) | Measurement Accuracy |
| R/S | 0 = TS = 100
100 < TS = 300
R : 300 < TS = 1600
S : 300 < TS = 1760
Reference contact compensation accuracy : ?0.5?C | ?5.2?C
?3.0?C
?(0.05% of rdg +2.0?C)
?(0.05% of rdg +2.0?C) |
| B | 400 ≤ TS ≤ 600
600 < TS ≤ 1820
Reference contact compensation accuracy: ?0.5?C | ?3.5?C
?(0.05% of rdg +2.0?C) |
| K | -200 ≤ TS ≤ -100
-100 < TS ≤ 1370
Reference contact compensation accuracy : ?0.5?C | ?(0.05% of rdg +2.0?C)
?(0.05% of rdg +1.0?C) |
| E | -200 ≤ TS ≤ -100
-100 ≤ TS ≤ 800
Reference contact compensation accuracy : ?0.5?C | ?(0.05% of rdg +2.0?C)
?(0.05% of rdg +1.0?C) |
| T | -200 ≤ T ≤ -100
-100 < TS ≤ 400
Reference contact compensation accuracy : ?0.5?C | ?(0.1% of rdg +1.5?C)
?(0.1% of rdg +0.5?C) |
| J | -200 ≤ TS ≤ -100
-100 < TS ≤ 100
100 < TS ≤ 1100
Reference contact compensation accuracy : ?0.5?C | ?2.7?C
?1.7?C
?(0.05% of rdg +1.0?C) |
| N | 0 ≤ TS ≤ 1300
Reference contact compensation accuracy : ?0.5?C | ?(0.1% of rdg +1.0?C) |
| W | 0
TS
2315 Reference contact compensation accuracy : ?0.5?C | ?(0.1% of rdg +1.5?C) |
| Reference contact compensation | Internal/External switching |
| A/D converter | 16 bits (out of which 14 are internally acknowledged) |
| Trigger Functions | Trigger types | Start: Data capture starts when a trigger is generated. |
| Stop: Data capture stops when a trigger is generated. |
| Trigger conditions | Start: Off, Level *2, External, Time |
| Stop: Off, Level *2, External, Time, Specified period of time |
| Alarm functions | Type | Analog, Logic or Pulse; OR logic |
| Condition*2 | Analog: Rising, Falling, Window In, Window Out |
| Pulse: Rising, Falling, Window In, Window Out |
| Logic: Rising, Falling |
| Pulse input mode | Count mode | Displays a count of the number of pulses for each sampling interval from the start of measurement |
| Inst mode | Counts the number of pulses for each sampling interval. Resets the count value after each sampling interval. |
| RPM mode | Counts the number of pulses per second; enables them to be converted to rpms. |
| Pulse input range | Count mode | 50 c, 500 c, 5000 c, 50 kc, 500 kc, 5 Mc, 50 Mc, 500 Mc |
| Inst mode | 50 c, 500 c, 5000 c, 50 kc, 500 kc, 5 Mc, 50 Mc, 500 Mc |
| RPM mode | 50 rpm, 500 rpm, 5000 rpm, 50 krpm, 500 krpm, 5 Mrpm, 50 Mrpm, 500 Mrpm |
| Alarm output | Number of channels | 1 ch |
| Output type | Open collector output (100 kO pull-up resistance) |
| Output conditions | Level judgment, window judgment, logic pattern judgment, pulse judgment |
| External trigger input*1 | 1 ch |
| PC I/F | USB |
| Data storage functions | Measurement data | Direct capture to the internal flash memory or USB memory stick |
| Other | Setting parameters and screen copy data can also be saved |
| Memory devices | GL200A internal flash memory (3.5 Mbytes), USB memory stick |
| Calculation functions | Statistical calculation: Average value, Peak value, Maximum value, Minimum value, RMS |
| Search function | Search for analog signal levels or alarm generation points in captured data |
| Search types | Analog signal | Rising or falling with respect to the specified level |
| Alarm | Both, Rising, Falling |
| Scaling conversion function | Input (upper and lower limits) and output (upper and lower limits) can be set for each channel |
| Display unit | Size: 3.5-inch TFT color LCD; Display information: Waveforms + digital values, waveforms only, digital values only |
| Maximum permissible input voltage | Between +/- terminals: 60 Vp-p
Between input terminals and casing: 60 Vp-p |
| Withstand voltage | Between each input channel and main unit chassis, and also between each CHs: 1 minute at 350 Vp-p |
| Operating environment | 0 to 40?C, 30 to 80% RH |
| Power supply | AC adapter: 100 to 240 VAC, 50/60 Hz
DC input: 8.5 to 24 VDC *3

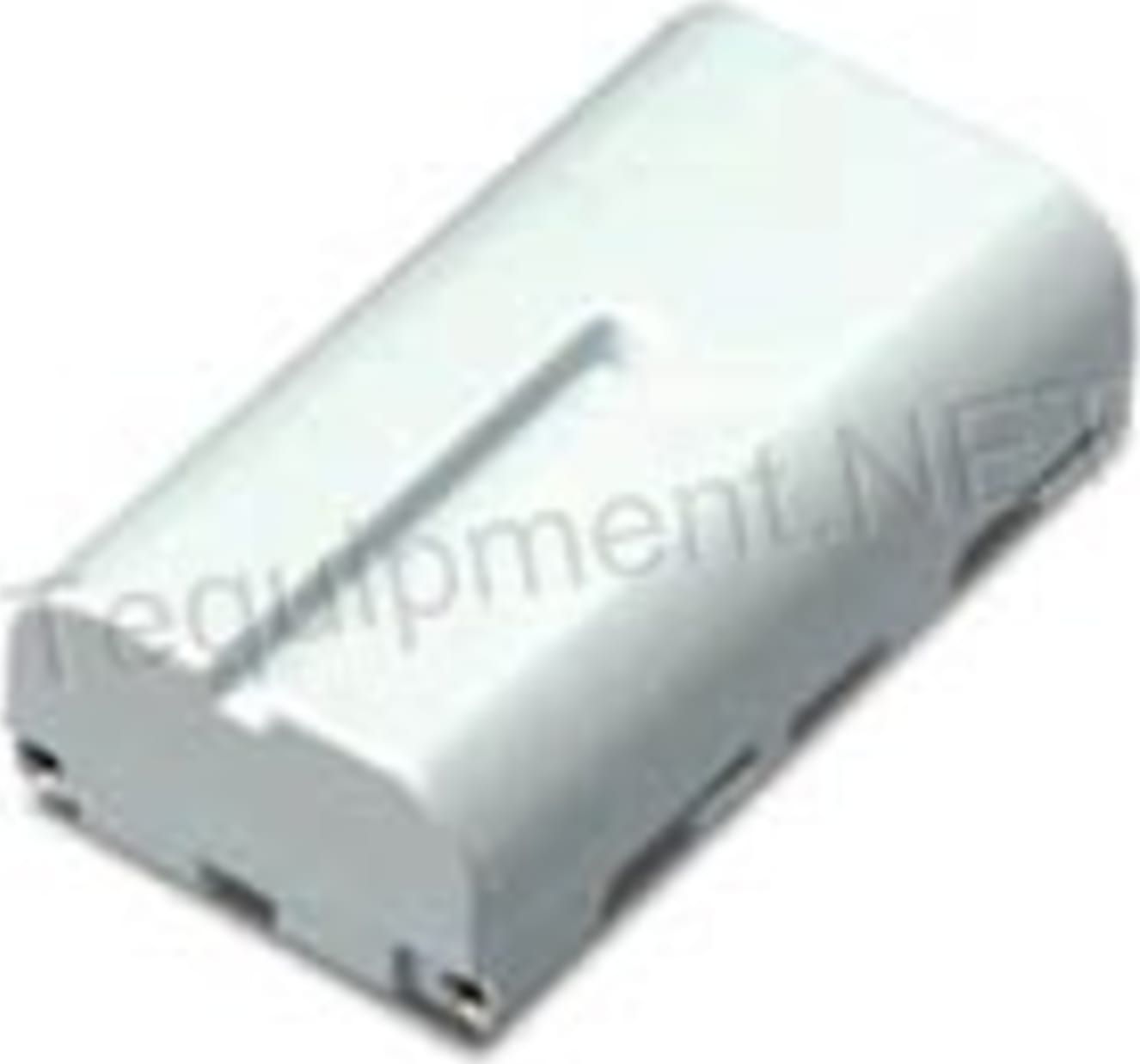

Battery pack (option) *3 |
| Power consumption | 28 VA or lower (when the AC drive is used) |
| External dimensions (W x D x H) (approx.) | 194 x 122 x 41 mm |
| Weight (approx.) | 480 g (excluding AC adapter and battery) |
| Item | Description |
| CPU | Pentium 4, 1.7 GHz or more |
| Memory | At least 512MB (1 GB recommended) |
| Supported OS | Windows 2000, Windows XP, Windows Vista |
| Functions | GL200A control, real-time data capture, file format conversion |
| GL200A setting range | Input settings, memory settings, alarm settings, trigger settings |
| Captured data | Real-time transfer to a PC, transfer of data from the GL200A? s internal memory |
| Display information | Analog waveforms, logic waveforms, pulse waveforms, digital values |
| Display modes | Digital values, waveforms |
| Monitoring function | An email is sent to a specified email address when an alarm is generated |
| File format conversion | Conversion of data between cursors or all data to the CSV format |
| Direct to Excel | Saves sampling data up to 100 ms to an Excel file |
| Maximum/minimum | Displays the maximum, minimum, and current values during measurement |
