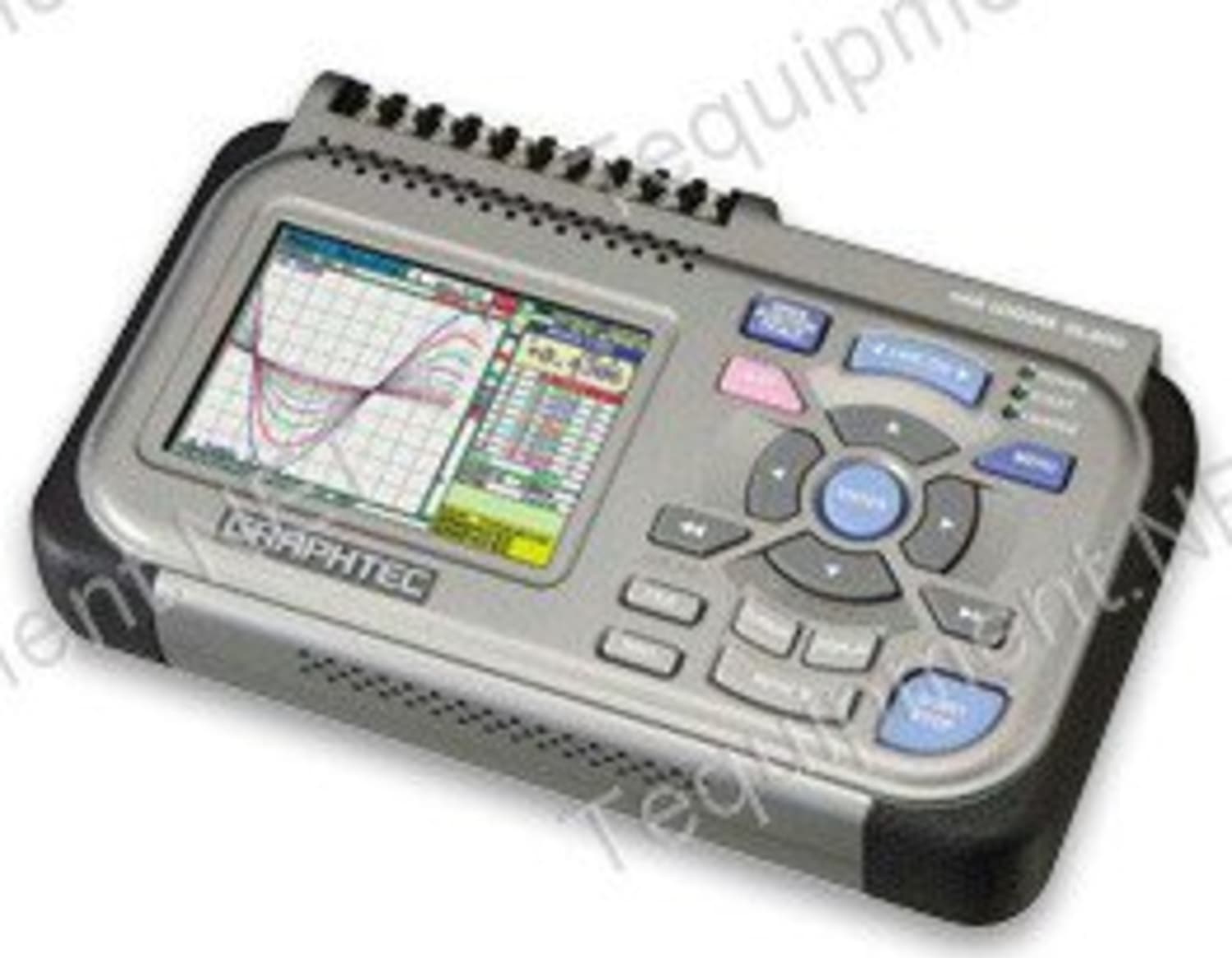

10 isolated channels, multifunction input.
The isolated input system ensures that none of the channels is affected by different signals input to the other channels and eliminates the need to pay special attention to wiring. The multifunction GL200 device accepts input of voltage, temperature, humidity, pulse and logic signals. This allows combined measurements, even for disparate phenomena such as temperature/humidity and voltage.
Accepts USB memory devices of up to 1GB capacity and allows easy connection to PCs
Two ports are provided, one for the USB memory device and one for linking to a PC. Commercially-available USB memory devices may be used for direct capture of data, with a 512-MB USB memory device, users can capture data for up to approximately 269 days *1. In addition, connecting the GL200 to a PC allows measurements to be made from the PC.
*1 10 channels, 1-s sampling rate
Vivid 3.5-inch TFT color LCD
The bright, easy-to-read 3.5-inch TFT color LCD monitor makes it even easier to review measurement parameter settings, measured waveforms, and digital values.
The product is bundled with PC application software that enables measurements with the GL200 from a PC. In addition to waveform monitoring, this software provides other useful functions such as direct writing of data to an Excel file and report creation. The software also provides a Help display function for enhanced usability.
Bundled PC Software
The unit is bundled with PC application software that enables measurements with the GL200 from a PC. In addition ro waveform monitoring, this software provides other useful functions such as direct writing of data to an Excel file and report creation. The software also provides a Help display function for enhanced usability.
Built-in flash memory for reliable measurements
The flash memory used for the built-in memory device ensures that data is retained even if the power supply is interrupted. This means momentary disruptions in the AC power supply or accidentally switching off power will not result in data loss.
| Data Capture Times (at the time of 10 ch measurement, pule & logic off) |
| Capture interval (Sampling intervals) | 100ms | 200ms | 500ms | 1s | 10s |
| 3.5MB-built in flash memory | Approx.3.9hrs | Approx.7.8hrs | Approx.19hrs | Approx.1.6days | Approx.16days |
| 256MB USB memory device | Approx.13days | Approx.26days | Approx.65days | Approx.130days | Approx.1300days |
6 hours of continuous battery operations
A convenient optional battery pack is available for use in areas where AC poser is unavailable or subject to interruption. The battery pack enables 6 hours* of continuous measurement and provides a remaining battery capacity display function,
* Varies with measurement conditions.
M3-screw terminal block
The M3-screw terminal block used for the input section provides no-fuss connections and easy, secure wiring. Both round and open-ended terminals can be connected.
User friendly design
The GL200 incorporates feature such as the ability to set measurement parameters for each item separately and navigation assistance to provide superior operability. The device case features stylish non-slip rubber.
