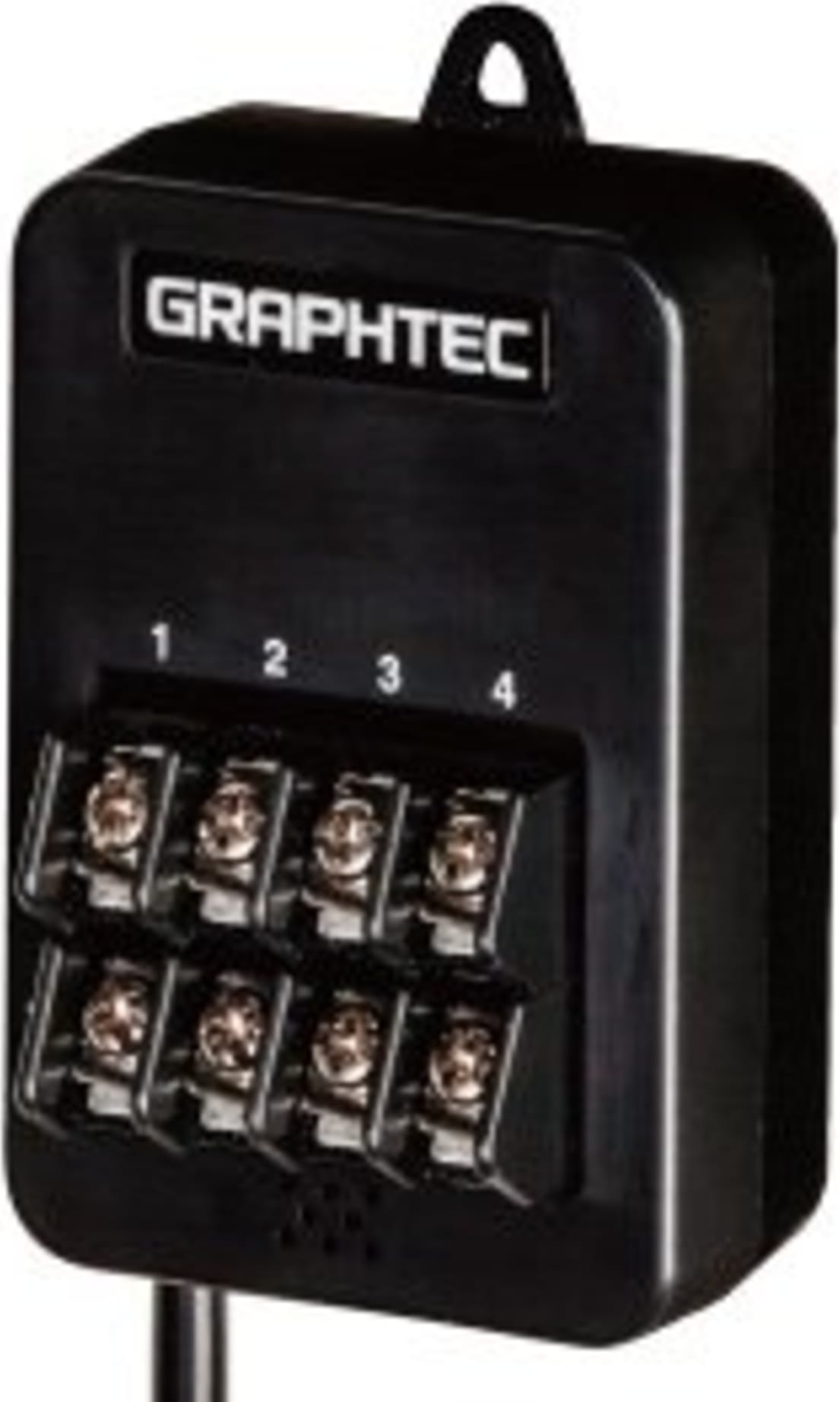

Graphtec GS-4TSR - Input Terminal Adapter 4 Channel Thermistor

Name: Graphtec GS-4TSR - Input Terminal Adapter 4 Channel Thermistor
Brand: Graphtec
SKU: GraphtecGS-4TSR
Price: 175.00 USD
Availability: InStock

0 reviews | Model: Graphtec GS-4TSR

Compare

Thermister input terminal, Thermistor (max. 120 C) and 4 ch. of logic or pulse

GS-4TSR Input Terminal Adapter 4 Channel Thermistor
Supports two optional thermistor types (GA-103AT-4P and GS-103JT-4P)
Terminal with up to 4 cha of temperature measurement (-40.0º to 105.0ºC; GS103AT-4Ptime) or (-40.0º to 120.0ºC; GS-103JT-4Ptime)
Any combination of pulse and logic channels may be measured at the same time

View Product Details

Your Price: $175.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Model	GS-4TSR
Measurement Data	Temperature, Logic/Pulse (instant and accumulated)
Measurement ch	Temperature	4ch(1)
	Logic/Pulse Count	4ch(1)
Input Method	Scans using photo-MOS relay. All channels are non-isolated input.
Range of Temperature Measurement	Supports two types of thermistors Type A: -40.0º to 105.0ºC; GS103AT-4Ptime Type B: -40.0º to 120.0ºC; GS-103JT-4Ptime
Temperature Measurement Accuracy	Main Unit	-40 ≤TS <0ºC ± 0.7ºC 0 ≤TS ≤35ºC ± 0.2ºC 35 < TS ≤70ºC ± 0.4ºC 70 < TS ≤120ºC ± 1.0ºC
	Thermistor	±0.4ºC (represented value) GS-103AT-4P / GS103JT-4P
Logic / Pulse Input	Input Voltage Range	0 to +24V (single line ground input)
	Input Signal	Wireless pressure point(2), open corrector, voltage input
	Input Voltage Threshold	Approximately +2.5V
	Hysteresis	Approximately 0.5V (+2v to +2.5V)
Range of Pulse Measurement	Instant count: Maximum 200C / sampling interval Accumulated value: Maximum 65535C(3)
Temperature Unit of Denomination	ºC / ºF (selectable)
Sampling Intervals	0.5 \| 1 \| 2 \| 5 \| 10 \| 20 \| 30 sec 1 \| 2 \| 5 \| 10 \| 20 \| 30 \| 60 min
Processor Functionality	Luminance	0 to 999,999 klxh
	UV Ray	0 to 999,999W/cm2 (2)
Extension Cable	Approx 200mm
Operating Environment	-10º to 50ºC, 80% RH and below (non-condensed)
External Dimensions	46mm x 66mm x 35.5mm (excludes protrusion)
Weight	83g (2.92 oz)
