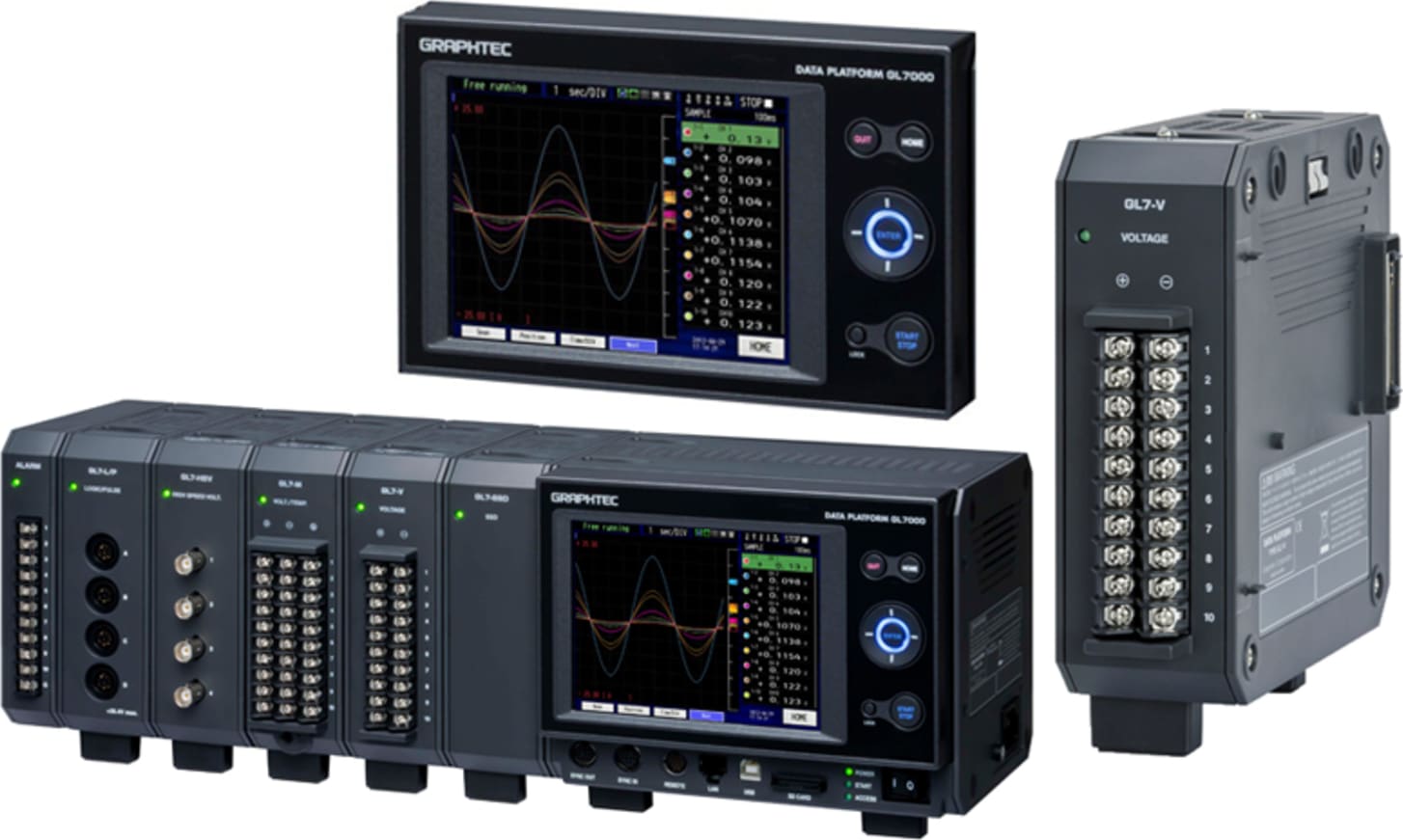

Graphtec GL7000-V-BUNDLE GL7000 Main Unit, GL7-DISP Display, and 1 GL7-V Voltage Input Module

Name: Graphtec GL7000-V-BUNDLE GL7000 Main Unit, GL7-DISP Display, and 1 GL7-V Voltage Input Module
Brand: Graphtec
SKU: GraphtecGL7000-V-BUNDLE
Price: 7550.00 USD
Availability: InStock

0 reviews | Model: Graphtec GL7000-V-BUNDLE

Images (6)

Compare

GL7000 Main Unit, GL7-DISP display, and 1 GL7-V voltage input module

GL7000-V-BUNDLE GL7000 Main Unit, GL7-DISP Display, and 1 GL7-V Voltage Input Module
Modular system allows expansion of measurements, channels and internal memory
10 channel alarm module included with each GL7000
Suitable for a variety of measurements by different type of amplifier
Multiple storage options for reliable long term measurement
Easy operation via optional 5.7" HD touchscreen display
Display is detachable and can be remotely mounted via LAN cable (max 5m direct connection). Model No. GL7-DISP
Supports stand-alone operation and embedding into a system
High performance GL-Connection software included with each GL7000

View Product Details

List Price: $7,550.00

In Stock:

View Payment Options

Recommended for you

GL7000-V-BUNDLE GL7000 Main Unit, GL7-DISP Display, and 1 GL7-V Voltage Input Module.

Modular system allows expansion of measurements, channels and internal memory

10 channel alarm module included with each GL7000

Suitable for a variety of measurements by different type of amplifier

Multiple storage options for reliable long term measurement

Easy operation via optional 5.7" HD touchscreen display

Supports stand-alone operation and embedding into a system

Graphtec GL7000-V-BUNDLE GL7000 Main Unit, GL7-DISP Display, and 1 GL7-V Voltage Input Module

The module can be expanded to accommodate a wide variety of measurements

GL7000 can measure the desired signal according to the needs and can expand into other applications adding different amplifier modules.

Modular system allows expansion of measurements and channels

A wide variety of measurements can be supported by the amplifier module

Measurements for different applications can be added to the amplifier module. It is also possible to mix measurements by adding different types of modules.

The Voltage module, Voltage/Temperature module, High Speed Voltage module and Logic/Pulse models are available. The other modules will be released sequentially starting in the autumn of 2012.

Amplifier can be attached to up to 10 modules
Up to 10 amplifier modules can be attached for multi-channel measurements, with up to 112 channels on one GL7000.

Maintains sampling speed even if the number of amplifier modules are increased

Voltage* and Volt/Temp amplifier can maintain high-speed and multi-channel measurements without dropping the sampling speed, even if the number of modules are increased.

* In the High-speed voltage and Logic/Pulse module, the sampling speed will be limited by the recording medium.

Sampling speed

Amplifier Module	Channels in 1 module	Max. sampling speed in the module	Media type to save data	Max. sampling speed in the GL7000
				Attached to 1 or 2 modules	Attached to3 or 4 modules	Attached to 5 to 10 modules
Voltage Module (GL7-V)	10 channels	1 k Samples/s (1ms interval)	Built-in RAM	1 k Samples/s (1ms interval)
			Built-in Flash
			SD card
			SSD *3
Volt./Temp. Module (GL7-M)	10 channels	100 Samples/s (10ms interval)	Built-in RAM	100 Samples/s (10ms interval)
			Built-in Flash
			SD card
			SSD *3
High-speed voltage Module (GL7-HSV)	4 channels	1 M Samples/s (1µs interval)	Built-in RAM	1 M Samples/s (1µs interval)
			Built-in Flash	1 k Samples/s (1ms interval)
			SD card
			SSD *3	1 M S/s (1µs interval)	500 k S/s (2µs interval)	200 k S/s (5µs interval)
Logic/Pulse Module (GL-L/P)	16 channels	In Logic mode,1 M Samples/s (1µs interval)	Built-in RAM	1 M Samples/s (1µs interval) *1
			Built-in Flash	1 k Samples/s (1ms interval) *1
			SD card
			SSD *3	1 M S/s (1µs interval)	500 k S/s (2µs interval)	200k S/s (5µs interval) *1
		In Pulse mode,10 k Samples/s (100µs interval)	Built-in RAM	1 M S/s (1µs interval)	Not Available *2
			Built-in Flash	1 k S/s (1ms interval)
			SD card
			SSD *3	1 M S/s (1µs interval)

^*1:	Using in Logic mode, the module can be attached up to 7 units.
^*2:	Using in Pulse mode, module can be attached up to 2 units.
^*3:	SSD module is an option. Number of channels for pulse input will be limited when the High-speed voltage module and Logic/Pulse module are used simultaneously.

Require more channels

Multi-channel measurement is possible to 1120 channels using the PC

Up to 10 units of the GL7000 can be connected to 1 PC through LAN or USB and controlled using the software.

Up to 5 units of the GL7000 can be fully synchronized using the sync. Cable

The start/stop trigger, and sampling can be synchronized in the GL7000 when they are connected by a sync cable. The master and slave units are automatically identified.

Suitable for a variety of measurements by different type of amplifier module

Suitable for a variety of measurements due to flexible module combinations

Four type of modules are available.

Voltage Module

The output of various sensors such as displacement, pressure, wind speed, etc.
Cell voltage of the battery.

Voltage/Temperature Module

Measuring temperature and voltage simultaneously. For environmental tests, etc.

High Speed Voltage Module

Measurement of parameters in the inverter system, vibration test, drop test, etc.

Logic/Pulse Module

Timing of system control signal, encoder output, rotational speed, flow rate, etc.

Amplifier module

Module	Voltage	High Speed Voltage	Voltage/Temperature	Logic/Pulse
Number of input channels	10 channels	4 channels	10 channels	16 channels
Input terminal	Screw terminal (M3)	BNC connector	Screw terminal (M3)	Specific connector
Input method	All channel isolated unbalanced input, simultaneous sampling		All channels isolated balanced input, scanning channels for sampling	All channels common ground, simultaneous sampling
Sampling speed	1 k Samples/s to 1 Sample/h (1ms to 1hr. interval)	1 M Samples/s to 1 Sample/h (1µs to 1hr. interval)	100 Samples/s at 1-10ch to 1 Sample/h (10ms at 1-10ch to 1hr. interval)	Logic mode: up to 1 M Samples/s (1µs interval) Pulse mode: up to 10 k Samples/s (100µs interval)
Measurement range	100mV to 100V F.S., and 1-5V F.S.		Volt.: 20mV to 50V F.S., and 1-5V F.S. Temp.:Thermocouple: K, J, E, T, R, S, B, N, W (WRe5-26) RTD: Pt100 (IEC751), Pt1000 (IEC751), Pt100J (JIS)	Bi-level signal, up to 24V Select either Logic or Pulse mode Logic: Signal pattern Pulse: Counting in Instant, Accumulating, Rotation (max. 15 million count)
A/D converter	Successive Approximation, 16 bits		Sigma-delta, 16 bits
Withstand voltage	Between channels: 1000 V, 1min. Between inputs and GND: 1000 V, 1 min.		Between channels: 350 V, 1 min. Between inputs and GND: 350 V, 1 min.
Built-in RAM	2 million samples

Modules will be released sequentially starting in the autumn of 2012.

Multiple storages for reliable long term measurement

Supports four destinations to save the captured data according to the conditions of the measurement

1. Built-in RAM

The RAM to save 2 million samples is built into each amplifier module. The data capture duration does not decrease with increasing numbers of channels because the built-in RAM for each amplifier module is used.

2. Built-in Flash memory

The 2GB of Flash memory is built into the main module. The captured data can be saved directly to the built-in Flash memory when the sampling is not faster than 1ms (sampling speed: 1 k Samples/s). Saved data is retained even when power is turned off because flash memory is used.

3. SD memory card

SD card slot (supports SDHC, up to 32GB) is standard on the main module. The captured data can be saved directly to the SD memory card when the sampling is not faster than 1ms (sampling speed: 1 k Samples/s). It supports hot-swap, so the SD memory card can be replaced during measurement without data loss.* The captured data can be transferred easily to the PC in offline condition.

* The hot-swap is possible when the sampling is slower than 100ms.

4. SSD module (64GB)

Allows large amounts of data to be quickly saved when the optional SSD module is attached. The captured data can be saved directly to the SSD when the sampling is not faster than 1µs (sampling speed: 1 M Samples/s).* It has a high vibration resistance and saved data is also retained even when power is turned off.

* The number of modules are limited.

FTP client function

Captured data is periodically transferred to the FTP server for backup when the GL7000 is connected to the LAN (Local Area Network).

Single module attached
Amplifier Module	Storage Device	Device Capacity	Total number of channels	Sampling speed (interval)
				1 M S/s (1µs)	500 k S/s (2µs)	200 k S/s (5µs)	1 k S/s (1ms)	100 S/s (10ms)	1 S/s (1s)
Voltage Module (GL7-V)	Built-in RAM	2 M samples	10 channels	N/A	N/A	N/A	33 min.	5 hrs.	23 days
	Built-in Flash memory	1.87GB					21 hrs.	8 days	893 days
	SD memory card *2	32GB is attached					22 hrs.	9 days	956 days
	SSD *2	64GB
Volt./Temp. Module (GL7-M)	Built-in RAM	2 M samples	10 channels	N/A	N/A	N/A	N/A	5 hrs.	23 days
	Built-in Flash memory	1.87GB						8 days	893 days
	SD memory card *2	32GB is attached						9 days	956 days
	SSD *2	64GB
High-speed Voltage Module (GL7-HSV)	Built-in RAM	2 M samples	4 channels	2 sec.	4 sec.	10 sec.	33 min.	5 hrs.	23 days
	Built-in Flash memory	1.87GB		N/A	N/A	N/A	39 hrs.	16 days	1660 days
	SD memory card *2	32GB is attached					42 hrs.	17 days	1775 days
	SSD *2	64GB		134 sec.	268 sec.	671 sec.
10 modules attached
Amplifier Module	Storage Device	Device Capacity	Total number of channels	Sampling speed (interval)
				1 M S/s (1µs)	500 k S/s (2µs)	200 k S/s (5µs)	1 k S/s (1ms)	100 S/s (10ms)	1 S/s (1s)
Voltage Module (GL7-V)	Built-in RAM	2 M samples	100 channels	N/A	N/A	N/A	33 min.	5 hrs.	23 days
	Built-in Flash memory	1.87GB					2 hrs.	24 hrs.	103 days
	SD memory card *2	32GB is attached					2 hrs.	26 hrs	111 days
	SSD *2	64GB
Volt./Temp. Module (GL7-M)	Built-in RAM	2 M samples	100 channels	N/A	N/A	N/A	N/A	5 hrs.	23 days
	Built-in Flash memory	1.87GB						24 hrs.	103 days
	SD memory card *2	32GB is attached						26 hrs.	111 days
	SSD *2	64GB
High-speed Voltage Module (GL7-HSV)	Built-in RAM	2 M samples	40 channels	2 sec.	4 sec.	10 sec.	33 min.	5 hrs.	23 days
	Built-in Flash memory	1.87GB		N/A	N/A	N/A	5 hrs.	53 hrs.	223 days
	SD memory card *2	32GB is attached					5 hrs.	57 hrs.	239 days
	SSD *2	64GB				95 sec

^* 1: The capturing time figures are approximate.
^* 2: The file size of the captured data is limited up to 2GB.

Easy operation with large display and touch panel

Improved ease-of-use with the high-definition display and touch panel

The touch panel makes setting the conditions intuitive, and it can also be operated using the cursor keys similar to the GL series.

Large easy-to-read 5.7-inch high-definition LCD monitor

Utilises a bright clear 5.7 inch wide TFT color LCD monitor (VGA: 640 x 480 dots). Makes it easy to read data in wave form or digital form and to check measurement parameter settings.

Support stand-alone operation and embedding into a system

The detachable display module allows both stand-alone and embedded system configurations

Measurement settings and signal measurement can both be done without a PC by attaching the display module. The display module can be moved to different locations for remote operation by connecting it to the main module with a LAN cable*, it also can be embedded into the system. The module can still be operated by the PC even when the display module is connected.

* Up to 10m using CAT5 LAN cable (straight connection)

High performance application software

Software for high performance and easy operation

The GL7000 can be controlled by the GL-Connection software that is included. The software has convenient functions such as saving data to the PC, replaying captured data, and converting data form. It is an integrated application software for the GL series, the GL900, GL820 and GL220 can also be connected.*

* The version for supporting other GL series will be available in December 2012.

Various measurement screens

The measurement signal can be displayed as various types of screens by the unit, the module or the specific channels that are specified in the group function. It can also be displayed as a combination of the capturing data and captured data, the Y-T format and the X-Y format, simultaneously. Up to 112 channels can be displayed in each window.*

* In case of using dual screen, total 244 channels can be displayed.

Multi-window function, measured waveform can be displayed in various forms using multiple windows

Useful functions

For real time and the post processing.

Statistical Calculation
The maximum, minimum, peak, and average values are displayed while capturing data. The value between the cursors of the maximum, minimum, peak, average, and RMS will be displayed when replaying captured data.
File operation
The data can be converted to the CSV format for a specified period, all data, or multiple files. A file can also be created by compressing or consolidating multiple files.
Search
The search point can be set by the level, alarm, or time (the beginning of the data, center, end, trigger point, the specified time, instruction time, the number specified).
Send mail
Alarm warnings can be sent via Email.

GL7000 MAIN UNIT SPECIFICATIONS
Number of module		Attached to up to 10 modules *1
Number of input channels		Max. 112 channels in one GL7000
External Input/Output signals *2	Input	Start/Stop, Trigger, External sampling, Auto balance Signal type: Contact (relay), Open collector, Voltage
	Output	Trigger, Busy, Alarm (10 channels) *3 Signal type: Open collector (pulled-up by resistor 10 k ohms)
Trigger, Alarm function	Trigger repeat	Enabled (ON): Automatically rearm for the next data capture Disabled (OFF): Data capture is completed in a single trigger
	Trigger action	Start or stop capturing data by the trigger
	Trigger condition	Start: Off, Measured signal, Alarm, External, Clock, Week or Time Stop: Off, Measured signal, Alarm, External, Clock, Week or Time
	Trigger determination conditions for measured signal	Combination: OR or AND condition at the level of signal or edge of signal Analog: Higher/Rising, Lower/Falling, Window-in, Window-out Logic 4: Higher/Rising Lower/Falling Pulse 4: Higher/Rising, Lower/Falling, Window-in, Window-out
	Alarm determination condition *5	Combination: OR or AND condition at the level of signal or edge of signal Analog: Higher/Rising, Lower/Falling, Window-in, Window-out Logic 4: Higher, Lower, Rising, Falling Pulse 4: Higher/Rising, Lower/Falling, Window-in, Window-out
	Alarm output	10 channels
	Pre-trigger *6	Number of data before trigger: Up to specified number of captured data
Calculation function	Between channels	Addition, Subtraction, Multiplication and Division for two analog inputs (Sampling speed is limited up to 10 Samples/s (100ms interval). Available arithmetic element and the output destination is the analog input channel 1 to 100.)
	Statistical	Select two calculations from Average, Peak, Max., Min. in real time and replay *7
Move function of the display range		Beginning, center or end of the data, Trigger point, Specific time (absolute, relative), Call cursor
Search function		Search for analog signal levels, logic signal pattern, pulse signal levels or alarm point in captured data
Annotation function		Comment can be set in each channel (up to 31 alphanumeric characters)
Message, Marker function		Message: Record up to 8 messages in any timing (Any message can be set before data capture is started or during data capture.)Marker: Recorded when the trigger, alarm or power failure occur
Resume		Resume automatically in the same condition after power is recovered when the power failure occurred duaring data capture *8
Interface to PC		Ethernet (10 BASE-T/100 BASE-TX), USB 2.0 (High speed)
Network function		WEB server, FTP server, FTP client, NTP client, DHCP client
USB drive mode		Emulate the USB memory device *9
Storage device
	Built-in	RAM (2 million samples, built-in Signal conditioning module), Flash memory (2 gigabytes, built-in the main module)
	External *10	SD card (Support SDHC, up to 32 GB) slot, SSD (Approx. 64 GB)The file for capturing data is limited up to 2 GB.
Data saving function
	Captured data *10	Built-in RAM, Built-in Flash, SD memory card, SSD (Data is saved directly to it.)
	Data in built-in RAM	Specified number of data up 2 million samples increment of 1
	Auto save *10	Available for the built-in RAM Enabled (ON): Data in the RAM is saved automatically to the built-in Flash, SD memory card, SSD Disabled (OFF): Data in the RAM is not maintained after power is turned off
	Ring capturing mode 10 11	Saves most recent data Number of capturing data: 1000 to 2000000 points, Destination of data: Built-in RAM, Built-in Flash, SD memory card, SSD
	During capturing data	Displaying information in two windows, Hot-swapping the SD memory card, Saving data in between cursors.
	Backup *10	Backup interval: Off, 1, 2, 6, 12, 24 hrs. Data destination: SD memory card, SSD, FTP server
Engineering Scale function		Measured value can be converted to the engineering unit Analog voltage: Converts by four reference points (gain, offset) Temperature: Converts by two reference points (offset) Pulse count: Converts by two reference points (gain)
Synchronization between units		Start and Trigger *12
Accuracy of clock (at 23 degree Celsius)		+/- 0.002 % (Monthly deviation approx. 50 sec.)
Operating environment		0 to 45 ºC, 5 to 85 % RH (non condensed)
Power source		100 to 240 V AC, 50/60 Hz
Power consumption		Approx. 85 VA
Standard accessories		Quick guide, CD-ROM, AC power cable
External dimensions (W x D x H)		Main module: Approx. 193 x 141 x 160 mm (Excluding projectin), Alarm Output terminal: Approx. 30 x 136 x 145 mm (Excluding projection)
Weight		Main module: Approx. 2 kg, Alarm output terminal: Approx. 350 g
DISPLAY MODULE SPECIFICATIONS
Model name		GL-Connection
Supported OS		Windows 7 (32/64-bits, Except Starter edition), Vista (32/64-bits), XP *13
Functions		Control GL7000, Real-time data capture, Replay data, Data format conversion
Controlled units		Up to 10 units (Max. 1120 channels)
GL7000 Settings control		Input settings, Memory settings, Trigger and Alarm settings, Other settings
Captured data *14		Built-in RAM (Binary format), Built-in Flash memory (Binary, CSV format), SD memory card (Binary, CSV format), SSD (Binary, CSV format) The sampling is limited by the number of channels used. (1 ms per channel. When 10 channels are set, sampling is limited to 10 ms.)
Displayed information		Analog waveforms, Logic waveforms, Pulse waveforms, Digital values
Display mode		Y-T waveform with digital values, X-Y graph in real time, Cursor information, Capture condition, Alarm information
File operation		Converts binary data to the CSV data (specific period, all data in one file, multiple files), Creates a new file with compression or by consolidating multiple file.
Warning Function		Send e-mail to the specified address when the alarms occur
Statistical calculation		Capturing data: Maximum, Minimum, Peak or Average Replaying data: Maximum, Minimum, Peak, Average or RMS in between cursors
Search function	Level	Specific level in any channel
	Alarm	Occurred alarm in any channel
	Time	Beginning, center, end of the data, Trigger point, Specific time (absolute, relative), Specific number
Operation lock		Operation screen can be locked (It is unlocked with the password.)
Model name		GL7-DISP
Display device		5.7-inch TFT color LCD monitor (VGA: 640 x 480 dots)
Operation section		Touch panel and Cursor keys *15
Touch panel		Capacitive type touch panel, Operated by finger or the proprietary pen
Displayed language		English, French, German, Chinese, Korean, Japanese
Screen saver		Turns off backlight by 10, 30 sec., 1, 2, 5, 10, 30, 60 min.
Displayed information		Waveform in Y-T with digital values, Waveform only, Digital value, Waveform in X-Y
Connection cable		LAN cable (CAT5 class, Straight connection, Up to 10m) *16
Standard accessories		Bracket for slanted mount, Connection cable (40cm), Ground cable, Screws
External dimensions (W x D x H)		Approx. 187 x 35 x 199 mm (Excluding projection)
Weight		Approx. 530 g
SSD MODULE SPECIFICATIONS
Model name		GL7-SSD
Memory device		Solid state disk (SSD), Form factor: 2.5-inch HDD
Capacity		Approx. 64 GB (The file size of the captured data is limited up to 2 GB.)
Sampling speed *17
	Attached 1 or 2 modules	Max. 1 M Samples/s
	Attached 1 or 2 modules	Max. 500 k Samples/s
Attached 5 to 10 modules		Max. 200 k Samples/s
External dimensions (W x D x H)		Approx. 49 x 136 x 160 mm (Excluding projection)
Weight		Approx. 770 g

^*1	Excluding the function module as the Display module or SSD module.
^*2	The Input/Output cable (B-513) is required for connecting the signal. The Autobalance signal input and the Busy signal output are used in the DC Strain Module.
^*3	The alarm signals are output on the terminal block attached to the main module as standard accessory.
^*4	It is available on the Logic/Pulse module.
^*5	Method of detection Volt./Temp. module: The alarm is detected in the sampling interval when the sampling interval is shorter than 5 seconds. The alarm is detected every 5 seconds when the sampling interval is longer than 5 seconds. Other modules: The alarm is detected in every 1ms when the sampling interval is shorter than 1ms. The alarm is detected in the sampling interval when the sampling interval is set between 2ms to 5 seconds. The alarm is detected every 5 seconds when the sampling interval is longer than 5 seconds.
^*6	It is available when the captured data is saved to the built-in RAM. The pre-trigger function may not work in combination with the trigger settings.
^*7	The result of real time calculation is displayed in the digital display mode.
^*8	When the captured data destination is set to the built-in-RAM, the captured data is not maintained after a power failure occur. The built-in Flash or the SD memory card may be damaged by a power failure if it being accessed to writ data. If the memory device is not damaged, the closed data file is maintained. The file is closed every one minute while data is being captured.
^*9	The USB drive mode is started by setting of the switch on the main module. It can be also started when the power is turned on while pressing the key on the display module.
^*10	The SD memory card is included as the standard accessory. The SSD module is an option.
^*11	The capacity for saving the data is set to one third of available memory when the captured data destination is set to a device other than the built-in-RAM. The sampling speed is limited up to 10 samples (100ms interval).
^*12	The Sync cable (B559) is required when this function is used. The GL-Connection software is required when the synchronizing function is used.
^*13	The SP2 or higher service pack need to be installed.
^*14	The captured data that is saved to the built-in-RAM or SSD cannot be saved to the PC in real time. The data in built-in-RAM or SSD needs to be transferred to the PC after data captur is complete.
^*15	Most operations can be selected by both touch panel and keys.
^*16	When the display module is mounted at an angle using the bracket, the display module is connected to the main module by a LAN cable that is attached to the display module as standard accessory.
^*17	The sampling speed in the GL7000 is limited to the fastest sampling speed of attached signal conditioning module. When the specified sampling speed is faster than the module, the sampling is done in fastest sampling on the module. The same value is stored to the memory device in the specified sampling speed until data is renewed by the next sampling.

VOLTAGE/TEMPERATURE MODULE SPECIFICATIONS
Model number			GL7-M
Number of input channels			10 channels
Input method			All channels isolated balanced input, Scans channels for sampling, Screw terminal (M3 screw)
Sampling speed			100 Samples/s at 1-10ch to 1 Sample/h (10 ms with 1-10ch to 1 hr. interval)
Measurement range	Voltage		20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50 V, and 1-5 V/F.S.
	Temperature		Thermocouple: K, J, E, T, R, S, B, N, and W (WRe5-26), RTD: Pt100, JPt100 (JIS), Pt1000 (IEC751)
	Humidity *1		0 to 100 % (using scaling function in 5V range, humidity sensor B-530)
Measurement accuracy*2	Voltage		± 0.1 % of F.S.
	Temperature	Thermocouple	Measurement range	Measurement accuracy
		R/S	0 °C = TS = 100 °C	± 5.2 °C
			100 °C < TS = 300 °C	± 3.0 °C
			R: 300 °C < TS = 1600 °C	± (0.05 % of reading + 2.0 °C)
			S: 300 °C < TS = 1760 °C	± (0.05 % of reading + 2.0 °C)
		B	400 °C = TS = 600 °C	± 3.5 °C
			600 °C < TS = 1820 °C	± (0.05 % of reading + 2.0 °C)
		K	-200 °C = TS = -100 °C	± (0.05 % of reading + 2.0 °C)
			-100 °C < TS = 1370 °C	± (0.05 % of reading + 1.0 °C)
		E	-200 °C = TS = -100 °C	± (0.05 % of reading + 2.0 °C)
			-100 °C < TS = 800 °C	± (0.05 % of reading + 1.0 °C)
		T	-200 °C = TS = -100 °C	± (0.1 % of reading + 1.5 °C)
			-100 °C < TS = 400 °C	± (0.1 % of reading + 0.5 °C)
		J	-200 °C = TS = -100 °C	± 2.7 °C
			-100 °C < TS = 100 °C	± 1.7 °C
			100 °C < TS = 1100 °C	± (0.05 % of reading + 1.0 °C)
		N	0 °C = TS = 1300 °C	± (0.1 % of reading + 1.0 °C)
		W	0 °C = TS = 2000 °C	± (0.1 % of reading + 1.5 °C)
		Reference Junction Compensation (R.J.C.) accuracy: ± 0.5 °C *3
		RTD	Measurement range	Driving current	Accuracy
		Pt100	-200 °C to 850 °C (FS = 1050 °C)	1 mA	± 1.0 °C
		JPt100	-200 °C to 500 °C (FS = 700 °C)	1 mA	± 0.8 °C
		Pt1000	-200 °C to 500 °C (FS = 700 °C)	0.2 mA	± 0.8 °C
R.J. Compensation			Selecting of the internal or external
A/D Converter			Sigma-Delta type, 16 bits (effective resolution: 1/40000 of measuring full range)
Stability with temperature	Gain		0.01 % of F.S./°C
	Zero *4		0.02 % of F.S./°C
Input impedance			1 MΩ ± 5 %
Maximum input voltage	Between (+) / (-) terminal		60 V p-p
	Between channels		60 V p-p
	Between channel / GND		60 V p-p
Maximum voltage	Between channels		350 V p-p (1 minute)
Between channel / GND			350 V p-p (1 minute)
Isolation	Between input / GND		Min. 50 MO (at 500 V DC)
Common-mode rejection ratio			Min. 90 dB (50/60 Hz, Signal source impedance: Max. 300 O)
Filter			Off, 2, 5, 10, 20, 40 (Moving average in selected number. When the sample is longer than 5 seconds, the data sampled in the sub-sample (5 seconds) will be used for creating the average value. )
5V output			Driving the humidity sensor B-530, 1 channel
External dimensions (W×D×H)			49 x 136 x 160 mm (Excluding projection)
Weight			Approx. 770 g

VOLTAGE MODULE SPECIFICATIONS
Voltage module specifications		Voltage	High Speed Voltage
Model number		GL7-V	GL7-HSV
Number of input channels		10 channels	4 channels
Input method		All channels isolated unbalanced input, Simultaneous sampling, Screw terminal	All channels isolated unbalanced input, Simultaneous sampling, BNC connector
Sampling speed (interval)		1 k Samples/s to 1 Sample/h (1ms to 1h)	1 M Samples/s to 1 Sample/h (1µs to 1h)
Measurement range		100, 200, 500 mV,1, 2, 5, 10, 20, 50, 100 V, and 1-5 V/F.S.
Measurement accuracy*5		± 0.25 % of F.S.
A/D Converter		Successive Approximation type, 16 bits (effective resolution: 1/40000 of measuring full range)
Stability with temperature	Gain	0.01 % of F.S./°C
	Zero	0.02 % of F.S./°C
Input impedance		1 MO ± 5 %
Maximum input voltage	Between (+) / (-) terminal	100mV to 1V range: 60 V p-p, 2V to 100V range: 100 V p-p
	Between channels	60 V p-p
	Between channel / GND	60 V p-p
Maximum voltage	Between channels	1000 V p-p (1 minute)
	Between channel / GND	1000 V p-p (1 minute)
Isolation	Between input / GND	Min. 50 MO (at 500 V DC)
Common-mode rejection ratio		Min. 90 dB (50/60 Hz, Signal source impedance: Max. 300 O)
Frequency response		DC to 1 k Hz (at +1/-3 dB)	DC to 2 k Hz (at +1/-3 dB)
Filter (Low pass)		Off, Line(1.5Hz), 5, 50, 500 Hz (-3dB, 6dB/oct)	Off, Line(1.5Hz), 5, 50, 500, 5k, 50k Hz (at -3dB, 6dB/oct)
External dimensions (W×D×H)		49 x 136 x 160 mm (Excluding projection)
Weight		Approx. 840 g	Approx. 740 g

LOGIC/PULSE MODULE SPECIFICATIONS
Model number		GL7-L/P
Number of input channels		16 channels
Input method		All channels common ground, simultaneous sampling, Circular connector (4ch/connector)
Sampling speed	Logic mode	Up to 1 M Samples/s (1µs interval)
	Pulse mode	Up to 10 k Samples/s (100µs interval)
Measurement mode		Selecting of the Logic input mode or Pulse input mode *6
Mode	Pulse	Rotation count (RPM), Accumulating count, Instant count
Rotation count (RPM)	Function	Counting the number of pulses per sampling interval and then it is converted to RPM
	Range	50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M rpm/F.S.
Accumulating count	Function	Accumulating the number of pulses from the start of measurement
	Range	50, 500, 5 k, 50 k, 500 k, 5 M, 50 M, 500 M counts/F.S.
Instant count	Function	Counting the number of pulses per sampling interval (count is reset at each sampling)
	Range	50, 500, 5 k, 50 k, 500 k, 5 M, 50 M, 500 M counts/F.S.
Max. input frequency		1 M Hz
Max. number of count		15 M counts (24 bits counter is used)
Input signal	Voltage range	0 to +24 V (common ground)
	Signal type	Contact (Relay), Open collector, Voltage
	Threshold	Approx. 2.5 V
	Hysteresis	Approx. 0.5 V (2.5 V to 3 V)
Filter		Off or On (-3 dB at 50 Hz)
External dimensions (W×D×H)		49 x 136 x 160 mm (Excluding projection)
Weight		Approx. 700 g

^*1	Using optional humidity sensor (B-530).
^*2	Subject to the following conditions; Room Temperature is 23°C ±5°C When 30 minutes or more have elapsed after power was turned on. Filter is set to 10. Sampling rate is set to 1s with 10 channels. GND terminal is connected to ground.
^*3	Wire size of thermocouple to use is 0.32mm in T type, 0.65mm in other type.
^*4	It is effective when the 10, 20, 50ms sampling is used. When the sampling is slower than 100ms, it is not effective by executing the Zero calibration periodically.
^*5	Subject to the following conditions; Room Temperature is 23°C ±5°C. When 30 minutes or more have elapsed after power was turned on. Filter is set to Line (1.5 Hz). Sampling rate is set to 1s. GND terminal is connected to ground
^*6	The measuring mode is set in each module (16 channels). When the module is used in the Logic, up to 7 modules can be attached to one main module. (max. 112 ch) When the module is used in the Pulse, up to 2 modules can be attached to one main module. (max. 32 ch) The amplifier module can be attached to up to 10 modules. The maximum number of channels is limited to up to 112 channels.

Tech Specs

Dataloggers / Data Acquisition/Data Recorders Template
Type (Recorders)	DAQ System
Style (Recorders)	Behind Panel / DIN Rail Mount, Bench / Portable
# Channels Expanded plus Logic (Recorders)	112 EA
# Channels Base Unit (Recorders)	0 EA
Display (Recorders)	Built-in, Optional Purchase, Remote Mount
# Logic / Digital Channels (Recorders)	16
Sampling Interval (Controllers/Recorders)	1 uS (0.001 ms)
Sampling Frequency (Recorders)	1 MS/S
Input Types (Controllers/Recorders)	Digital / Logic / On-Off, Frequency / Pulse, T/C - RTD, Voltage
Output Types (Controllers/Recorders)	Relay
Bits	16
Power Source	AC Line
Screen Size	5.7 IN
Special Functions (Recorders)	External Trigger, Logic / Ladder / Math, PC Software Available, Software / Visible Alarms
Data storage	Yes
# Data Points	2000000
Isolated Inputs (Recorders)	Yes
Test Equipment General Attributes
Unique Features	The new generation data acquisition unit - GL7000 - is a latest standalone data capturing and monitoring solution for your quality development in High Voltage (GL7-HV), High Speed (GL7-HSV), Acceleration (GL7-CHA), Strain (GL7-DCB) and output (GL7-DCO) modules. MAX sampling time is 1µs and recording hours can be unlimited using the SSD module (GL7-SSD) - Modular expansion ability up to 10 amplifier modules per main unit - GL7000. - Additional Sync Cable allows up to 5 modules to be synched via the data platform (without the use of PC). - PC sync ability reaches up to 10 units to be connected via a USB HUB or LAN cable. - Large 2GB internal flash memory.
Warranty	12 MONTHS (1 YEARS)
Safety Approval	CE
Interfaces I/O	LAN / Ethernet, Web Host / Web Server, Analog Input , Remote Sense, USB
Storage	Hard Drive, SD Card
Product Weight	2.2 KILOS (4.85 LBS)
Product Height	5.55 IN Product Height 141mm
Product Length	6.30 IN Product Length 160mm
Product Width	7.60 IN Product Width 193mm
Shipping Weight	8 LBS
Data Logging	Yes
ECCN Number	EAR99
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	Japan
Shipping Height	13 IN
Shipping Length	11 IN
Shipping Width	10 IN

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

Graphtec GL7000-V-BUNDLE GL7000 Main Unit, GL7-DISP Display, and 1 GL7-V Voltage Input Module

Recommended for you

GL7000-V-BUNDLE GL7000 Main Unit, GL7-DISP Display, and 1 GL7-V Voltage Input Module.

Modular system allows expansion of measurements, channels and internal memory

Suitable for a variety of measurements by different type of amplifier

Easy operation via optional 5.7" HD touchscreen display

Graphtec GL7000-V-BUNDLE GL7000 Main Unit, GL7-DISP Display, and 1 GL7-V Voltage Input Module

The module can be expanded to accommodate a wide variety of measurements

Modular system allows expansion of measurements and channels

Require more channels

Suitable for a variety of measurements by different type of amplifier module

Suitable for a variety of measurements due to flexible module combinations

Voltage Module

Voltage/Temperature Module

High Speed Voltage Module

Logic/Pulse Module

Multiple storages for reliable long term measurement

1. Built-in RAM

2. Built-in Flash memory

3. SD memory card

4. SSD module (64GB)

FTP client function

Easy operation with large display and touch panel

Improved ease-of-use with the high-definition display and touch panel

Large easy-to-read 5.7-inch high-definition LCD monitor

Support stand-alone operation and embedding into a system

The detachable display module allows both stand-alone and embedded system configurations

High performance application software

Software for high performance and easy operation

Various measurement screens

Multi-window function, measured waveform can be displayed in various forms using multiple windows

Useful functions

Tech Specs

Dataloggers / Data Acquisition/Data Recorders Template

Test Equipment General Attributes

0

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
