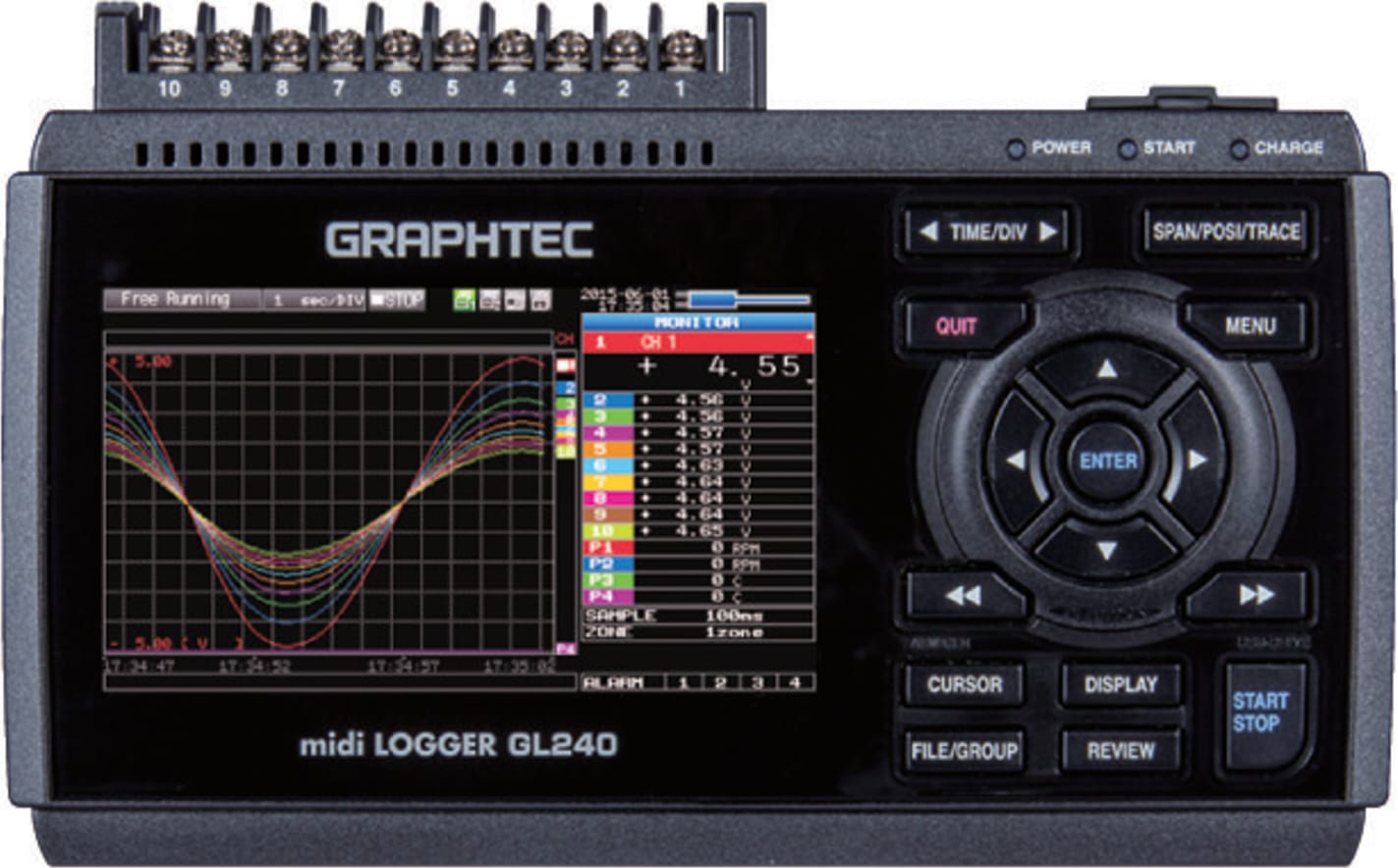

| Number of analog input channels |
10 channels |
External input/
output *1 |
Input *2 |
Trigger or Sampling (1 channel), Logic/Pulse (4 channels) |
| Output *3 |
Alarm (4 channels) |
| Sampling interval |
10 ms to 1 hour (10ms to 50ms: voltage only) *4, External signal |
| Time scale of waveform display |
1sec. to 24 hour /division |
Trigger,
Alarm function |
Trigger action |
Start or stop capturing data by the trigger |
| Repeat action |
Off, On (auto rearmed) |
| Trigger source |
Start: Off, Measured signal, Alarm, External, Clock, Week or Time
Stop: Off, Measured signal, Alarm, External, Clock, Week or Time |
| Condition Setting |
Combination: OR or AND
Analog signal: Rising (High), Falling (Low), Window-in, Window-out
Logic signal: Pattern (combination of each input signal in high or low)
Pulse (number of count): Rising (High), Falling (Low), Window-in, Window-out |
| Alarm output |
Outputs a signal when alarm condition occurs in the input signal *5 |
Pulse input
function |
Rotation count
(RPM) |
Counts the number of pulses per sampling interval and converts to rpm
(rotations per minute), Number of pulses for one rotation may be set to
50, 500, 5000, 50k, 500k, 5M, 50M, 500M rpm/F.S. (rpm./Full Scale) |
Accumulating
count |
Accumulates the number of pulses from the start of measurement
50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale) |
| Instant count |
Counts the number of pulses per sampling interval
50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale) |
Calculation
function |
Between channels |
Addition, Subtraction, Multiplication, and Division for analog input |
| Statistical |
Select two calculations from Average, Peak, Maximum, Minimum, RMS |
| Search function |
Search for analog signal levels, values of logic or pulse or alarm point
in captured data |
| Interface to PC |
USB (Hi-speed), WLAN (using B-568 option) |
Storage
device |
Media |
4 GB Internal Memory
SD memory card (Support SDHC, up to 32 GB). Memory card not included |
| Saved contents |
Captured data, Setting conditions, Screen copy |
| Capturing mode |
Mode: Normal, Ring, Relay
Ring: Saves most recent data (Number of captured data: 1000 to 2000000 points) *7
Relay: Saves data to multiple files without losing data until data capturing is stopped |
| Replay Data |
Replays captured data that was saved in the GL240 (in BGD or CSV format) |
| Scaling (Engineering unit) function |
Measured value can be converted to the specified engineering unit
• Analog voltage: Converts using four reference points (gain, offset)
• Temperature: Converts using two reference points (offset)
• Pulse count: Converts using two reference points (gain) |
| Action during data capture |
• Displaying parst data (using dual display mode (Current + Past data))
• Hot-swapping the SD memory card
• Saving data in between cursors |
| Display |
Size |
4.3-inch TFT color LCD (WQVGA: 480 x 272 dots) |
| Language |
English, French, German, Chinese, Korean, Russian, Spanish, Japanese |
| Information *8 |
Waveform in Y-T with digital values, Waveform only, Digital value, Digital values
and statistics values |
| Operating environment |
0 to 45 ºC, 5 to 85 % RH (non condensed)
(When operating with battery pack 0 to 40 ºC, charging battery 15 to 35 ºC) |
| Power source |
AC adapter |
100 to 240 V AC, 50/60 Hz (1 pc of adapter is attached as standard accessory) |
| DC power |
8.5 to 24 V DC (DC drive cable (option B-514) is required) |
| Battery pack |
Mountable battery pack (battery pack (option B-517): 7.2V DC, 2900mAh) |
| Power consumption *9 |
Max. 36 VA |
| External dimensions (W x D x H) |
Approx.188 x 117 x 42 mm (Excluding projections) |
| Weight *10 |
500 g |
