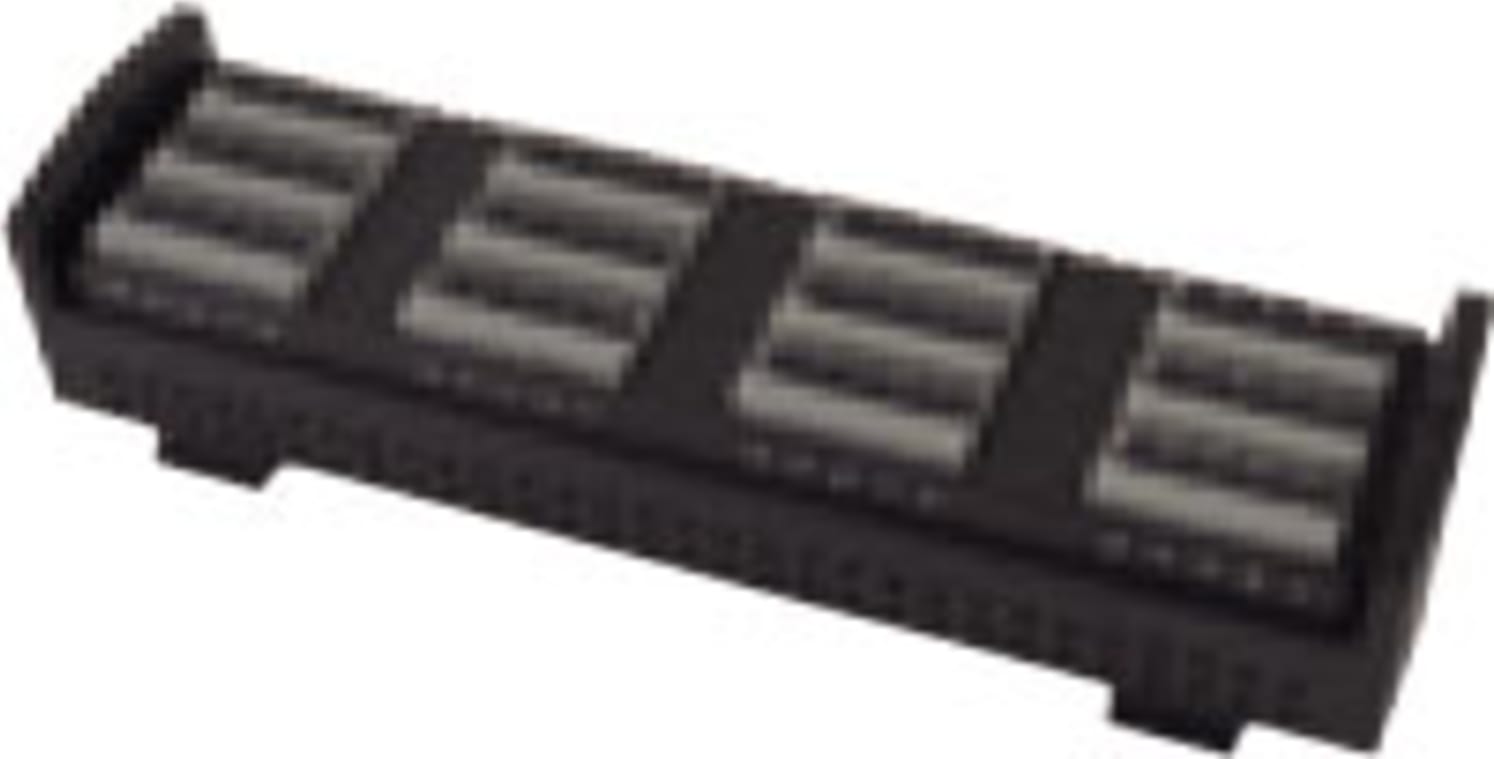

Graphtec B-564SL - Analog Input terminal

Name: Graphtec B-564SL - Analog Input terminal
Brand: Graphtec
SKU: GraphtecB-564SL
Price: 425.00 USD
Availability: InStock

0 reviews | Model: Graphtec B-564SL

Compare

Analog Input terminal

View Product Details

Your Price: $425.00

In Stock:

Recommended for you

General Specifications
Number of analog channels	20ch
Input terminal type	Screwless terminal
Input method	Photo MOS relay scanning system. All channels isolated balanced input * Terminal b to be used to connect the Resistance bulb is shorted within all channels.
Sampling speed	10msec to 1 hour depending on configuration
Measurement range
Voltage	20・50・100・200・500mV, 1・2・5・10・20・50・100V, 1-5V F.S. (Full Scale)
Temperature	Thermocouple: K・J・E・T・R・S・B・N・C (WRe5-26) RTD (Resistance Temperature Detector): Pt100・JPt100・Pt1000 (IEC751) Temperature range: 100 ° C, 500 ° C, 2000 ° C (Fahrenheit: 150 ° F, 750 ° F, 3000 ° F)
Humidity	0 to 100 % (using the humidity sensor (option B-530))
A/D converter	Sigma-Delta type, Resolution: 16-bit (effective resolution: 1/40000 of the +/- range)
Maximum input voltage
Between (+) / (-) terminal	20 mV to 2 V range: 60 Vp-p, 5 V to 100 V range: 110 Vp-p
Channels ((-) / (-))	60Vp-p
Channel / GND	60Vp-p
Filter (moving average basis)	Off, 2, 5, 10, 20, 40
Operating environment	-20 to 60 ºC (5 to 85%R.H.)
