The SecuTest SIII+ and the SecuLife ST are universal test instruments for testing the electrical safety of portable electrical equipment in commercial, residential, and medical applications operating at 120V/60Hz or 230V/50Hz.
The SecuTest SIII+ and SecuLife ST have the same basic functionality, with the SecuLife ST adding features specific to medical testing, such as testing up to 10 application parts and test sequences per IEC 60601.
In order to evaluate electrical safety, tests are performed for protective conductor connections, insulation resistance, and leakage current. Individual tests can be performed manually, or testing can be automated by using built-in test sequences that are in accordance with widely accepted international standards
SecuLife STHV Testing of Electrical Medical Appliance
Test Instrument with Test Sequences per EN 62353, EN 60601, EN 61010, EN 60335, EN 60950, VDE 0701-0702

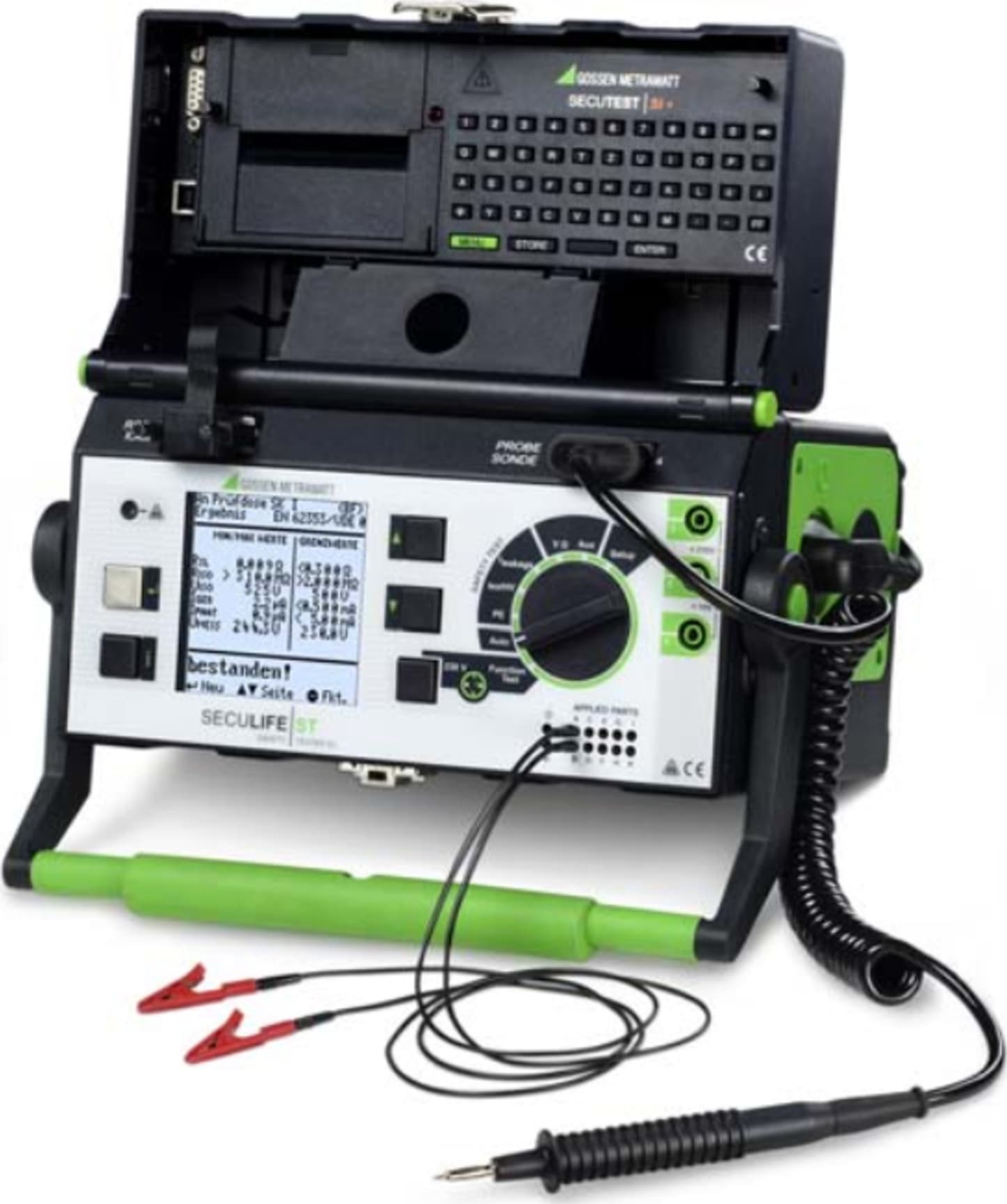

As a multifunctional test instrument, the SECULIFE ST is ideally suited for performing and documenting measurements at medical devices. It allows for precision testing of portable medical devices, and can also be used for large devices such as X-ray equipment and MRI scanners.
The SECULIFE ST is the only measuring instrument available on the market which has been designed to test medical devices operated with 3-phase electrical current. The three-phase current adapters AT3-IIIE and AT3-IIS 3-phase current adapters can be furnished to this end as optional accessories.
Applications
Testing for the Electrical Safety of Electrical Equipment in Accordance with BGV A3
The test instrument can be utilized for quick and safe testing of repaired or modified electrical devices and as well as for periodic testing in accordance with DIN VDE 0701-0702:2008.
The following are measured in accordance with the standards:
- Protective conductor resistance
- Insulation resistance
- Protective conductor current for SC1 devices
- Contact current for SC2 devices
- Absence of voltage at exposed conductive parts (= contact current)
Measuring methods for leakage current measurements:
- Direct measurement
- Equivalent leakage current
- Residual current
Testing for the Electrical Safety of Electrical Medical Devices in Accordance with the German Medical Product Law (MPG) and the associated Operator’s Regulations
The test instrument with feature KA01 is used for quick and safe testing and measurement of repaired or modified electrical medical devices or their components (e.g. patient ports) in accordance with IEC 62353/DIN EN 62353 (VDE 0751) and EN 60601. Observance of technical safety requirements allows the user of the test instrument to operate electrical medical devices in a hazard-free fashion. The safety of the patient is also assured through the use of tested electrical medical devices.
The following are measured in accordance with IEC 62353 (VDE 0751-1) regulations:
- Protective conductor resistance
- Insulation resistance
- Equivalent device leakage current
- Equivalent patient leakage current
- Device leakage current
- Patient leakage current (AC/DC portions are measured separately)
Measuring methods for leakage current measurements:
– Direct measurement
– Equivalent leakage current
– Residual current
A software upgrade (optional) allows for measurement in accordance with EN 60601 regulations, see features on page 6 (with the following single-fault conditions: voltage at application part, interrupted neutral and interrupted protective conductor, with automatic polarity reversal L-N)
- Protective conductor resistance
- Insulation resistance
- – L and N connected to protective conductor
- – Application parts connected to protective conductor
- Earth leakage current, housing leakage current, patient leakage current, patient auxiliary current
The following additional test conditions can be selected:
- Interrupted operational earth and equipotential bonding
- Housing to ground, application parts to ground
Function Test with Power Analysis
(also suitable for high power devices under test up to 16 A)
The device under test can be subjected to a function test with mains voltage via the integrated test socket. The following are measured or automatically calculated during the function test:
- Line voltage
- Residual current
- Power consumption
- Active and apparent power
- Power factor
- Electrical energy
- On-time
Multimeter Functions
Extensive multimeter functions including temperature measurement expand measuring options for the user in a sensible fashion.
The following individual measurements can be performed:
- Direct and alternating voltage (momentary and min/max values)
- Resistance
- Voltage against PE, e.g. phase detection
- Current and protective conductor resistance with clip-on meter (accessory)
- Temperature with Pt100 or Pt1000 (accessory)
High-Voltage Test with Direct Voltage (SECULIFE ST HV)
The mains plug of the device under test (safety class I and II devices) is connected to the test socket at the test instrument. The test instrument monitors the mains connection. Incorrect or dangerous mains connection is indicated, and measurement is disabled in the event of danger.
Use of the test instrument for high-voltage testing is trouble-free because DIN VDE 0104 does not apply. The high-voltage test is performed with direct voltage. In order to comply with requirements for alternating voltage, testing is performed with 1.5-fold direct voltage. This multiplying factor is applied automatically during testing.
This DC high-voltage test complies with EN 60601 3rd edition/ EN 50106 (VDE 0700 part 500), as well as with other standards.
Report Functions
All values required for electrical device approval reports or device log books (e.g. for ZVEH) can be measured with the test instrument.
All measured data can be documented and archived with the measurement and test report, which can be saved to memory and printed out from a PC.
The measurement and test report substantiates regular maintenance and testing for users of electrical devices. The SECUTEST SI+ module (accessory equipment), a memory with integrated interface and keypad which can be mounted inside the lid of the test instrument, expands the applications range of the test instrument.
- Mains Plug Polarity Reversal
Mains plug polarity need not be reversed manually. Polarity reversal is accomplished internally during the test sequence (except if 3-phase current adapters are used).
of mains connection errors and protection class (I or II). Measurement is automatically disabled in the event of danger.
Menus, setting options, measurement results, instructions and error messages, as well as online help and schematic diagrams for test setups, can all be displayed at the backlit, dot matrix LCD.
- MPG = German medical product law
- BE = Operational earth
- FE = Functional earth
- Menu Driven Test Sequences
Fully automatic or manual
- Selectable Test Current for Protective Conductor Testing (4-pole Measurement)
With 200 mA, 10 A or 25 A test current
By means of insulation resistance or equivalent leakage current measurement or high-voltage test
With measurement of earth, housing or patient leakage current, patient auxiliary current, protective conductor current, contact current, verification of absence of voltage by means of current measurement or device leakage current
- Basic Instrument and Expansion Features
The test instrument can be configured with specific features required for the given application
- Data Interface for PC, Printer and Barcode
The SECUTEST SI+ option expands the basic instrument into a unique data logger with memory and alphanumeric keypad for data entry.
All required reports can be generated, and data can be analyzed and managed with the help of user-friendly WINDOWS software.
