Gossen M580A Megohmmeter / Insulation Resistance Testers - Type: Hand Crank, IR Test Voltage: 100 V, Maximum Insulation Resistance: 1 T Ohms

Name: Gossen M580A Megohmmeter / Insulation Resistance Testers - Type: Hand Crank, IR Test Voltage: 100 V, Maximum Insulation Resistance: 1 T Ohms
Brand: Gossen Metrawatt
SKU: GossenM580A
Price: 2155.00 USD
Availability: InStock

0 reviews | Model: Gossen Metrawatt M580A

Compare

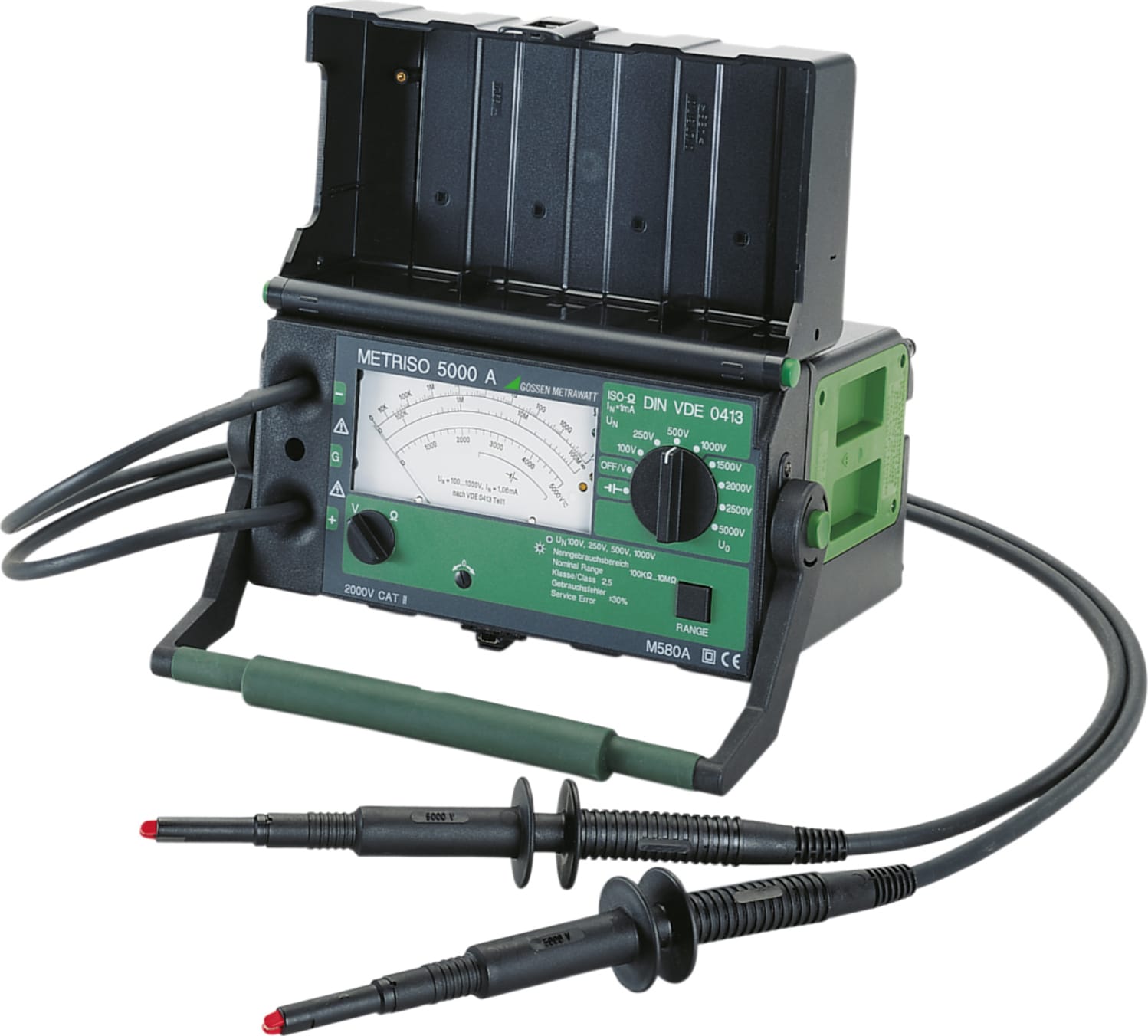

METRISO 5000A Analog Insulaton Tester (Battery Powered)

Broad measuring range from 10k to 1 T
Easy to read logarithmic display
Test voltages: 100 V, 250 V, 500 V, 1000 V, 1500 V, 2000 V, 2500 V, 5000 V
Measurement to 2000 V in accordance with DIN VDE 0413
Measuring range: 100 k to 100 M (1000 V)
Voltage measurement to 2000 V ,
Guard terminal eliminates surface current
5 m extension cable as accessory equipment
Power supply with batteries or hand crank generator (optional)

View Product Details

List Price: $2,155.00

In Stock:

View Payment Options

Recommended for you

The METRISO 5000 A/AK insulation tester complies with regulation IEC 61557/EN 61557/VDE 0413 “Measuring and Monitoring Equipment for the Testing of Electrical Safety in Systems with Nominal Voltages of up to AC 1000 V and DC 1500 V” Part 2, insulation resistance testers.

It is suited for the measurement of insulation resistance for devices and systems in a voltage-free condition with nominal voltages of up to 1000 V. It is also suited for the measurement of insulation resistance of up to 1 TΩ with open-circuit voltages of up to 5000 V.

Additionally, the tester is equipped with a 2000 V measuring range for direct and alternating voltages. This is especially advantageous for the testing of DUTs for the absence of voltage, and for the discharging of capacitive DUTs.

^{_{Equipment METRISO 5000 A}}

1 high-voltage insulation tester with permanently connected measurement cables and test prods,

2 crocodile clips (5 kV version) and plug-in battery module including batteries

1 carrying strap

1 operating instructions

Equipment METRISO 5000 AK

1 high-voltage insulation tester with permanently

connected measurement cables and test prods,

2 crocodile clips (5 kV version) and hand crank generator

1 carrying strap

1 operating instructions

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
IR Test Voltage	1,000 V, 100 V, 2,000 V, 2,500 V, 250 V, 5,000 V, 500 V
Maximum Insulation Resistance	1 T Ohms (1000 G Ohms)
Type	Battery, Hand Crank
Minimum Insulation Resistance	0 Ohms (0 G Ohms)
Variable Incremental Voltage	Yes
Display (Megohmmeter)	Analog
Continuity Test	No
Live Circuit Voltage Detection	Yes
Power Supply	Battery
Timer	Yes
CAT Rating	II
CAT Voltage	1,000 V
Test Equipment General Attributes
Warranty	1 YEARS
Safety Approval	CE
IP Rating	IP52
Product Weight	8 LBS
Product Height	5.5 IN
Product Length	11.5 IN
Product Width	9.9 IN
Shipping Weight	10 LBS
Data Logging	No
ECCN Number	EAR99
Battery Type	D
Power Supply Voltage	Battery Powered
Country of Origin	Germany
Shipping Height	10 IN
Shipping Length	16 IN
Shipping Width	14 IN
