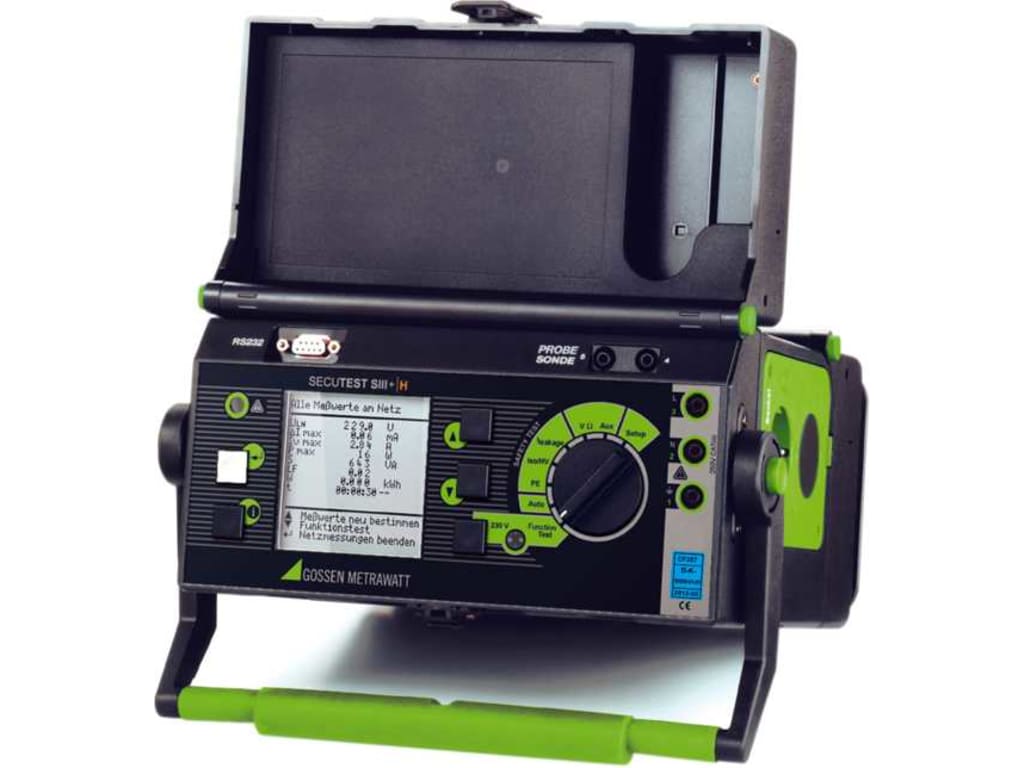

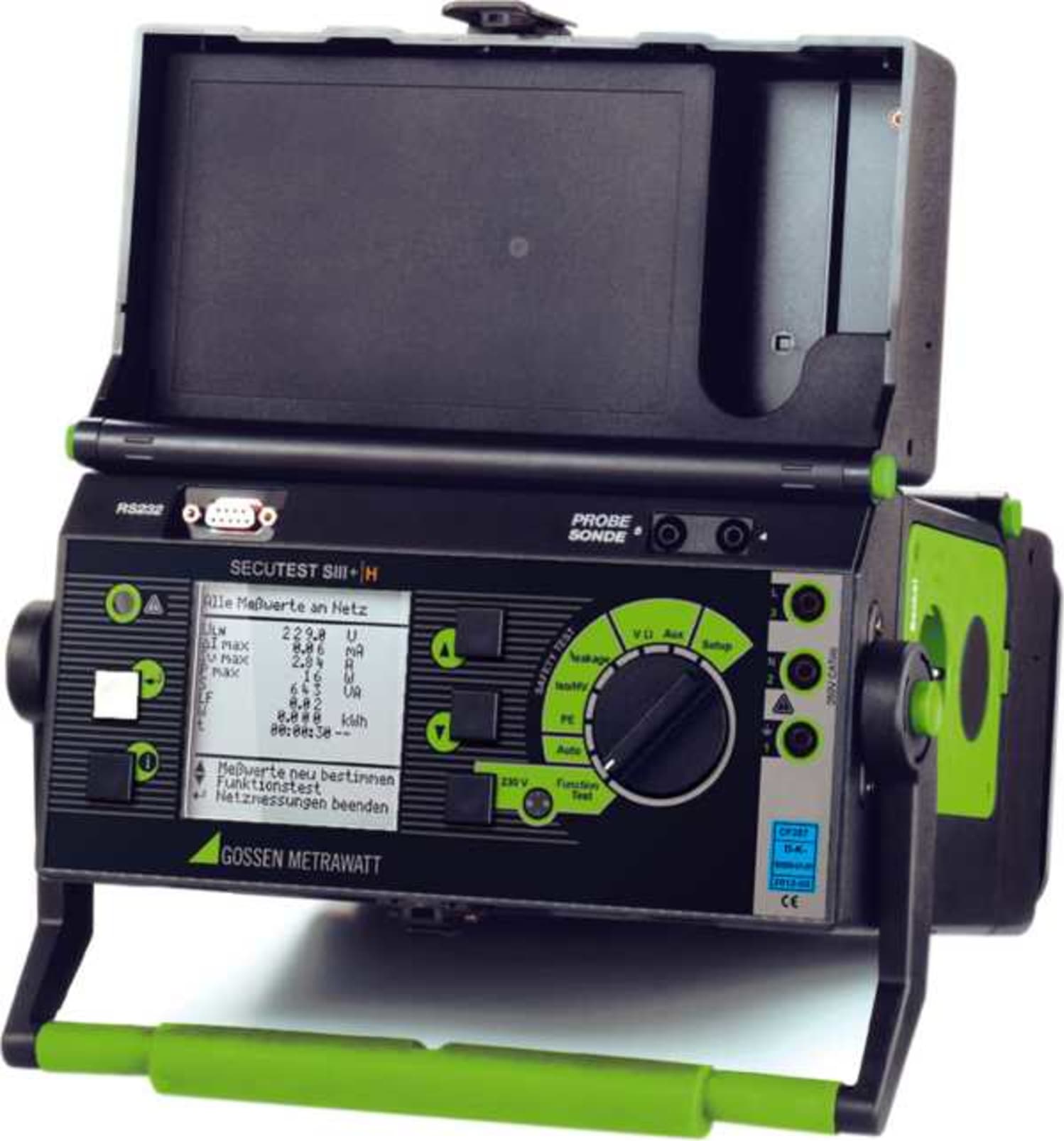

Test Instrument for Portable Commercial and Medical Applications
Universal test instrument for testing the electrical safety of electrical devices in accordance with safety legislation, medical device regulations and Directive 2009/104/EC, as well as testing for final inspection in production.
Options:
- B07: USA Plugs
- C01: English User Interface
- F02: High-voltage test, test voltage max. 6.126 kV DC (B02, B05, B08, B11: max. 1.5 kV)
- G01: 25 A/200 mA, 50/60 Hz
- KB01: Memory for up to 125 tests
- KD01: Automatic R-PE test if probe is connected to PE With (inc. probe SK5 5m)
Universal Test Instrument for Testing the Electrical Safety Of:
- After repair and for periodic testing of electrical devices in accordance with DIN VDE 0701-0702:2008
- After repair and for periodic testing as well as for technical safety checks of electrical medical devices per IEC 62353 (VDE 0751-1) and/or DIN EN 60601 on the basis of the MPG1)
- In The Production Of:
- Electrical measuring, control, and laboratory devices per DIN EN 61010
- Data processing systems per DIN EN 60950
- Electrical medical devices per DIN EN 60601
- Household appliances per DIN EN 60335
The Device Under Test Can Be Connected To:
- The test socket with or without adapter for various types of mains connection
- The connector jacks if the device under test does not have a mains plug
- An adapter for extension cables with or without multiple outlet sockets
- Connection for BE 2) and FE 3)
- 10 application parts can be connected individually or in groups
Mains Plug Polarity Reversal
Mains plug polarity need not be reversed manually. Polarity reversal is accomplished internally during the test sequence (except if 3-phase current adapters are used).
Automatic Recognition
of mains connection errors and protection class (I or II). Measurement is automatically disabled in the event of danger.
Display
Menus, setting options, measurement results, instructions, and error messages, as well as online help and schematic diagrams for test setups, can all be displayed at the backlit, dot matrix LCD.
Insulation Test
By means of insulation resistance or equivalent leakage current measurement or high-voltage test
Leakage Current Test
With measurement of earth, housing or patient leakage current, patient auxiliary current, protective conductor current, contact current, verification of absence of voltage by means of current measurement or device leakage current
