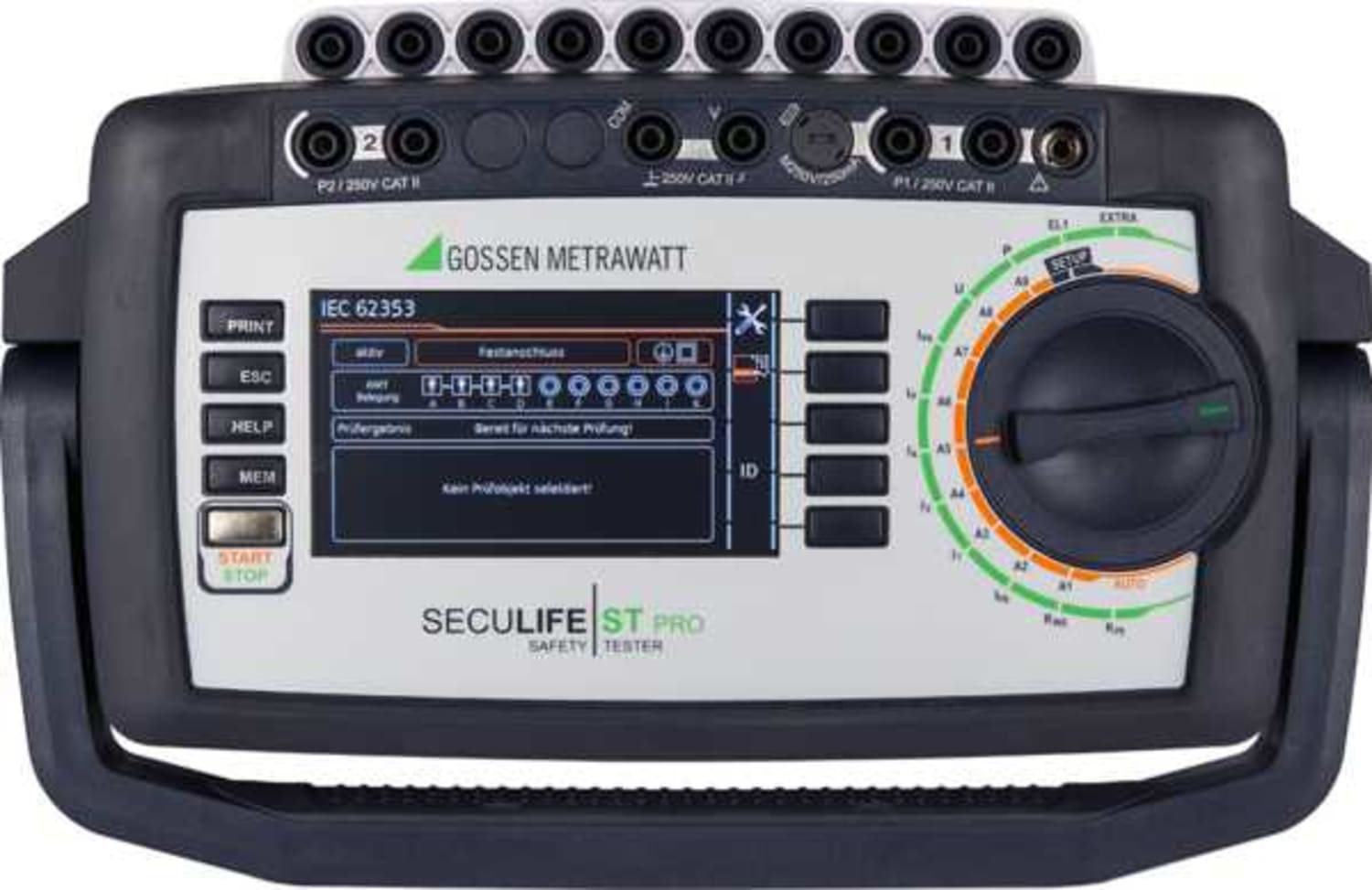

Test Instrument for Measuring the Electrical Safety of Medical Devices with
Options
Preconfigured test sequences for quickly testing operating equipment. One universal, adjustable test sequence. One test sequence executed with individual measurements. Suitable for use by trained persons. Extensive data management and storage concept for test results and individual measurements (up to 50,000 data records) - allocation of measurements/tests to devices and customers. Quick access to measuring and test functions via the double rotary switch, direct selection keys and softkeys. High-resolution, brilliant 4.3" TFT color display. Unique multiple measurement permits convenient recording of several measuring points. Automatic DUT connection and protection category detection. Compact, impact resistant housing with integrated rubber protector. Comprehensive, legally secure preparation of test reports. Interfaces for data entry (two USB A) and data transmission (one USB B). Extensive setting options for international use (language, keyboard, character set, date, time). Testing of various PRCD types such as PRCD-S/PRCD-K (also with protective conductor resistance measurement for variants with switched PE) with integrated “VDE 0701-0702-PRCD” test sequence.
Options:
- B05 USA Plug
- C01 English UI
- E01 Data Entry via Touchscreen
- G01 200mA and 10A R-PE test current for protective conductor measurement
- H01 Connection of A 2nd Test Probe Included
- I01 DVM function (digital voltmeter) with 2 additional measurement inputs, COM-V
- J01 Connection for applied parts
- KA01 IEC 60601 Additional test sequence
- KC01
- KE01 Data transfer to RS232 after each test step in Auto mode
- M01 Bluetooth
- V01
RPE Test with 200 mA or 10 A test current
Applied Parts: 10 configurable connections (4 mm sockets)
Connections for 2nd test probe and voltage measurement
Test Sequences Per IEC 62353 and IEC 60601, and measurements via APP sockets
Single Fault Conditions - adjustable, with and without mains and applied part
Test Conditions - adjustable, data entry via touchscreen
Database Functions permit the creation of a complete test structure with customer or device views
Including SECUTEST DB+ Database Expansions
- Remote Control possible from PC (IZYTRONIQ)
- Additional Database Elements: property, building, floor, and room - in order to better be able to structure comprehensive data - plus additional department and cost center fields
- Multi-print - print-out of several/all test reports (to a connected Z721S thermal printer) which are available for a device under test by pressing just one key
- Create user-defined report templates and manage them in the SECULIFE ST PRO - including company logo
- Export of all data (master data and measured values) as file to USB flash drive
- Import of all test object master data (no measured values) from IZYTRONIQ or from a USB flash drive to the SECULIFE ST PRO
- Create user-defined test sequences in IZYTRONIQ and upload them to the SECULIFE ST PRO
Including SECUTEST DB COMFORT Database Expansions
- New “medical” database object" - device with extended entry options
- Searches started with the “Search All” softkey now search the new “UDI” field (unique device identification) at medical devices as well.
- User-Defined Test Sequences - the number of user-defined sequences has been increased to 24.
- Move test objects - “moving” of (medical) devices within the tree can be initiated by pressing and holding the respective element in the tree display.
- Touch-edit - “editing” of a (medical) device can be started by pressing and holding the respective element of the detail display in the main window.
- Auto-Store - the auto-store function can be activated in the setup menu so that the results of automatic testing are saved immediately under the selected test object.
- Push-Print - a PC connected to the test instrument can cause the SECULIFE ST PRO to enter an operating mode in which data are transmitted directly to the connected PC instead of being stored at the tester.
- Quick Edit - the quick edit option can be activated when entering a new test object so that all other fields can be filled out immediately after entering the ID number.
- New test interval database field (also for synchronization with IZYTRONIQ)
