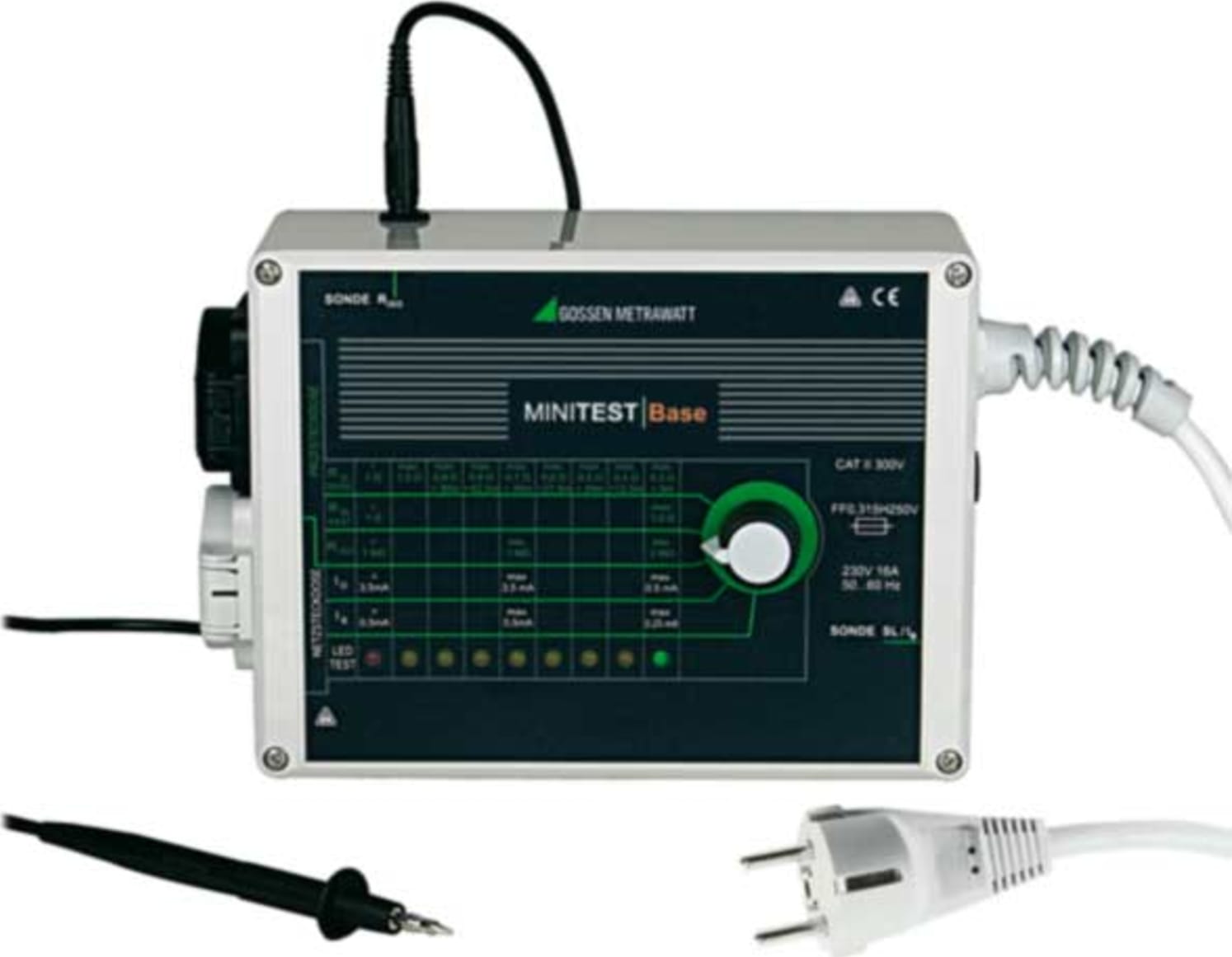

Test Instrument for Testing per DIN VDE 0701-0702 - with CEE Sockets
The test instrument is intended for testing and measuring repaired or modified devices.
Testing electrical safety of electrical equipment per DIN VDE 0701-0702: 2008 by measuring:
- Protective conductor resistance
- Insulation resistance
- Protective conductor current - differential current method
- Contact current - direct measurement method
Convenient Connection
The test instrument is intended for testing and measuring repaired or modified devices. The device under test is connected to the test instrument’s test socket to this end.
When testing protective conductor current and contact current (absence of voltage at exposed, conductive parts), the device under test is connected to the mains outlet on the test instrument.
Display Functions
Limit value violations are indicated optically by means of nine variously colored LEDs.
Rugged Mechanical Design
The handy instrument is furnished with a compact plastic housing with permanently connected mains cable. The respective measured quantity is selected by means of a rotary switch.
PC Analysis Software
The measurement data can be transferred to a PC for onward processing with one of our software packages.
