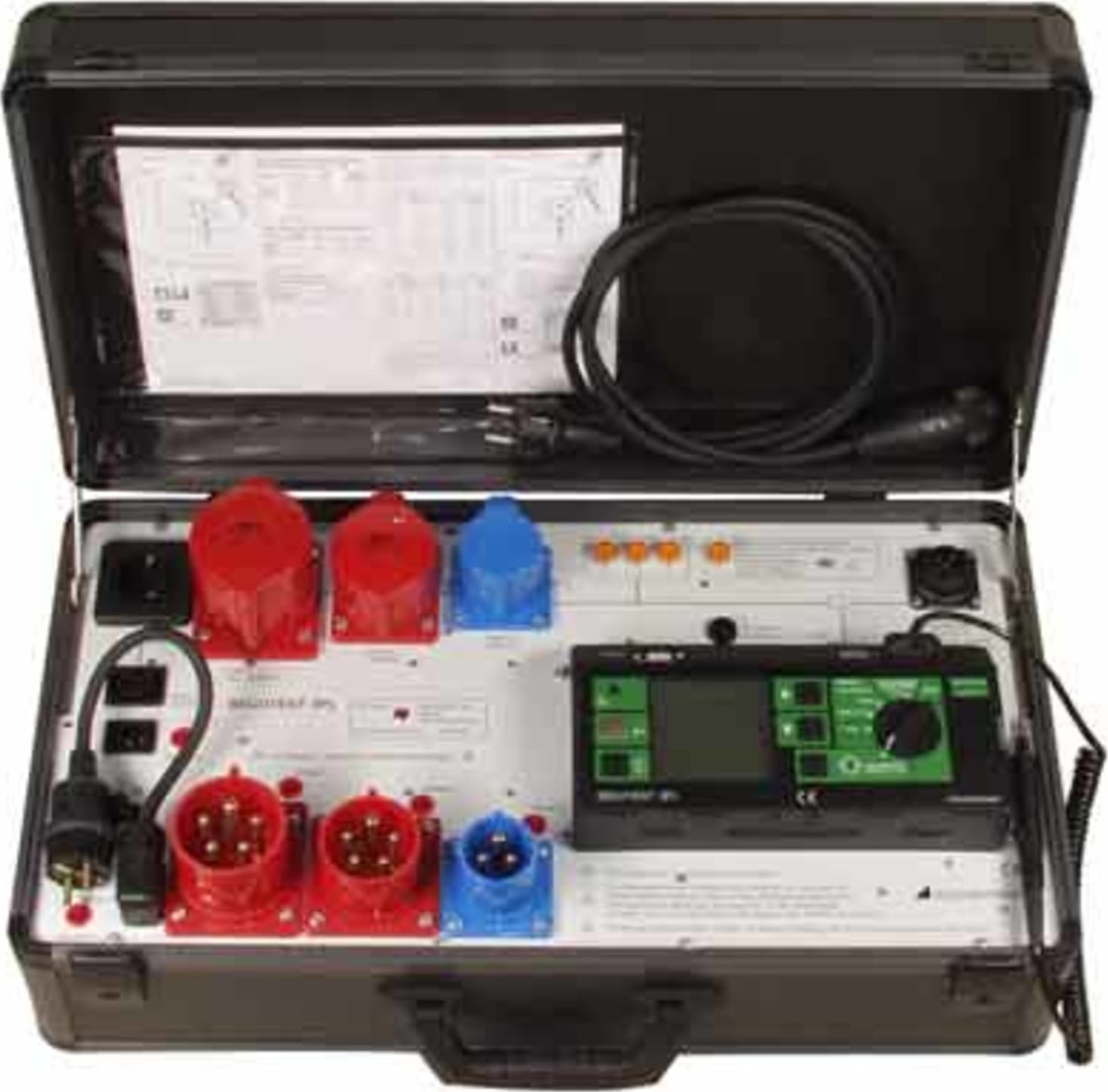

Test Case with Test Sequences at Single and 3-Phase Devices per VDE 0701-0702

Testing electrical safety of electrical equipment per BGV A3
The test instrument is used for fast, safe testing of electrical devices for periodic testing per DIN VDE 0701-0702.

Function test with power analysis for single phase devices under test
The device under test can be subjected to a function test with mains voltage via the integrated single pole earth contact outlet. The function test can be executed immediately after electrical safety testing has been successfully completed. The following are measured or calculated automatically:

• Line voltage
• Differential current
• Current consumption
• Active and apparent power
• Power factor, electrical energy
• Duty cycle

Report generating functions
All of the values required for approval reports or device logbooks for electrical equipment (e.g. per ZVEH) can be measured with this instrument. All measured data can be documented and archived thanks to the measurement and test report which can be printed out via, or stored to a PC.
