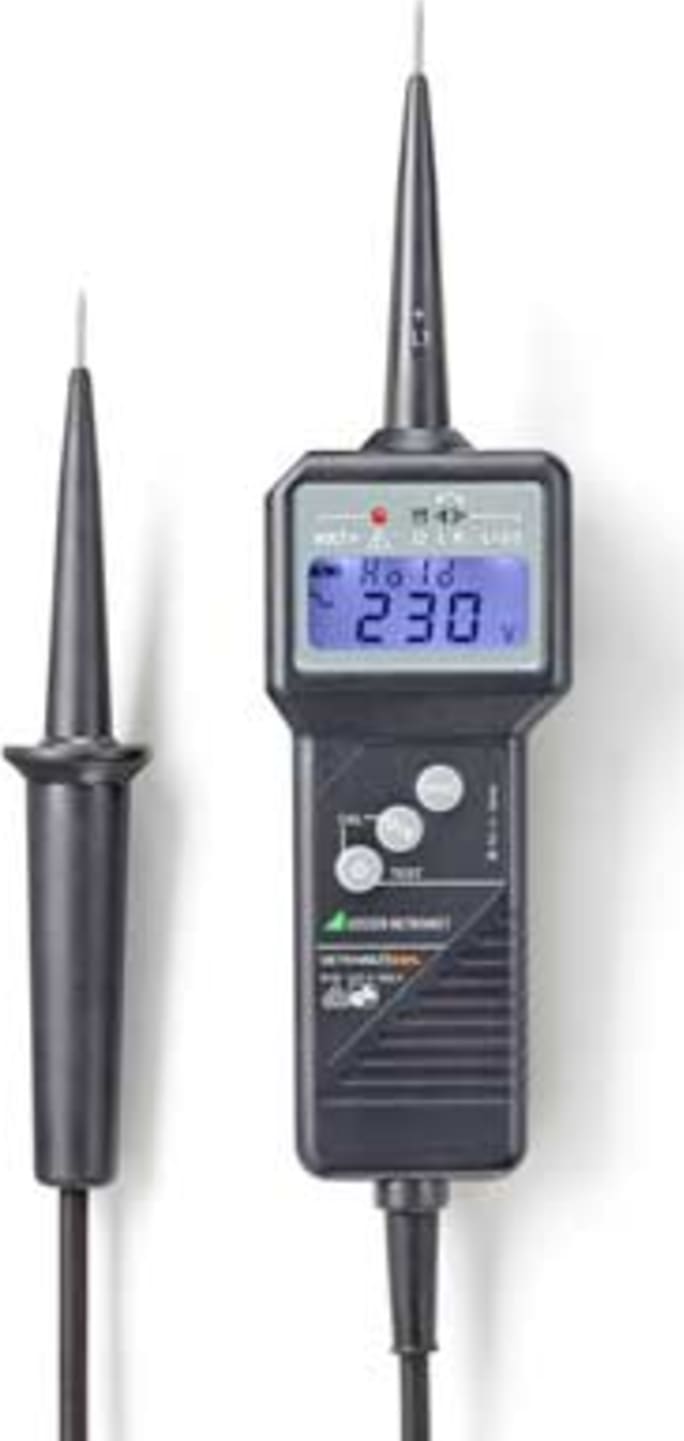

Gossen Metrawatt M630G Voltage and Continuity Tester

Name: Gossen Metrawatt M630G Voltage and Continuity Tester
Brand: Gossen Metrawatt
SKU: GossenM630G
Price: 549.44 USD
Availability: InStock

0 reviews | Catalog: METRAVOLT 12D +L | Model: Gossen Metrawatt M630G

Compare

Voltage, resistance and continuity tester with phase, polarity and phase sequence testing (CAT IV 600 V) ... 1200 V

Voltage test to 1200 V AC and 1500 V DC
Phase and phase sequence indicator
Polarity and continuity test / resistance measurement
CAT IV
IP 65 protection
Illuminated display plus 5 LEDs

View Product Details

Your Price: $549.44

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

LEDs
LV display (round)	red as from 50 V AC and 120 V DC
green square LED Ohm	continuity up to 1999  and diodes
2 triangular LEDs	for phase sequence left/right
Power Supply
Battery	9 V flat block battery zinc-carbon battery per IEC 6 F22, alcaline manganese cell per IEC 6 LR61, or equivalent rechargeable NiMH battery
Electrical Safety
Measurement category	CAT IV 600 V
Test voltage	6 kV
Electromagnetic Compatibility
Interference emission	EN 61236-1:2006 class B
Interference immunity	EN 61236-1:2006
Ambient Conditions
Operating temperature	–10 ... + 55 °C
Relative humidity	max. 85%
Elevation max.	2000 m
Mechanical Design
Protection	IP 65
Dimensions	Test probe with display panel: 62 × 240 × 39 mm
Weight	270 g (including battery)

Tech Specs

Voltage / Continuity and Non-Contact Testers/Voltage and Continuity Testers Template
Type (Voltage Testers)	Contact
Style (Voltage Testers)	Hand Held
Voltage Tested	AC/DC
AC Voltage	1000 VAC
DC Voltage	1500 VDC
Continuity	Yes
Resistance Measurement	Yes
Polarity Indication	Yes
CAT Voltage Rating	IV
CAT Voltage Rating (V)	1000V
Test Equipment General Attributes
Safety Approval	CE
IP Rating	IP65
Product Weight	270 GRAMS (0.595 LBS)
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	Germany
