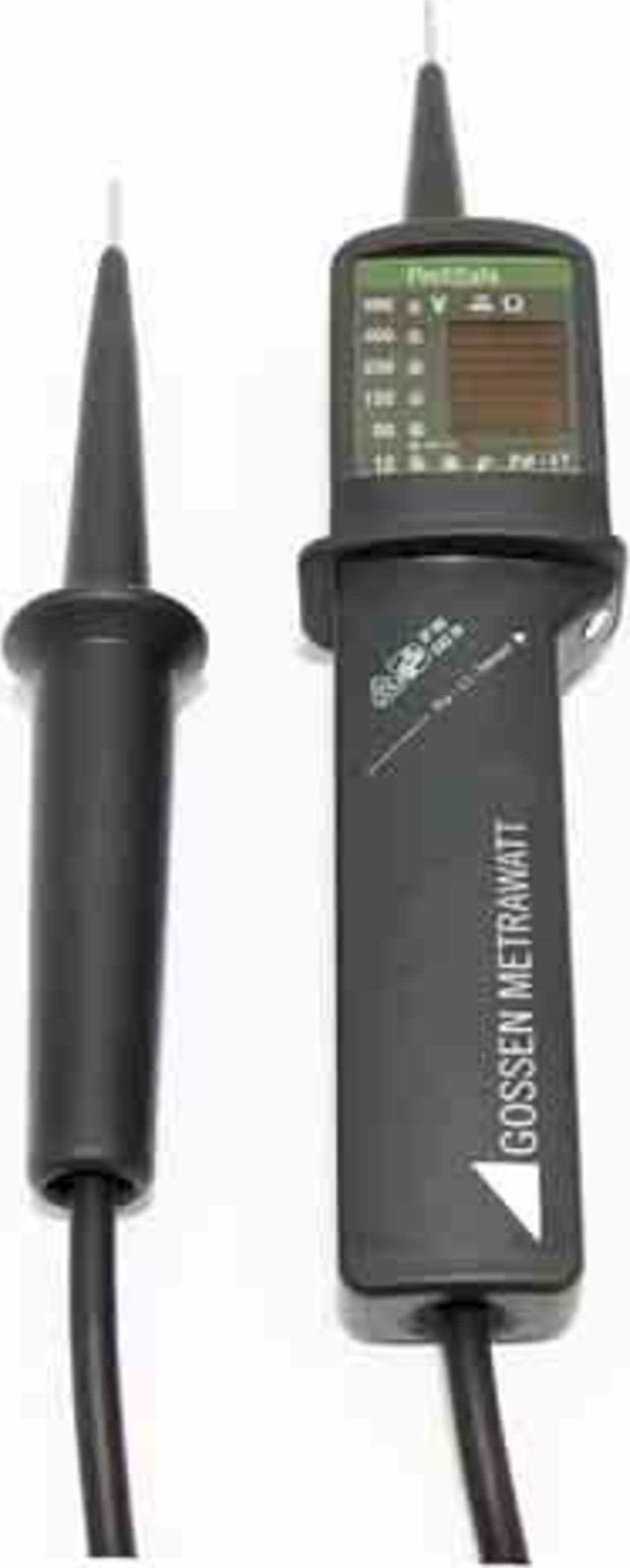

Gossen Metrawatt M630F Voltage Continuity Tester

Name: Gossen Metrawatt M630F Voltage Continuity Tester
Brand: Gossen Metrawatt
SKU: GossenM630F
Price: 104.00 USD
Availability: InStock

0 reviews | Catalog: M630F | Model: Gossen Metrawatt M630F

Compare

Voltage detector, continuity tester, Phase sequence indicator (CAT IV 600V) 24 to 690V AC/DC

Voltage test
Phase test
Polarity test
Phase sequence indication
Continuity test
Rugged housing, safe use even in moist environment, Protection IP 65
Easy to operate, VDE-GS tested
Measuring category CAT IV devices

View Product Details

List Price: $104.00

In Stock:

View Payment Options

Recommended for you

Display	9 LEDs for indicating voltage, voltage type AC/DC and polarity as well as continuity, phase and phase sequence
Nominal voltage range	24 ... 690 V AC/DC in increments of 24, 50, 120, 230, 400, 690 V
Frequency range	0 ... 2000 Hz
Current (Peak value, Is)	3.4 mA at 400 V/690 V
Input resistance	202 kΩ
On-time	30 s
Continuity test	0 ... 500 kΩ
Ambient Conditions
Reference temperature	20 °C
Operating temperatures	–10 ... +55 °C
Electrical Safety
Safety class	II per IEC 61010-1
Overvoltage category	CAT IV per EN 60664-1
Electromagnetic Compatibility EMC
Interference emission/interference immunity	EN 61326
Mechanical Design
Protection	Housing ABS, IP 65
Connecting cable	Rubber insulated flexible cable H07RN-F, 1m
Dimensions	W x L x D: 49 mm x 230 mm x 37 mm
Weight	approx. 170 g

Tech Specs

Test Equipment General Attributes
Unique Features	Voltage-continuity tester 24 ... 690 V
Safety Approval	CE
IP Rating	IP65
Product Weight	170 GRAMS (0.375 LBS)
Product Length	230 MM (9.06 IN)
Product Width	49 MM (1.93 IN)
Battery Type	Li-ion
Power Supply Voltage	Battery Powered
Country of Origin	Germany
