Gossen Metrawatt M522E Memory and Interface Module

Name: Gossen Metrawatt M522E Memory and Interface Module
Brand: Gossen Metrawatt
SKU: GossenM522E
Price: 428.00 USD
Availability: InStock

0 reviews | Model: Gossen Metrawatt M522E

Compare

Same as PROFITEST PSI-BC, without printer

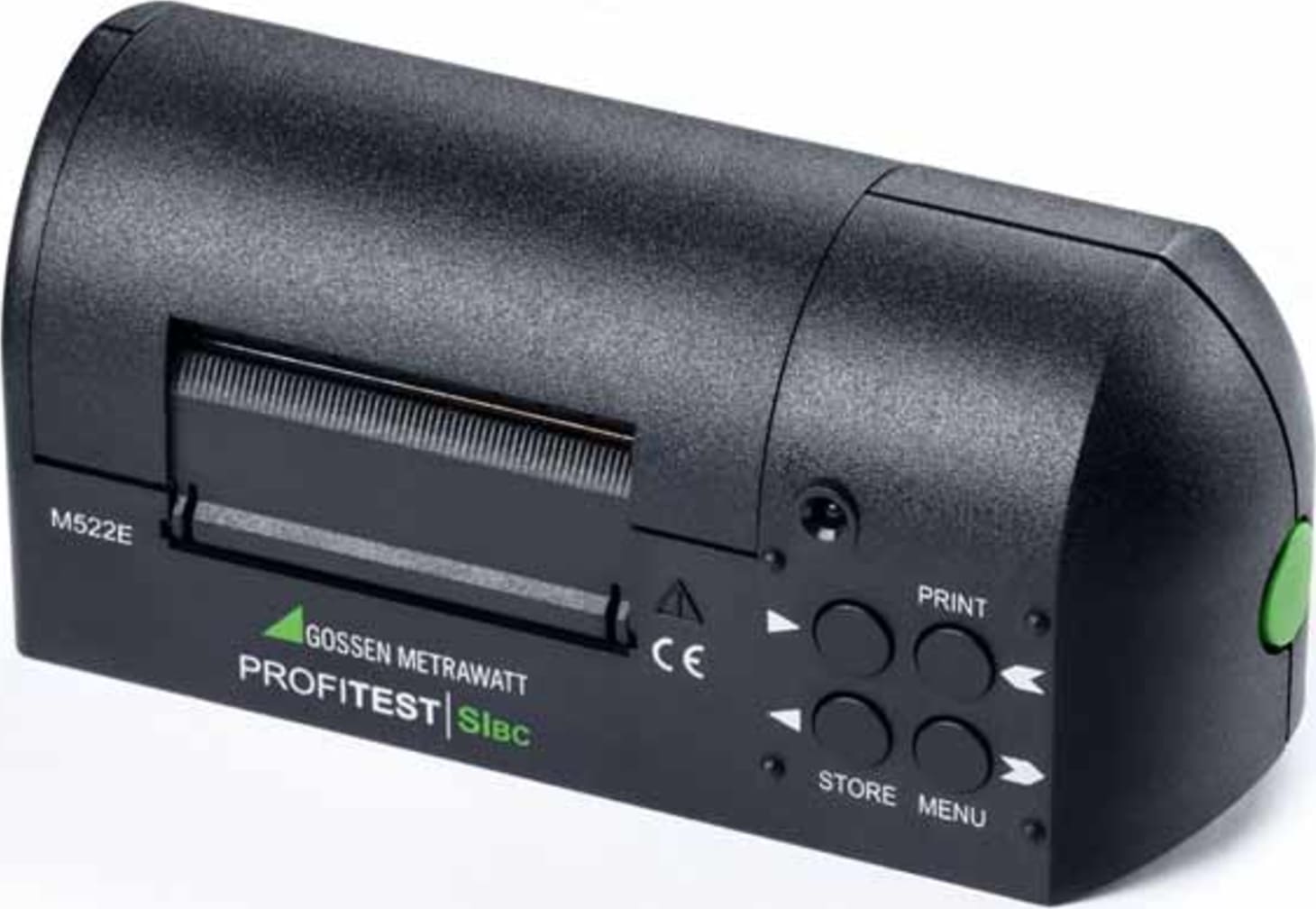

The SI (Storage Interface) module PROFITEST SI-BC is used as an output unit for the test instruments PROFiTEST 0100S-II+ as well as PROFITESTONE and functions simultaneously as a printer, a memory and a data interface.
The SI module can be directly attached and secured to the test instrument with two snap hooks.
Values measured with the test instrument within an electrical circuit are transmitted directly to the SI module with an infrared transceiver diode and stored there to memory.

View Product Details

List Price: $428.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Barcode Scanners

for the Gossen Metrawatt M522E

Gossen Metrawatt Z502F Barcode Scanner for RS 232 Connection (Laser Sensor)

Catalog: Barcode Profiscanner RS 232

(0)

In Stock!

Add to Cart

All measurement data from PROFiTEST ... test instruments can be stored at the PROFiTEST SI-BC, and transferred to a PC with suitable software.

Memory capacity for data from approximately 200 electrical circuits
IRDa interface to the test instrument
RS 232 interface to the PC
Can be connected to a barcode scanner

Data Memory
Storage	32 kByte RAM for 200 electrical circuits
Ambient Conditions
Operating Temperature	0 °C ... +40 °C
Storage Temperature	- 20 °C ... +60 °C, except for batteries
Humidity	max. 75% relative humidity, no condensation allowed
Altitude	max. 2,000 m
Power Supply
Battery Voltage	4.6 ... 6.5 V
Data Buffer	3.5 V
Source	four 1.5 V batteries per IEC LR 6 (alkaline manganese)
Mechanical Design
Housing Protection	IP 20
Dimensions	150 mm x 58 mm x 68 mm
Weight	approx. 0.4 kg with batteries
Data Interface
Type	serial RS232 per DIN 19241
Baud Rate	9600
Parity	none
Data Bits	8
Stop Bits	1
