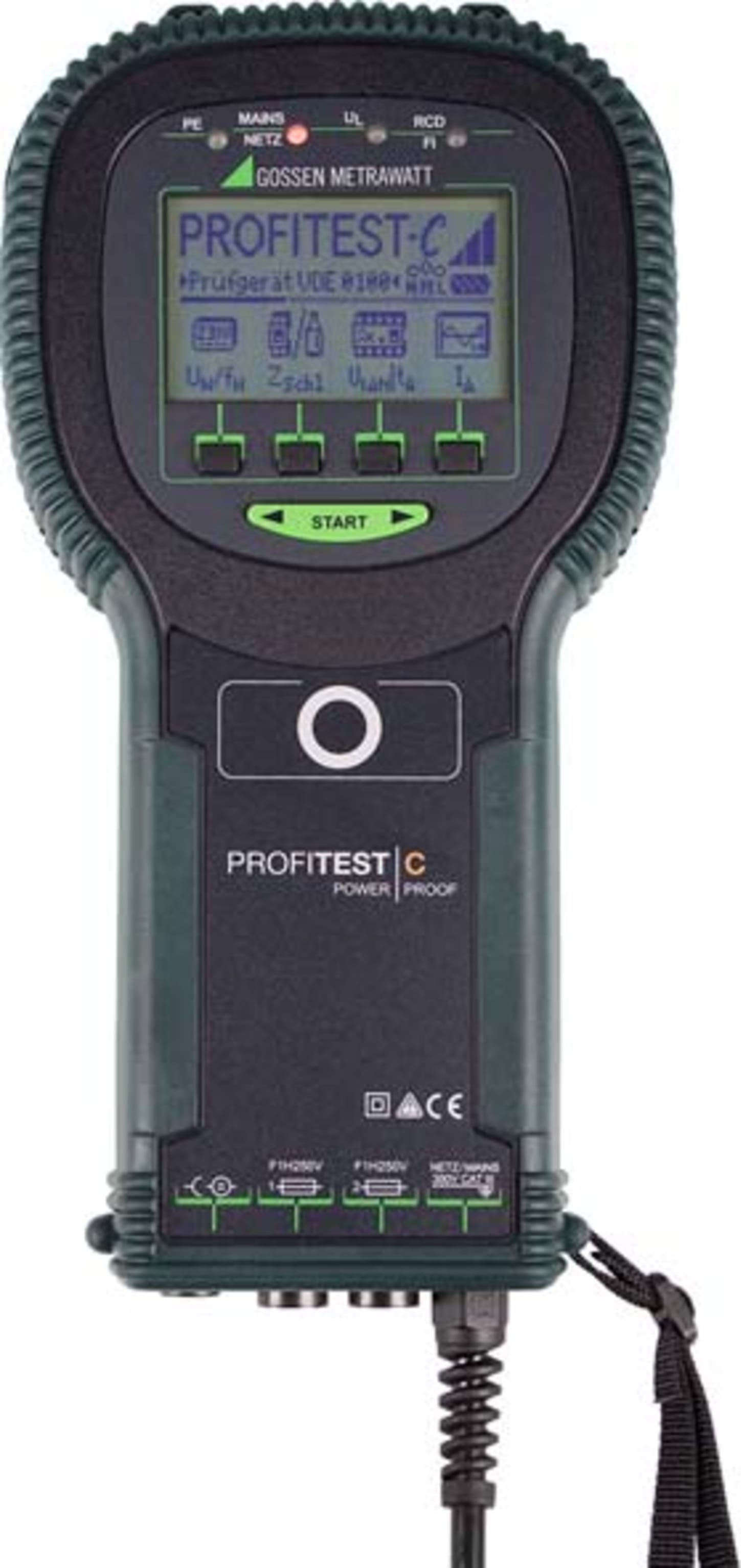

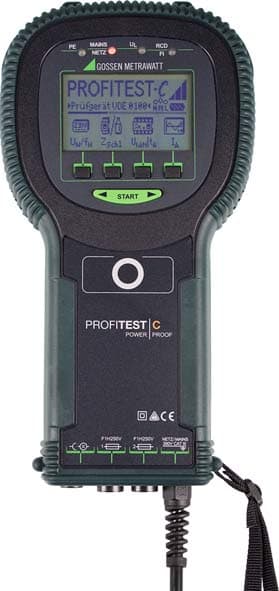

Special Testing for Systems and RCCBs
- Testing for systems and RCCBs
with rising residual, tripping current is displayed
- Testing for RCCBs (10, 30 mA and 100 mA) with 5 • IN
- Tests RCCBs with half-waves in order to determine
contact voltage and tripping current
Special Testing for Systems and RCCBs Testing for Special RCCBs
Measurement of line voltage and frequency, phase angle and sequence
Measurement of loop and earthing resistance
Special Features
- Allowable fuse types are displayed for the system under test.
- Internal measurement value memory with 32 kB capacity stores up to 255 electrical circuits and up to 2000 measurement values.
- Data interface for the transmission of measurement values and for software updates
Voltage and Frequency Ranges
The measuring device allows for use of the test instrument in all alternating and three phase current systems with voltages ranging from 170 to 253 V, and frequencies from 15 to 70 Hz.
Loop Impedance Measurement
Loop impedance measurement can be performed within a range of 170 to 253 V. Subsequent calculation of short-circuit current is based upon the respective line voltage, assuming that the measured line voltage is within the specified range. If line voltage is not within the specified range, short-circuit current is calculated based upon actual line voltage and measured impedance. RCCB tripping can be suppressed for the measurement of loop impedance with the PROFiTESTDC-II accessory device.
Display
The LCD window consists of a backlit dot matrix which is used to display menus, configuration options and measurement results, as well as online help. Various user interface languages can be selected, depending upon the country in which the test instrument is used.
Phase Tester
Protective conductor potential is tested when the finger contact surface is touched. The PE signal lamp lights up if a potential difference of greater than 150 V is detected between the contact surface and the earthing contact at the test plug.
Battery Charge Level Indicator and Device Self-Test
A battery symbol in the main menu with 5 segments ranging from depleted to fully charged keeps the user continuously informed concerning battery charge level. Test patterns can be queried one after the other in the self-test mode, and display LEDs and relays can be tested. The test instrument is switched off automatically if the batteries are depleted, and it includes a charge control circuit for safe charging of commercially available rechargeable NiMH or NiCd batteries.
Sturdy Housing for Rugged Use
Soft plastic jacketing protects the instrument against impacts, or if it is inadvertently dropped.
Signal Lamps
The device recognizes errors in the electrical system automatically, which are indicated with four lamps, (see following table).
| Lamp |
Status |
Meas. Function |
Function |
| PE |
lights up
red |
all |
Device on and potential difference ≥ 100 V
between finger contact and PE (earthing contact),
frequency: f > 45 Hz |
NETZ/
MAINS |
lights up
green |
IΔ / RE / ZLoop |
3-pole connection: line voltage approx. 170 V
to 253 V, measurement enabled |
NETZ/
MAINS |
blinks
green |
IΔ / RE / ZLoop |
2-pole connection (e.g. N conductor not con-
nected): line voltage approx. 170 V to 253 V,
measurement enabled |
NETZ/
MAINS |
blinks red |
IΔ / RE / ZLoop |
Line voltage < approx. 170 V or > 253 V,
measurement disabled |
| UL |
lights up
red |
IΔ |
– Contact voltage UIΔN or UIΔ > 25 V or > 50 V
– Safety shutdown has occurred.^ |
| RE |
– Limit value for RE exceeded |
| RCD/F |
lights up
red |
IΔ |
The RCCB was not tripped, or was tripped too late
during the trip test. |
Data Interface
Measurement data can be read out to a printer or a PC via the integrated IRDA interface, providing the user with 3 advantages.
- Transmission of stored data to a PC for processing and archiving, or for the generation of official reports
- Immediate print-out of all measurement data (via adapter)
Software Updates
The test instrument will never become obsolete thanks to software updates which can be installed via the IRDA interface. Updates can be performed by our service department as part of our re-calibration service, or by the user himself.
| Applicable regulations and Standards |
IEC 61010-1/EN 61010-1/
VDE 0411-1 |
Safety requirements for electrical equipment for
measurement, control and laboratory use |
IEC 61557/ EN 61557/
VDE 0413 |
Part 1: General requirements
Part 3: Loop resistance measuring instruments
Part 6: Devices for testing residual current devices
(RCDs) for correct functioning, and for testing
the effectiveness of protective safety measures
in TT and NT systems
Part 7: Phase sequence indicators |
| VDE 0106-1 |
Protection against electric shock, classification of electric
and electronic equipment |
DIN EN 60529
VDE 0470-1 |
Test instruments and test procedures,
protection provided by enclosures (IP code) |
DIN EN 61326-1
VDE 0843-20-1 |
Electrical equipment for measurement, control and labo-
ratory use – EMC requirements –
Part 1: General requirements |
