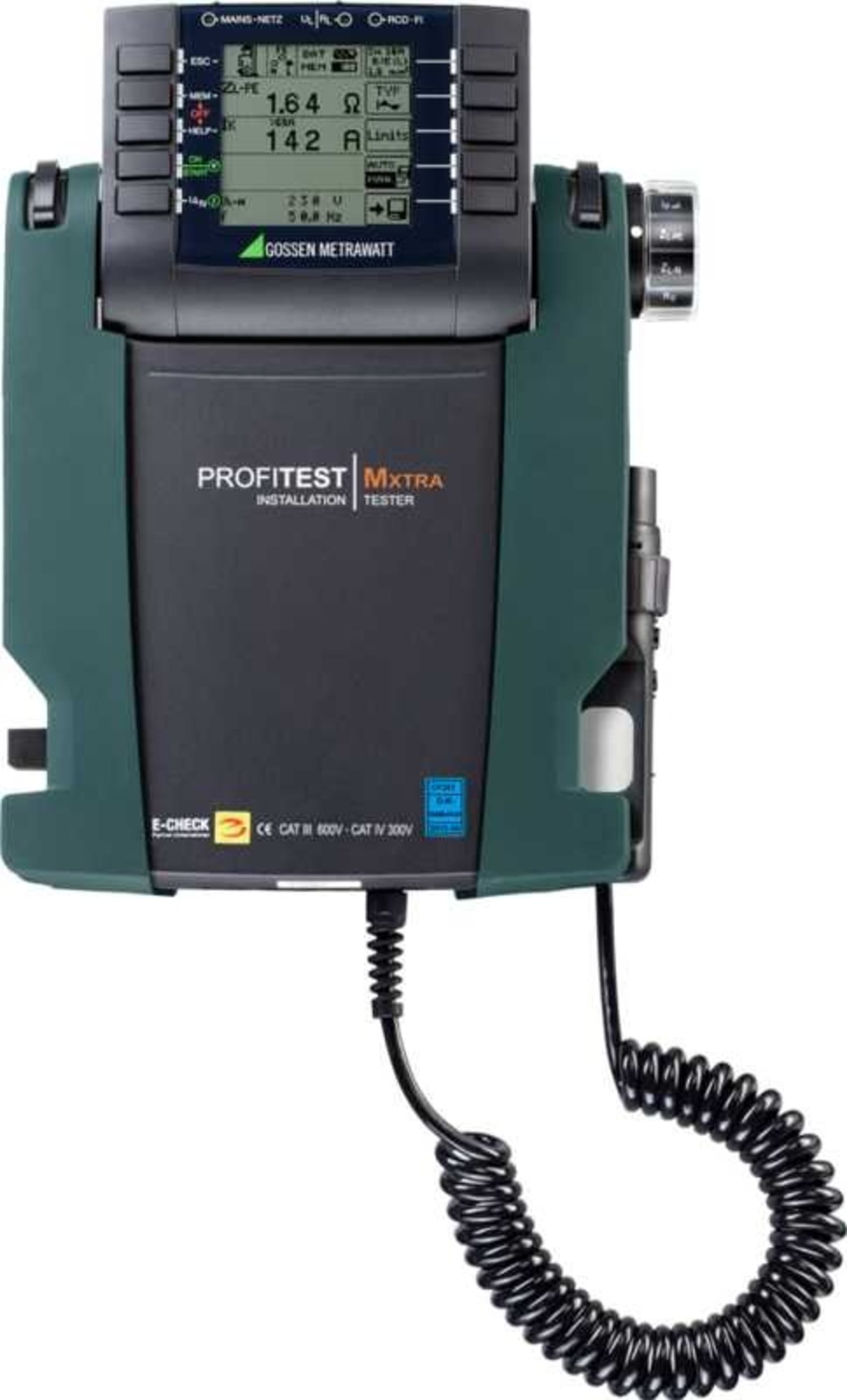

PROFITEST MXTRA Master Electrical Installation Test Instrument
The new PROFITEST Master test instrument provides professional electricians with a state-of-the-art, universal measuring tool.
Range of Test Instruments for DIN VDE 0100-600 / IEC 60364.6.
Product Highlights
- Bidirectional data exchange
- Port for RFID readers, barcode scanners
- Includes ETC software (Electrical Testing Center) incl. report templates acc. DIN VDE 0100-600, lightning protection system acc. DIN EN 62305, concrete-footing ground electrode acc. DIN 18014
- Universal connector system
- All measurements per VDE0100, part 600 and per GOST R (ГОСТ Р) 50571.16-99
- Testing of residual current devices (RCCBs)
- Loop and line impedance measurement
- Voltage drop measurement
- Measurement of insulation resistance using nominal voltage, with variable or rising test voltage
- Low-resistance measurement
- Earth resistance measurement
- Standing-surface insulation measurement
- DIN VDE 0100-600 / IEC 60364.6
Advantages
PROFITEST – versatile and future-proof
- Intuitive operation
- Efficient work
- Standards-compliant testing
- Legally secure documentation
PROFITEST – saves time and money
- As a single test instrument for a broad range of applications
- All measurements without any bothersome replugging of the measurement cables
- Can be used all over the world thanks to language selection
PROFITEST – even 10 years down the road
- Future-proof thanks to firmware updates
- 10-year service guarantee
- DAkkS certificate issued by own calibration laboratory
- User support for questions about testing
PROFITEST – quick and easy report generation
- Cascadable, future-proof software concept
- Modern data management by means of customer and measurement data administration
- Creation of system structures – from the system all the way down to the measuring points
- Quick and easy generation of a legally secure report per ZVEH
PROFITEST – reliable measuring and testing
- Easy operation with rotary switch
- Predefined test sequences for structured testing
- On-site help thanks to helping function with wiring diagrams
- Measuring category: 600 V CAT III / 300 V CAT IV
- 4-wire measuring method – no compensation of the measurement cables is required
