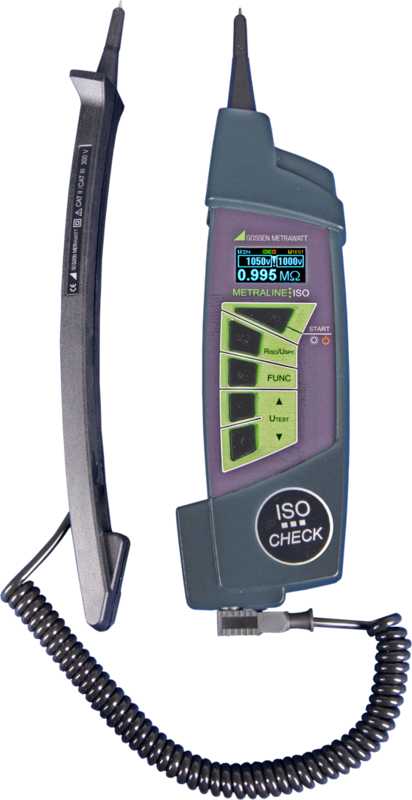

Gossen Metrawatt M507C - Metraline Insulation Measuring Test Instrument, Voltages from 50 to 1000 V

Name: Gossen Metrawatt M507C - Metraline Insulation Measuring Test Instrument, Voltages from 50 to 1000 V
Brand: Gossen Metrawatt
SKU: GossenM507C
Price: 691.19 USD
Availability: InStock

0 reviews | Catalog: METRALINE ISOCHECK | Model: Gossen Metrawatt M507C

Compare

Metraline Insulation Measuring Test Instrument, Voltages from 50 to 1000 V

Insulation resistance measurement with test voltage from 50 to 1000 V
Voltage measurement to 600 V
Measurement of surge protection devices with test voltage from 50 to 1000 V
Table of common varistors can be displayed
Digital display, backlit color OLED display
Indication of dangerous touch voltage
LED for measurement point illumination
Patented test probe retainer
Compact and rugged – for service calls under harsh conditions and laboratory use

View Product Details

Your Price: $691.19

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Gossen Metrawatt M507C

Voltage measurement to 600 V
Table of common varistors can be displayed
Digital display, backlit color OLED display
LED for measurement point illumination
Patented test probe retainer

Metraline Insulation Measuring Test Instrument, Voltages from 50 to 1000 V

The test instrument permits the measurement of insulation resistance with test voltages between 50 and 1000 V in accordance with VDE 0413-1,-2 (EN 61557-1, 2). The measuring range runs from 100 kΩ to 1 GΩ.

Measurement of insulation resistance at voltage-free devices and equipment, up to 1000 V depending on the variant
Measurement of surge protection devices, up to 1000 V depending on the variant
Checking of test objects for the absence of voltage

Reference Conditions
Temperature	23 ± 2 °C
Relative humidity	40 to 60%
Device position	any
Power Supply
Batteries	4 ea. AAA (LR03), 1.5 V alkaline or 1.2 V NIMH (with at least 750 mAh)
Electrical Safety
Measuring category	with safety cap applied to test probe: CAT III 300 V without safety cap applied to test probe:CAT II 300 V
Pollution degree	2
Protection class	II
Electromagnetic Compatibility (EMC)
Interference emission	EN 61326-1:2006 class B
Interference immunity	EN 61326-1:2006
Mechanical Design
Display	OLED, multicolored, graphic
Protection Housing	IP 43
Dimensions	approx. 260 x 70 x 40 mm
Weight	approx. 0.36 kg with batteries

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
IR Test Voltage	1,000 V, 50 V
Maximum Insulation Resistance	1 G Ohms
Automated Test Results	Step Voltage
Type	Battery
Minimum Insulation Resistance	0.01 Ohms (0.00000000001 G Ohms)
Display (Megohmmeter)	Digital
Power Supply	Battery
CAT Rating	III
CAT Voltage	300 V
Test Equipment General Attributes
Unique Features	Insulation resistance measurement with test voltages of 50 to 1000 V Voltage measurement up to 600 V Measurement of surge protection devices with test voltages of 50 to 1000 V Table of common varistors can be displayed Digital display, backlit color OLED display Indication of dangerous touch voltage LED for measurement point illumination Patented means of securing test probes
Product Weight	0.36 KILOS (0.794 LBS)
Product Height	70 MM (2.76 IN)
Product Length	260 MM (10.24 IN)
Product Width	40 MM (1.57 IN)
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	Germany
