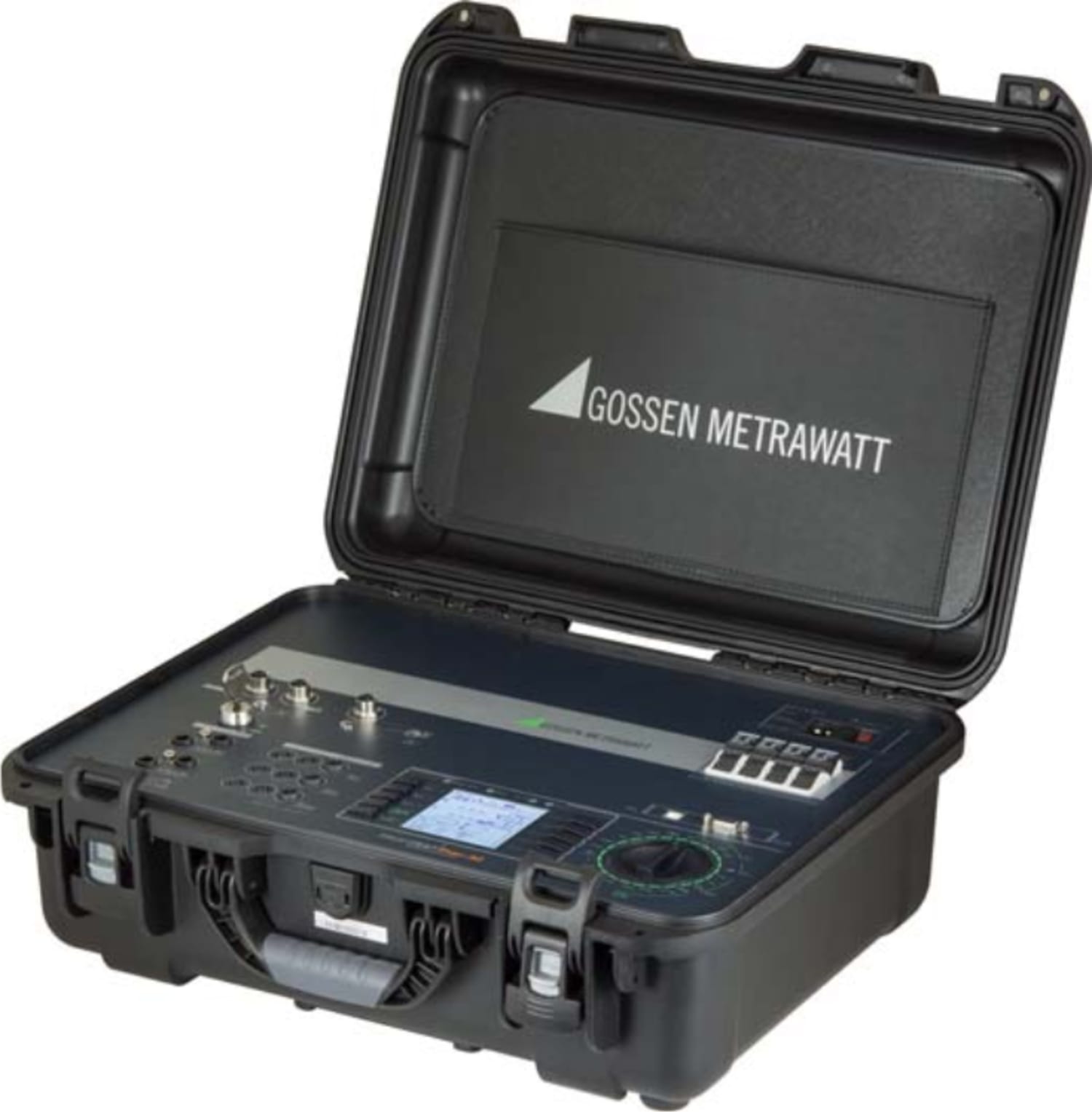

PROFITEST PRIME tester plus HV DC up to 5000 V Measurement of internal system resistance and fault loop resistance with high test current up to 690 V AC / 800 V DC without tripping RCD types A and B Low-resistance measurement for protective and equipotential bonding conductors with 200 mA, automatic polarity reversal and 25 A

Applications

The PROFITEST PRIME is the first all-in-one test Instrument for electrical equipment in AC and DC systems for testing the effectiveness of protective measures and more.

• Machinery manufacturing
• Switchgear fabrication
• Industrial systems up to 690 V
• Wind power turbines up to 690 V
• E-mobility – charging infrastructure, AC/DC systems
• IT networks up to 690 V
• Insulation monitors up to 690 V
• High voltage / insulation measurement up to 100 GΩ

Features

Display with Selectable Language
The LCD panel consists of a backlit dot matrix at which menus, setting options, measurement results, tables, instructions and error messages, as well schematic diagrams appear. The display can be set to the desired language depending on the country in which the test instrument is used.

Operation
Device functions are selected directly with the help of a rotary selector switch. Soft keys allow for convenient selection of sub functions and parameter settings. Unavailable functions and parameters are automatically prevented from appearing at the display.

Schematic diagrams, measuring ranges and help texts can be displayed for all basic functions and sub-functions.

Error Indication

• The instrument automatically detects instrument-to-system connection errors, which are indicated in a connection pictograph.
• Errors within the electrical system (no mains or phase voltage, tripped RCD) are indicated at 4 LEDs and by means of popup windows at the display.
