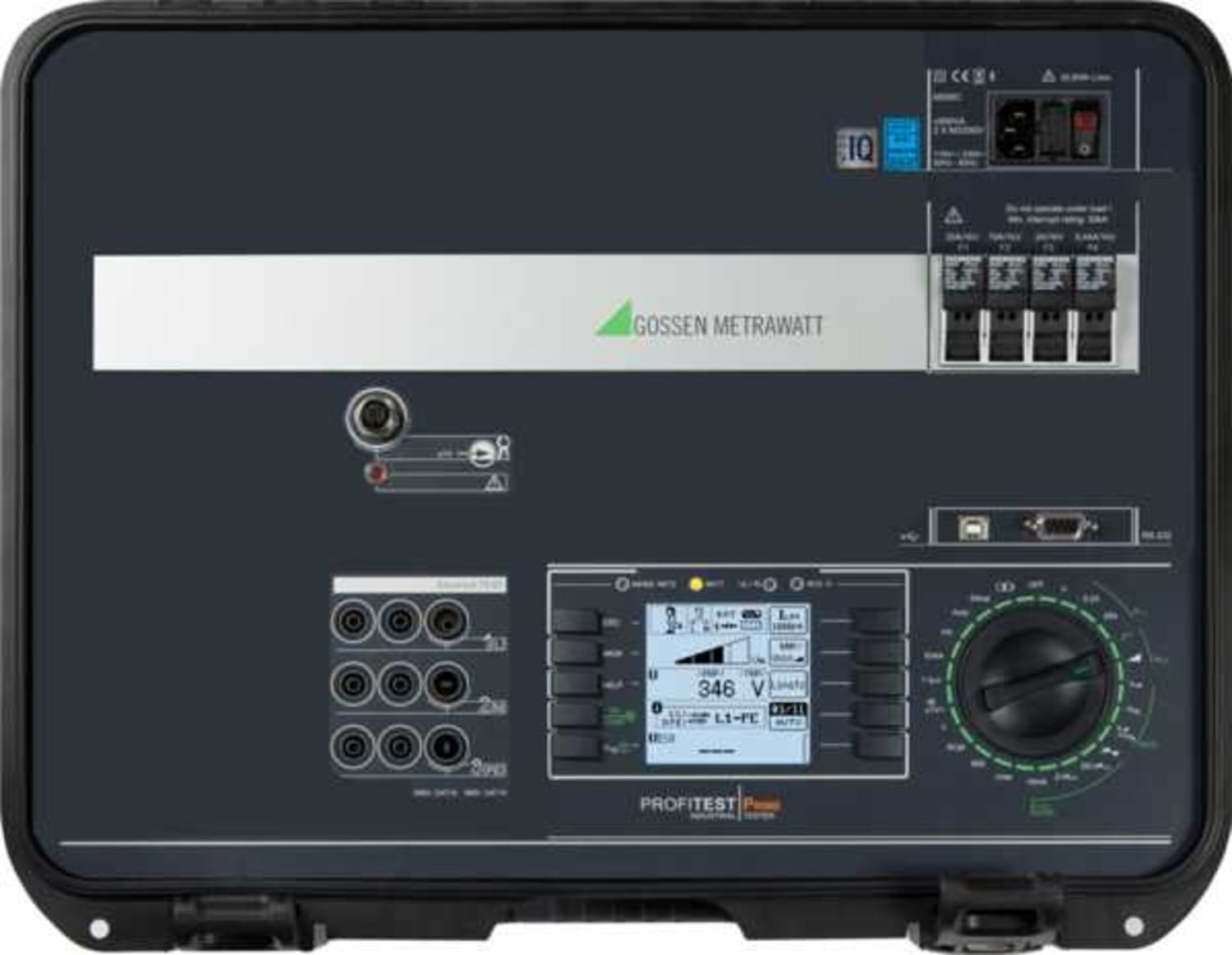

Electrical System Power Measurement Tester
A broad-range measuring device permits use of the test instrument in all alternating and 3-phase electrical systems with voltages from 65 to 690 V and frequencies of 15.4 to 420 Hz, as well as direct current systems with voltages from 65 to 800 V.
Testing the effectiveness of safety measures in electrical systems is necessary in many applications and is required in accordance with legislation and regulations set forth by official authorities, operating companies and insurance companies.
Product Highlights
Versatile and future-proof
- Intuitive operation
- Efficient work
- Standards-compliant testing
- Legally secure documentation
Saves time and money
- As a single test instrument for a broad range of applications
- All measurements without any bothersome replugging of the measurement cables Interchangeable test tips on the measurement cables
- Language genius – can be used all over the world
Up-to-date even in 10 years
- Future-proof thanks to firmware updates
- 10-year service guarantee
- DAkkS certificate issued by own calibration laboratory
- User support for questions about testing
Quick and easy report generation
- Cascadable, future-proof software concept
- Modern data management by means of customer and measurement data administration
- Creation of system structures – from the system all the way down to the measuring points
- Quick and easy generation of a legally secure report per ZVEH
Reliable measuring and testing
- Easy operation with rotary switch
- Predefined test sequences for structured testing
- Coded plugs assure error-free testing
- On-site help thanks to helping function with wiring diagrams
- Measuring category: 600 V CAT III / 300 V CAT IV
Standards-compliant and safe – the PROFITEST PRIME series implements all measuring tasks safely and in compliance with the standards, and it makes testing quick and safe for electricians and other authorized persons in accordance with a variety of various application and product standards, for example:
- DIN VDE 0100-600 / IEC 60364-6
- DIN VDE 0105-100 / EN 50110-1
- VDE 0113-1 / DIN EN 60204-1
- VDE 0660-600-1/ DIN EN 61439-1
- VDE 0126-23 / DIN EN 62446
- VDE 0122-1 / DIN EN 61851-1
