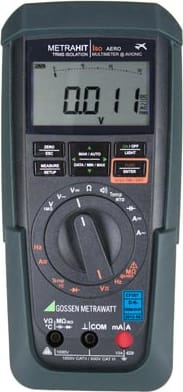

Gossen Metrawatt M246M - TRMS Multimeter with Insulation Measurement for Avionic Maintenance

Name: Gossen Metrawatt M246M - TRMS Multimeter with Insulation Measurement for Avionic Maintenance
Brand: Gossen Metrawatt
SKU: GossenM246M
Price: 1571.17 USD
Availability: InStock

0 reviews | Catalog: METRAHIT ISO AERO | Model: Gossen Metrawatt M246M

Compare

TRMS Multimeter with Insulation Measurement for Avionic Maintenance

Insulation resistance measurement up to 3.1 GO with interference voltage detection - test voltages: 10, 50, 100, 250, 500 V
Multimeter with diverse functions (V, O, F, Hz)
TRMS measurements: TRMS AC / AC+DC for current / voltage up to 10 kHz
Activatable low-pass filter, 1 kHz / -3 dB in the V AC range
Direct current measurement, 100 nA to 10 A
Current measurement with current sensor clamps - CLIP, A transformation ratio of 1 mV:1 mA to 1 mV:1 A can be selected and is taken into consideration at the display.
Precision temperature indicator, °C or °F, for Pt100 / Pt1000 sensors and type K thermocouples
Diode measurement (IK = 1 mA, Uflow to 5.1 V) and continuity testing
Display: 4¾ place, ±30,000 digits, illumination can be activated
Acoustic signals for: continuity testing, dangerous contact voltages, exceeded overload limits

View Product Details

Your Price: $1,571.17

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Gossen Metrawatt M246M Accessories

Choose a Category

DMM Probe Kits

for the Gossen Metrawatt M246M

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Gossen Metrawatt M246M

Multimeter with diverse functions (V, O, F, Hz)
Direct current measurement, 100 nA to 10 A
Activatable low-pass filter, 1 kHz / -3 dB in the V AC range
Display: 4¾ place, ±30,000 digits, illumination can be activated

TRMS Multimeter with Insulation Measurement for Avionic Maintenance

The METRAHIT ISO AERO multimeter is a rugged portable measuring instrument for use in the field of Avionics
Special version for avionics services with special low-voltage insulation measurement and data hold function.
Optional Avionics service case with special test and measuring accessories for aviation technology, consisting of measurement cables, terminals, adapters and sockets for MIL plug connectors in a waterproof, pressure-tight hard case.

Product Highlights

Min-Max value storage
Data memory and internal clock, power pack adapter socket
IP 54 Housing protection, dust and splash protection, protective cover
Bidirectional infrared interface for exchanging data with a PC
Windows software is available as an accessory for processing and graphic display of measured values via RS 232 interface

Analog
Analog	Display LCD scale with pointer
Polarity display	with automatic switching
Overflow display	With the symbol
Measuring rate	40 measurements per second and display refresh
Digital
Display / char. Height	7-segment characters / 15 mm
Number of places	4¾ places, 30000 steps (V DC and ) switchable to 3¾ places, 3100 steps
Overflow display	“OL” is displayed for  30000 digits respectively  3100 digits
Polarity display	“–” (minus sign) is displayed if plus pole is connected to “”
Measuring rate	10 and 40 measurements per second with the Min-Max function except for the capacitance, frequency measuring functions
Refresh rate	2 times per second, every 500 ms
Electrical Safety
Safety class	II per EN 61010-1:2001/VDE 0411-1:2002
Measuring category	CAT II, CAT III
Nominal voltage	1000 V, 600 V
Pollution degree	2
Test voltage	5.2 kV~ per EN 61010-1:2001/VDE 0411-1:2002
Power Supply
Battery	2 ea. 1.5 V mignon cell (2 ea. size AA), alkaline manganese per IEC LR6
Service life	With alkaline manganese batteries: approx. 200 hours

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC A	Yes
Maximum Voltage AC	500 V
Maximum Current DC	10 A
Minimum Current DC	100 mA
# Digit Display	4.75
Manual/Autoranging	Both
Resistance	Yes
Frequency	Yes
Capacitance	Yes
Temperature	Yes
Diode Testing	Yes
CAT Rating	II CAT Rating III
CAT Voltage	1,000 V, 600 V
Overload Protector	Yes
Data Hold	Yes
Low-Pass Filter	Yes
Test Equipment General Attributes
Warranty	3 YEARS
Safety Approval	CE
Interfaces I/O	RS-232, USB
IP Rating	IP54
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Germany
