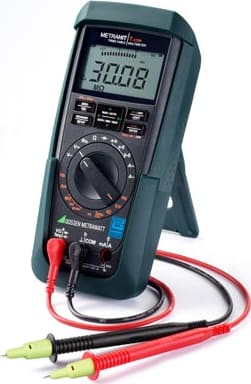

Gossen Metrawatt M246A Multimeter

Name: Gossen Metrawatt M246A Multimeter
Brand: Gossen Metrawatt
SKU: GossenM246A
Price: 993.00 USD
Availability: InStock

0 reviews | Catalog: M246A | Model: Gossen Metrawatt M246A

Compare

Multimeter for testing copper cable installation, battery, KS21T, F836, GH, ISO17025 Calibration

Insulation resistance measurement (test voltage: 100 V) with simultaneous detection of interference voltage and polarity reversal for diode testing
Cable symmetry testing by means of rapid changeover switching
Multifunctional multimeter (V, Ω, F, Hz)
TRMS measurement, AC and AC+DC for current and voltage
Low-pass filter can be activated (200 Hz / -3 dB)
Direct current measurement, 100 nA to 1 A
Precision temperature indication in °C and °F for Pt100/Pt1000 sensors
3¾ place display, 3100 digits, illumination can be activated, analog display: linear or logarithmic for insulation measurement
Acoustic signal for continuity testing, dangerous contact voltages, exceeded overload limits
Min-Max value storage
Data memory and internal clock, power pack adapter socket
Housing with IP 54 protection, dust and splash protected, protective rubber cover as standard feature
Bidirectional infrared interface for exchanging data with a PC
New housing design, separate battery and fuse compartments, intelligent key functions with SMD button
DAkkS calibration certificate as standard feature
Manufacturer’s guarantee: 3 years material and workmanship,
1 to 3 years for calibration (depending upon application)

View Product Details

List Price: $993.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

DMM Probe Kits

for the Gossen Metrawatt M246A

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

The METRAHIT T-COM cable multimeter is a rugged portable measuring instrument for use in the field.

It performs measurements for pinpointing errors in cable networks. It measures all cable and system related parameters such as voltage, current, resistance, insulation and loop resistance, capacitance and cable length.

Interruption of a single core, or contact with an open-circuit core (capacitive asymmetry), is detected by means of polarity reversal and is indicated at the high-speed logarithmic bar graph display.

Display	LCD scale with bar graph or pointer, depending upon the selected parameter setting
Scaling	Linear (ranges other than M Ohms ISO):± 5 ... 0 ... ±30 with 35 scale divisions for , 0 ... 30, with 30 scale divisions in all other ranges
Polarity display	With automatic switching
Overflow display	With the symbol
Sampling rate	40 measurements per second and display refresh
Digital
Display / char. height	7-segment characters / 15 mm
Number of places	3¾ place 3100 steps
Overflow display	“OL” is displayed for 3100 digits
Electrical Safety
Safety class	II per EN 61010-1:2010/VDE 0411-1:2011
Measuring category	II, III
Nominal voltage	600 V, 300 V
Pollution degree	2
Test voltage	3.5 kV~ per EN 61010-1:2010/VDE 0411-1:2011
Power Supply
Battery	2 ea. 1.5 V mignon cell (2 ea. size AA), alkaline manganese per IEC LR6
Service life	With alkaline manganese: approx. 200 hrs. (without MISO meas.):
Data Interface
Type	Optical via infrared light through housing
Data transmission	Serial, bidirectional (not IrDa compatible)
Protocol	Device specific
Baud Rate	38,400 baud

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	100 V
Maximum Voltage DC	100 V
Maximum Current DC	1 A
Minimum Current DC	100 nA (0.00010 mA)
# Digit Display	3.75
Manual/Autoranging	Both
Decibels	Yes
Resistance	Yes
Frequency	Yes
Capacitance	Yes
Temperature	Yes
Diode Testing	Yes
CAT Rating	IV
CAT Voltage	600 V
Data Hold	Yes
Low-Pass Filter	Yes
Test Equipment General Attributes
Unique Features	Multifunctional multimeter (V, Ω, F, Hz)
Warranty	3 YEARS
Safety Approval	CE
Interfaces I/O	RS-232, USB
Product Weight	0.35 KILOS (0.772 LBS)
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Germany
Other Information	Dimensions:: 200 x 87 x 45 mm
