Gossen Metrawatt M244A Universal Calibrator and Simulator

Name: Gossen Metrawatt M244A Universal Calibrator and Simulator
Brand: Gossen Metrawatt
SKU: GossenM244A
Price: 1593.26 USD
Availability: InStock

0 reviews | Catalog: METRAHIT CAL | Model: Gossen Metrawatt M244A

Compare

METRAHIT CAL Universal Calibrator and Simulator, Calibrator for Voltage, Resistance, Current (source/sink) and temperature probes, incl. batteries, KS, ISO17025 Calibration

Universal calibrator, simulator
mA, mV ...V, 5 ...2000 Ω, °C / °F
Pt100 / 1000, Ni100 / 1000,
Thermocouples: J, L, T, U, K, E, S, R, B, N
Frequency and pulse run generator: 1 Hz ...1000 Hz
Ramp and staircase functions
Easy operation
Interface and optional METRAwin90-2 calibration software
Transmitter simulator: sink: 0 ...24 mA
DAkkS calibration certificate included as standard feature
Rugged, EMC compliant design

View Product Details

Your Price: $1,593.26

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Gossen Metrawatt M244A Accessories

Choose a Category

General Accessories

for the Gossen Metrawatt M244A

Gossen Metrawatt Z502U Magnetic probes - set with magnetic clip, 5,5 mm; 1000V CAT III/4A

Catalog: Probes, 4mm plug

(0)

In Stock!

Add to Cart

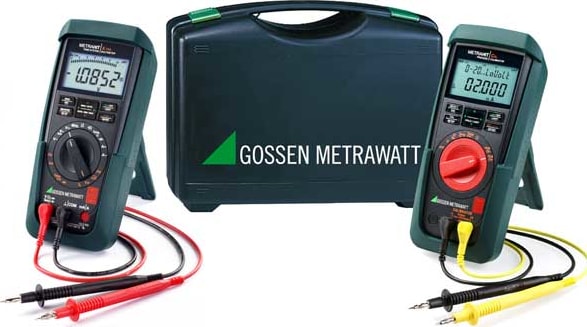

The METRAHIT CAL calibrator functions as a highly accurate calibration and simulation instrument for electrical quantities.
As a handheld instrument, it’s suitable for precise, on-site calibration and inspection tasks, as well as for test department and laboratory work, in process engineering, control room and equipment fabrication, general measuring technology and many other applications.

1 METRAHIT CAL calibrator with 2 batteries per IEC LR6
1 Pair of safety measurement cables (yellow and black) (1.5 m) with 4 mm test probes, 1000 V CAT III, 600 V CAT IV
1 Abbreviated operating instructions
1 CD ROM with operating instructions in English and German
1 Protective rubber holster
1 DAkkS calibration certificate

Internal clock
Time format	DD.MM.YYYY hh:mm:ss
Resolution	0.1 s
Accuracy	±1 minute per month
Temp. influence	50 ppm/K
Display
Display / char. height	7-segment characters
Main display	1 x 6 digits, 12 mm
Auxiliary displays	2 x 6 digits, 7 mm
Max. resolution	30000
Polarity display	“–” (minus sign) is displayed
Refresh Rate	2 times per second, every 500 ms
Power Supply
Battery	2 AA size batteries, alkaline manganese per IEC LR6
Fuses
Fuse link	FF0,63A/700V, 6,3 mm x 32 mm, min. 1,5 kA switching capacity
Electrical Safety
Protection class	II per EN 61010-1:2010/VDE 0411-1:2011
Operating voltage	Max. 50 V
Measuring category	I (250 V)
Pollution degree	2
Test voltage	500 V~ per EN 61010-1:2010/VDE 0411-1:2011
Data Interface
Type	Optical via infrared light through the housing
Data transmission	Serial, bidirectional (not IrDa compatible)
Protocol	Device specific
Baud rate	38,400 baud
Functions	Set/query cal. functions and parameters
Mechanical Design
Housing	Impact resistant plastic (ABS)
Dimensions	200 x 87 x 45 mm (without protective rubber holster)
Weight	Approx. 0.35 kg with batteries
Protection	IP 54

Process / Calibration/Multifunction Calibrators Template
Type	Hand Held
Measure Voltage	Yes
Simulate Loop Voltage	Yes
Voltage Measurement Max	15 V
Voltage Measurement Min	0 V
Current Measurement Max	24 mA
Current Measurement Min	0 mA
Source/Simulate Resistance	Yes
Measure Resistance	Yes
Resistance Measurement Max	2000 Ohms
Resistance Measurement Min	5 Ohms
Source/Simulate Frequency	Yes
Measure Frequency	Yes
Frequency Measurement Max	1 kHz (1000 Hz)
Frequency Measurement Min	1 Hz
Measure RTD	Yes
Measure Thermocouples	Yes
Graphical Screen	No
Types RTD/Thermocouples Accepted	B, E, J, K, L, N, R, S, T, U
Test Equipment General Attributes
Unique Features	Frequency and pulse run generator: 1 Hz ...1000 Hz Ramp and staircase functions Easy operation Interface and optional METRAwin90-2 calibration software Transmitter simulator: sink: 0 ...24 mA DAkkS calibration certificate included as standard feature Rugged, EMC compliant design
Warranty	3 YEARS
Safety Approval	UL
Interfaces I/O	USB
IP Rating	IP54
Product Weight	0.35 KILOS (0.772 LBS)
Product Height	87 MM (3.43 IN)
Product Length	200 MM (7.87 IN)
Product Width	45 MM (1.77 IN)
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Germany
