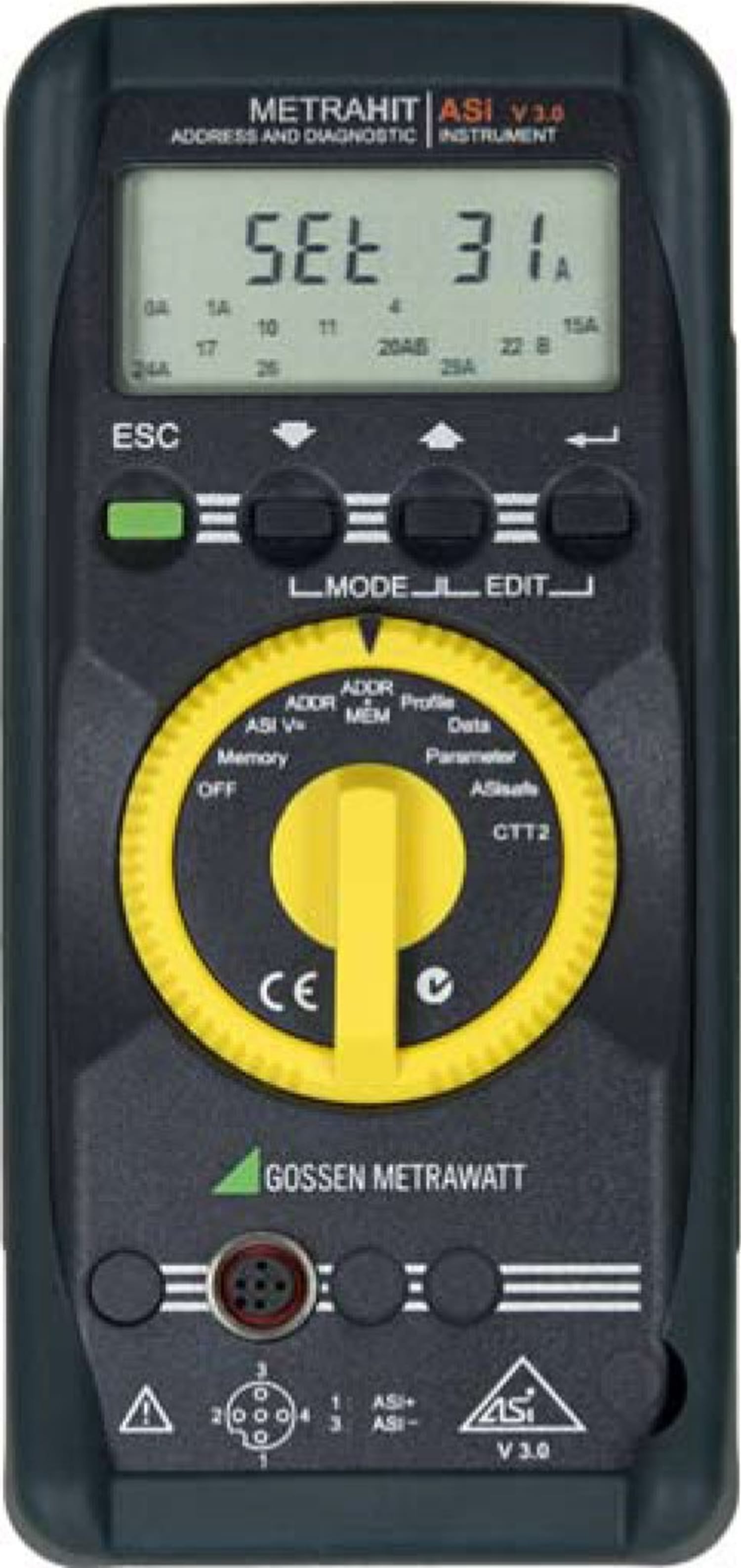

Gossen Metrawatt M235J ASi Bus Tester - Diagnostics and Addressing Tool, ASi Version 3.0

Name: Gossen Metrawatt M235J ASi Bus Tester - Diagnostics and Addressing Tool, ASi Version 3.0
Brand: Gossen Metrawatt
SKU: GossenM235J
Price: 549.06 USD
Availability: InStock

0 reviews | Catalog: METRAHIT Asi V3.0 | Model: Gossen Metrawatt M235J

Compare

ASi Bus Tester - Diagnostics and Addressing Tool, ASi Version 3.0

Replaces M235H
Read-out and selection of slave addresses 0 to 31, 1A to 31A or 1B to 31B for all AS interface slaves
Measurement of voltage in the AS interface conductor and measurement of operating current for AS-i slaves
Testing of input and output data from digital and analog slaves in accordance with AS interface specification V3.0, including safety relevant input slaves
Selection of slave parameters for test purposes and read-back of the parameter echo
Read-out of the slave profile (IO, ID, ID2)
Read-out and setting of the ID1 code
Read-out of data objects, identifiers and diagnostics in the case of CTT2 slaves
Read-out of the safety code sequences of safety relevant input slaves (ASIsafe)
Reading and writing of the cyclical input and output channels of CTT2 slaves
Storage of complete network configurations (profiles of all slaves) as an addressing aide

View Product Details

Your Price: $549.06

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Gossen Metrawatt M235J Accessories

Choose a Category

for the Gossen Metrawatt M235J

Gossen Metrawatt Z236A Connector Cable: M12 Male to Addressing Plug (Barrel Plug)

Catalog: KS36A

(0)

In Stock!

Add to Cart

Gossen Metrawatt Z113A Hard Case For METRAHit

Catalog: HC20

(0)

In Stock!

Add to Cart

Gossen Metrawatt Z231G Module Base for METRAHIT

Catalog: Z231G

(0)

In Stock!

Add to Cart

Gossen Metrawatt M235J - ASi Bus Tester, Diagnostics and Addressing Tool, ASi Version 3.0

Replaces M235H
Read-out and selection of slave addresses 0 to 31, 1A to 31A or 1B to 31B for all AS interface slaves
Measurement of voltage in the AS interface conductor and measurement of operating current for AS-i slaves
Testing of input and output data from digital and analog slaves in accordance with AS interface specification V3.0, including safety relevant input slaves
Selection of slave parameters for test purposes and read-back of the parameter echo
Read-out of the slave profile (IO, ID, ID2)

The METRAHITASI v3.0 is an easy-to-operate addressing and diagnosis device for active AS-i modules and intelligent sensors and actuators in accordance with AS-i version 3.0 including extended addressing mode.

Connection

The METRAHITASI v3.0 is connected to the slaves via cables with an M12 connector (90°) to jack plug or directly to the AS-i bus cable with optional cable Z236C.

Display

The high-contrast liquid crystal display (LCD) with primary and sub-displays keeps the user informed about various conditions.

Primary display (8 characters):

menu function, current data, error conditions

Sub-display (5 characters):

status displays
all assigned slave addresses (0 … 31, A, B) within the system
Selection overview for slave addressing and diagnosis

Two display modes are possible:

Slave data can be displayed in direct mode or in S7 mode.

Application, Addressing of ASi Slave

Application, Connection of AS-i System

Main display with 8 digits and additional information This symbol represents the information on the 7-segment display
Address field: Display of assigned AS-i addresses
RETURN / Input confirmation
Up / Increase value
Down / Decrease value
Escape / Cancel

Key combinations:
Edit function / Write outputs
Device setting
Rotary switch for function selection
M12 sockets for connection of the AS-i slaves

General Specifications

Characteristic values for function ASI V=

	Measuring range	Measuring accuracy
Voltage	2...35 V	±(3.5% v.M. + 2 D)
Current (for slaves)	0...0.15 A	±(5 % v.M. + 2 D)

Input resistance for voltage measurement: Approx. 300 kohm
Explanation: v.M. = of the measured value, D = digit

Power supply

The standard power supply is provided by 4 batteries 1.5 V type AA, IEC LR6 (NEDA15). High-quality alkaline-manganese batteries for current- intensive application are recommended. Alternatively, equivalent rechargeable batteries (preferably NiMH) can also be used. To conserve battery life, an automatic switch-off occurs approx. 5 minutes (or approx. 1 minute in the case of active data exchange) after the last operation.

Electromagnetic compatibility (EMC)

Emitted interference

EN 61326-1:2006 Class B

Interference immunity

EN 61326-1:2006

Environmental conditions

Operating temperature

0 °C … +50 ?

Storage temperature

–20 °C … +75 °C (without batteries)

Relative humidity

Max. 75%, condensation must be ruled out

Height above sea level

Up to 2,000 m

Installation location

Indoors only

Mechanical configuration

Dimensions

84 mm x 195 mm x 35 mm

Weight

Approximately 450 g with batteries

Degree of protection

IP40
