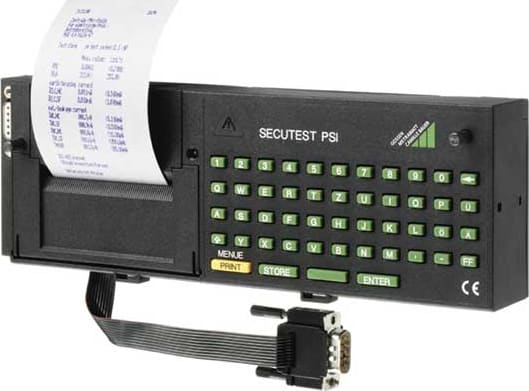

Gossen Metrawatt GTM5016000R0001 Printer/Memory Module

Name: Gossen Metrawatt GTM5016000R0001 Printer/Memory Module
Brand: Gossen Metrawatt
SKU: GossenGTM5016000R0001
Price: 937.00 USD
Availability: InStock

0 reviews | Catalog: SECUTEST PSI | Model: Gossen Metrawatt GTM5016000R0001

Compare

PSI module (printer, memory, RS 232 interface) user interface in D, GB, F, I, E, NL and CZ, including 2 rolls of recording chart paper, 1 ribbon cartridge, batteries and operating instructions for SECUTEST (M7010...)

Matrix printer
Real-time clock with date function battery buffered
Data memory only SECUTEST.../SECULIFE ST
Measurement values can be stored for up to 300 protocols
Alphanumeric keyboard
Test results can be annotated for the SECUTEST.../ SECULIFE ST, METRISO 5000 D-PI and PROFITEST 204 test instruments, e.g. specific data on system, DUT, customer and repair

View Product Details

List Price: $937.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

General Accessories

for the Gossen Metrawatt GTM5016000R0001

Gossen Metrawatt Z751G RFID-Reader / RFID Scanner for RS232- (13,56 MHz)

Catalog: SCANBASE RFID

(0)

In Stock!

Add to Cart

The test results are transmitted via ribbon cable from the instrument to the PSI module, which can be installed to the lid of the test instrument, where they are automatically stored to memory. The memory has room for acquired measurement values for 200 to 1000 test reports. Test results can be printed out on-site in clear, concise report form with date and time, and texts can be added to the reports with the integrated keyboard.

Printer
Print mechanism	4-pin matrix printer
Printing width	40 characters per line
Real-time clock with date function	battery buffered
Data memory (only SECUTEST.../SECULIFE ST)
RAM (Data)	100 kByte up to 300 tests, depending on the scope of master data
Data interface
Type	RS232, serial, per DIN 19241
Baudrate	9600 bauds
Parity	No
Data bits	8
Stop bit	1
Reference conditions
Battery voltage	6 V +/-0.5 V
Auxiliary power	9 V +/-0.5 V DC or 8 V +/-0.5 V rectified
Ambient temperature	+23 °C +/-2 K
Relative humidity	50 % +/-5%
Ambient conditions
Operating Temp.	0 °C ... 40 °C
Storage Temp.	- 20 °C ...+ 60 °C; except: batteries, paper and ribbon
Relative Humidity	max. 75%, no condensation allowed
Elevation	max. 2000 m
Deployment	indoors
Auxiliary power
Voltage supply With connection to the test instruments	across PIN 9 of the RS232 interface 6.5 V ... 12 V typically 9 V
Voltage supply With battery operation	4 each 1.5 V-mignon cells (alkaline-manganese) according to IEC LR 6
Power consumption
Standby (Data buffering)	5µA ... 200µA
Protocol printing	< 500 mA
Paper feed	< 200 mA
Data transmission to PC	< 100 mA
Mechanical configuration
Protection type	IP20 for the case
Dimensions	240 mm x 81

Tech Specs

Test Equipment General Attributes
Unique Features	Matrix printer Real-time clock with date function Data memory Alphanumeric keyboard
Interfaces I/O	Other, RS-232 Interfaces I/O per DIN 19241
IP Rating	IP20
Product Weight	0.8 KILOS (1.76 LBS)
Product Height	81 MM (3.19 IN)
Product Length	240 MM (9.45 IN)
Product Width	40 MM (1.57 IN)
Country of Origin	Germany
