Portable Analog Circuit Trainer

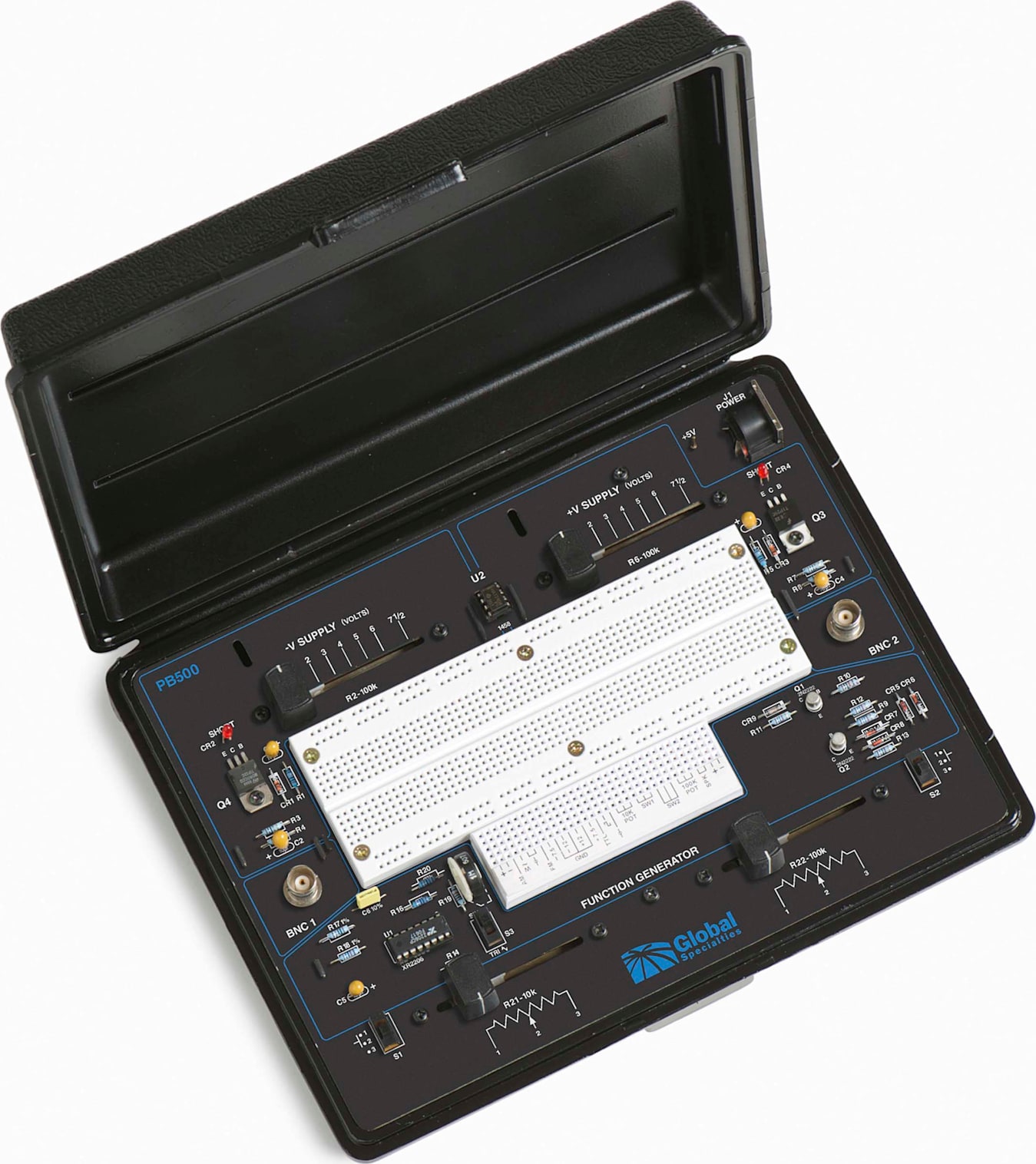

The Model PB-500 Analog Circuit Trainer is a compact, portable analog circuit design trainer with built-in power supplies and a function generator. It can be used for analog circuit design and classroom training. The PB-500’s unique combination of built-in functions and uncommitted devices makes it one of the most convenient breadboarding systems available. The trainer contains all of the functions required for studying and experimenting with active filters, operational amplifiers, and other analog circuitry and is powered by a UL-approved wall-mount power adapter. Utilizing the PB-500, students will learn valuable hands-on breadboarding techniques and build a solid foundation in circuit experimentation, construction, and analysis.
Experienced designers will also find the PB-500 an invaluable, capable, and reliable instrument, suitable for the most advanced and demanding analog design applications.
Global Specialties trainers provide the most complete platform required to enable engineers and technicians to train for careers in the rapidly growing field of electronics technology.
Applications
Use the PB-500 to construct a wide variety of experiments, including but not limited to:
- Opto-Device Circuits
- Multivibrators
- Oscillator Circuits
- Timers
- Function Generator Circuits
- Logic Circuits
- Analog-to-Digital
- Converters
- Digital-to-Analog
- Converters
- Phase Lock Loops
- Operational Amplifiers
