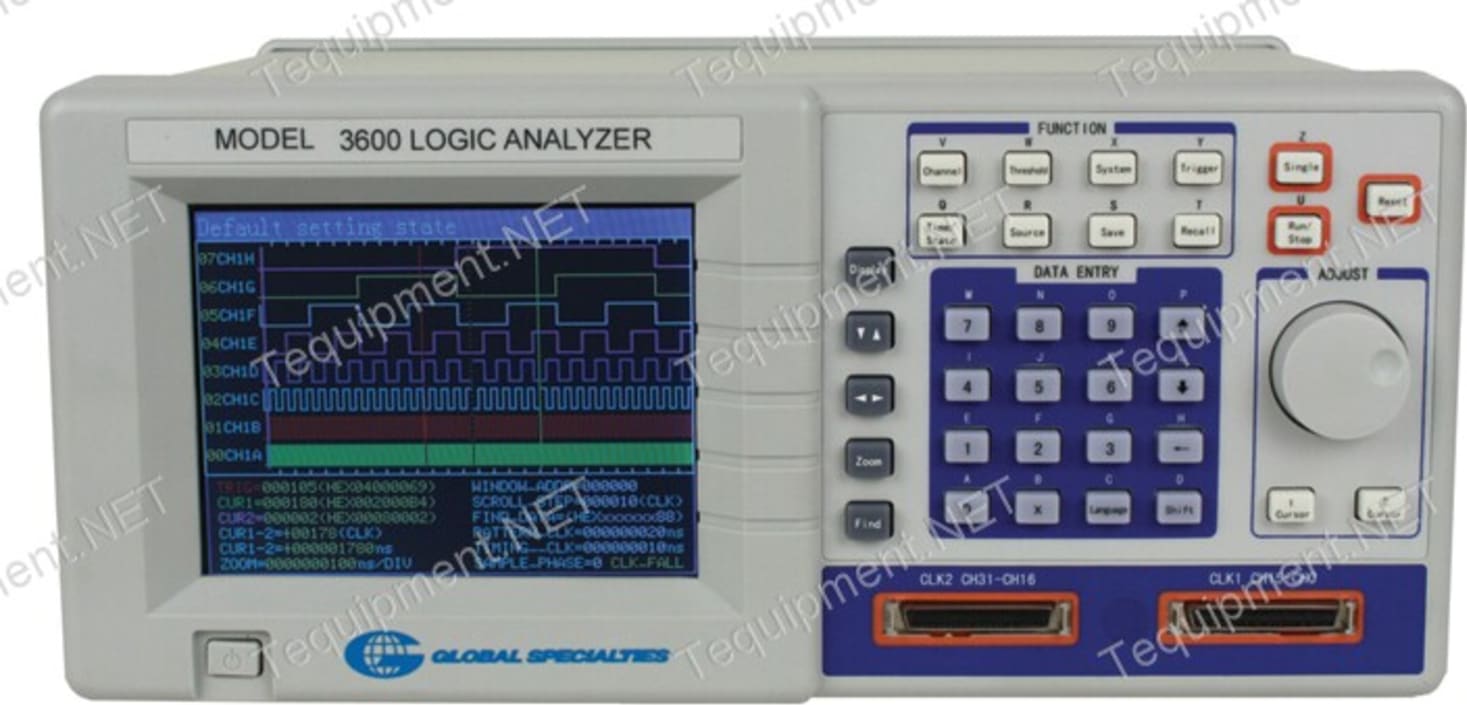

| Input |
| Input Channel |
32 data Sampling channels, 2 External Clock channel |
| Threshold Level |
6 individual adjustable threshold voltages
adjusting range
-6 V to +6 V |
| Resolution |
0.1 V |
| Input Impedance |
>100 kO |
| Input Protection |
Max input ?40 V |
| Sampling/Storage Characteristics |
| Timing sample |
1 Hz to 100 MHz (10ns ~ 1 s resolution) Internal clock |
| Resolution |
10 ns |
| Sampling Channels |
Internal, External clock 1 and external clock 2 (1 Hz to 5 MHz) |
| Sampling Signals |
Internal code generator, external signal source |
| Sample controls |
Single sampling, continous repetitive sampling |
| Storage Depth |
260 K Sampling Points per channel |
| Trigerring |
| Triggering conditions |
32 bits start select, 32 bits start-compare word |
| Trigger Limit |
by select switch > , = , < |
| Event Counter |
1 ~ 999 times |
| Trigger select |
by ON /OFF Switch |
| Store Delay |
1 ~ 260,000 sample Cycles |
| Display |
| Display format |
8 Channels timing waveforms 18 rows data lists |
| Screen Display |
5.7 inch color LCD screen, resolution 320 x 240 points |
| Waves Rolling |
32 channels vertical rollling display, 256 K data points plane |
| Waveform Zoom |
Horizontal zoom 1 - 100 times, scale 1 ns/div to 4s/div |
| Cursor |
| Floating Cursor |
Floats arbitrarily in display screen & does not move together with waveform |
| Sticking Cursor |
As a reference point stick on the waveforms lists and moves together |
| Cursor measure |
Moving the position of cursor dynamically displays the data values of the cursors and address distance of the two cursors and address distance and the interval of the two cursors |
| Trigger cursor |
Sample point suits the trigger condition |
| Search Cursor |
Sample point suits the search condition |
| Internal Generator |
| Code Type |
00 ~ 15 channels as one counter, 16 ~ 29 channels are shift pulse, 30 and 31 channels are for monitoring external clock clk1 and clk2 |
| Code Rate |
1 Hz to 50 MHz (Cycles 20 ns ~1 s) |
| Resolution |
10 ns |
| General |
| Interface |
RS232C |
| Power |
220 V AC ?10 %, 50 Hz, 30 VAmax |
| Operating Temp. |
0 ~ 40O C Humidity <80% noncondensing |
| Dimensions |
329 mm x 283 mm x 155 mm |
| Weight |
3 kg |
| Accessories |
Power Cord - 1 No. Flat Cable Wire - 2 Nos.Conversion
Box Junction - 2 Nos.Testing Clamp - 36 Nos.
User Manual - 1 Nos. |
| Optional Accessories |
RS232C Cable |
