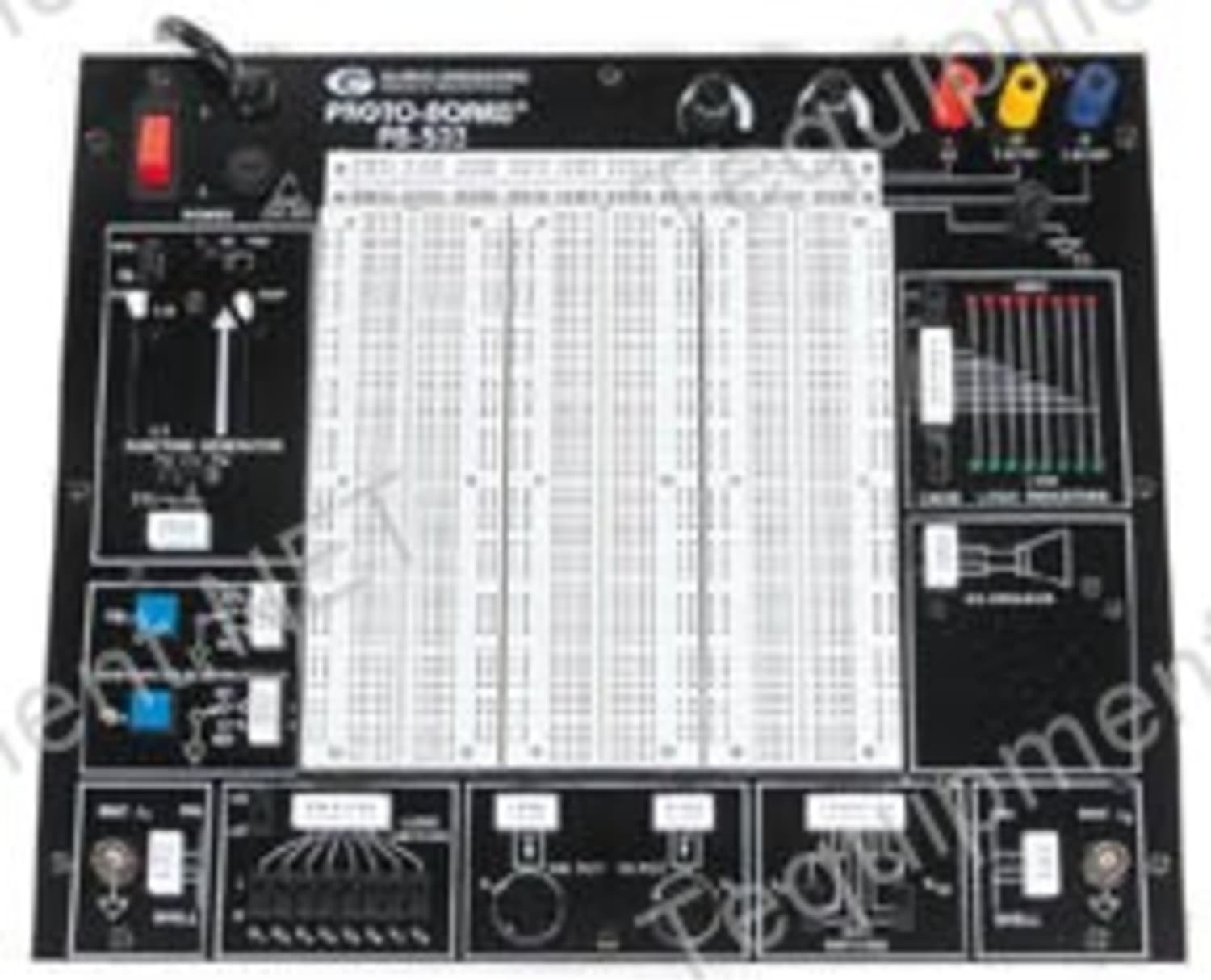

The PB-503 & PB-503C Protoboards? contain multiple features in one complete test instrument, saving hundreds of dollars needed for individual units. Not only will you save money, you will save space. The PB-503 design station takes up just over 1 square foot of desk space, while delivering the functionality of a full test bench of performance.
The PB-503C is a complete electronics workstation housed in a rugged carrying case, making it ideal for students or engineers who wish to take their lab with them. The case folds into the size of a large briefcase, making the lab portable. Convenient storage facilities are provided in the carrying case for manuals, for an optional Multimeter, and for the optional WK-1 wire jumper kit.
Key Features
The PB-503 and PB-503C are complete design workstations, including instrumentation, breadboarding, and a rugged DC regulated triple power supply. The new and improved PB-503 and PB-503C now feature a removable breadboard area and optional additional breadboard socket plates. The instrumentation features eight new individual selectable logic switches (offering settings of +5volts / +V and ground) with red (high) and green (low) buffered logic LED indicators; a 100KHz function generator with continuously variable sine, square, and triangle waveforms plus TTL pulse; a triple output power supply (2 variable and 1 fixed), two digital pulsers, audio experimentation speaker, SPDT switches, potentiometers and debounced pushbutton switches.
The breadboarding area has a total of 2520 uncommitted tie points, enough space for circuits containing 24 IC's of 14 pins or equivalent. The Breadboarding sockets have an unlimited lifetime guarantee. The power supply offers three DC regulated supplies, one fixed at +5VDC and two variable from ?1.3 to ?15VDC. All three supplies are short-circuit protected, automatically current limiting the output to a safe level.
Applications
Exceptional combination of equipment makes the PB-503 and PB-503C a significant improvement and value over individual components, particularly for design engineers and high technology applications including laboratories, test benches, and classrooms. Whether you are an occasional designer or an everyday user, you will find the PB-503 and PB-503C your favorite piece of lab equipment.
