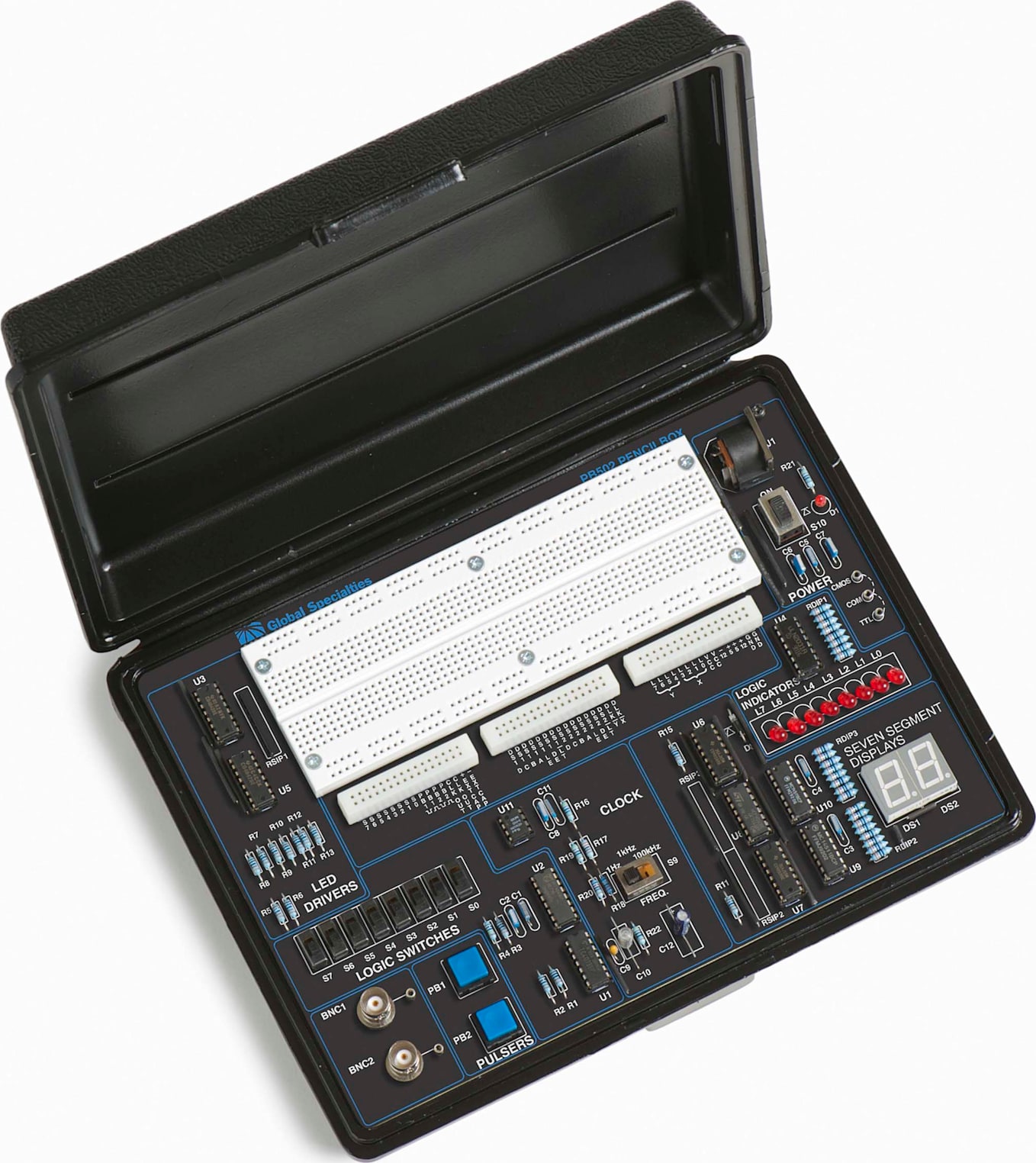

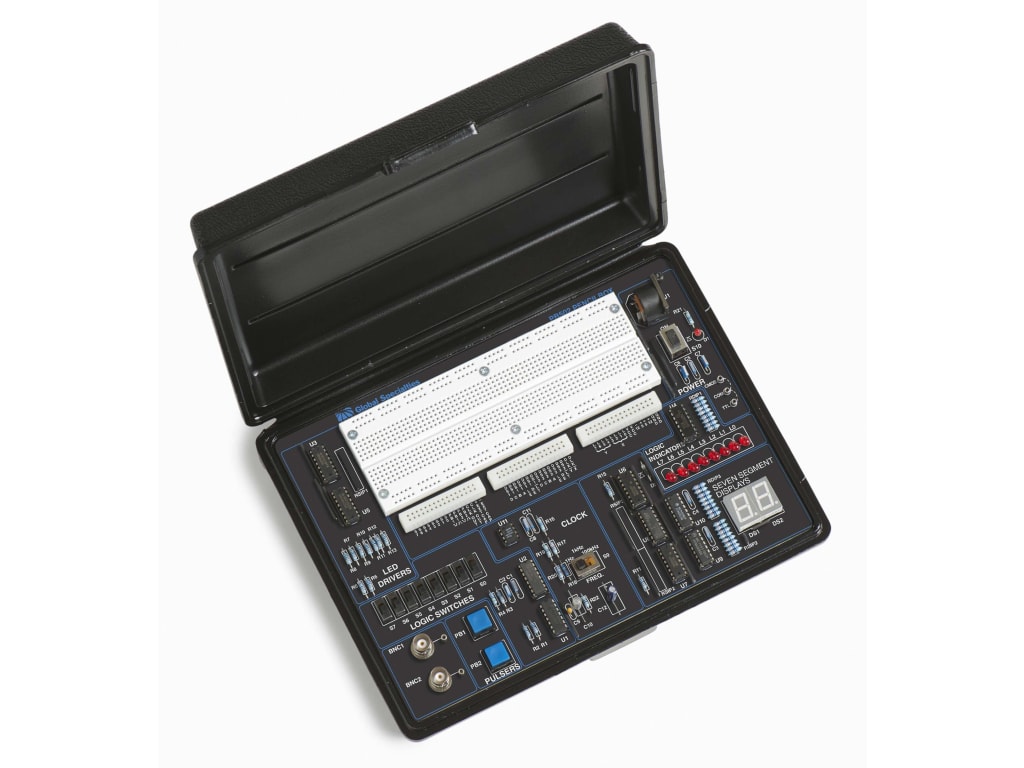

Portable Advanced Logic Design Trainer
The PB-502 Advanced Logic Design Trainer is a portable robust instrument capable of satisfying many requirements arising in the design and study of digital logic circuitry. The PB-502’s selectable operating voltage further aids its versatility by allowing the trainer to be used in either TTL or CMOS operating mode, The trainer contains three integral power supplies and input/output devices that simplify the construction of a wide range of circuits. Typical circuits that can be built on the PB-502 include, operational amplifiers, comparators, A to D converters, gates, and counters. The PB-502 can also interface directly to a microprocessor. The PB-502 is housed in a tough, molded plastic carrying case with an integral hinged cover which stacks neatly for storage. Utilizing the PB502, students will learn valuable hands-on breadboarding techniques and build a solid foundation in digital logic circuit experimentation, construction, and analysis.
Global Specialties trainers provide the most complete platform required to enable engineers and technicians to train for careers in the rapidly growing field of electronics technology.
