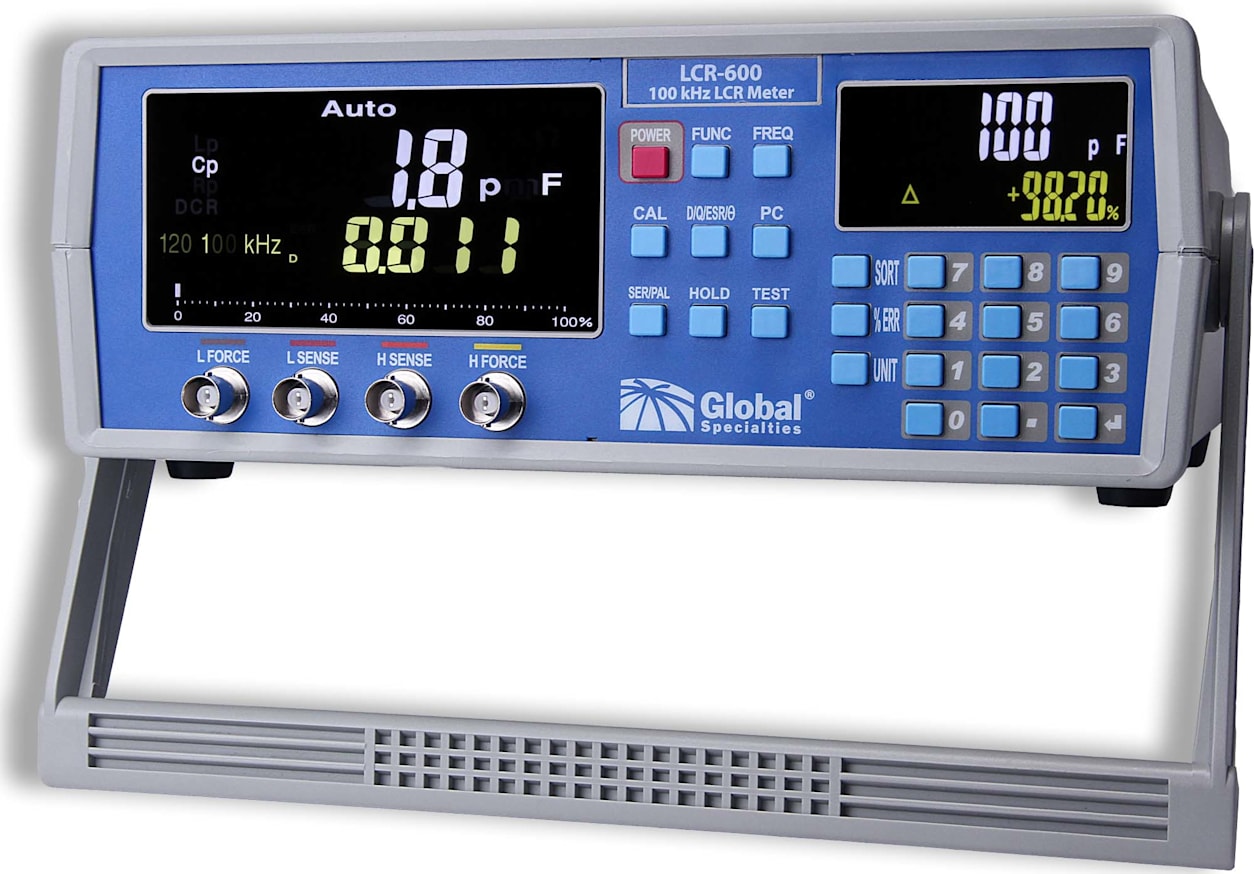

Global Specialties LCR-600 100 kHz High Precision LCR Meter

The LCR-600 is a high precision test instrument used for measuring the inductance (L), capacitance (C), and resistance (R) of an electrical component. The LCR-600 has an operational frequency range of 100 Hz to 100 kHz and a basic measurement accuracy of 0.3%. There is a dual LCD display, measurement voltage fixed at 0.6 V, auto-detect function, and open-circuit /short-circuit compensation. Use the meter to check ESR values of capacitors and inductors, sort and select components, identify unknown components, and measure general LCR values.


About Global Specialties

Since 1973, Global Specialties has been the recognized leader in innovative electronics training solutions for education and industry. Global Specialties' prototyping and trainer systems set the worldwide standard for reliability, durability and long life, designed to take the sustained use of educational, research and product testing environments. A leader in the development of integrated teaching systems, Global Specialties offers completely packaged courses including everything required for effective instruction. Global Specialties' products are available from electronics distributors worldwide.


Front Panel Description

1. Main Display LCD
2. Secondary Display LCD
3. Power Button
4. FUNC (Auto LCR/L/C/R/DCR Function)
5. FREQ (Frequency Range)
6. CAL (Open Circuit / Short Circuit Calibration)
7. D/Q/ESR/θ Function
8. PC Function
9. SER /PAL (Series / Parallel Function)
10. HOLD (Display Hold)
11. SORT (Sorting Function Mode)
12. TEST (Sorting Function Test)
13. %ERR (Percentage Error)
14. UNIT (Unit Change)
15. Key Pad
16. Decimal Point
17. Enter
18. HPOT Terminal
19. HCUR Terminal
20. LPOT Terminal
21. LCUR Terminal

Rear Panel Description

22. Input AC Power Selector and Fuse
23. DC Fan
24. USB Terminal
25. Line Power Switch
