Global Specialties H500 - RGB Color Analyzer

Name: Global Specialties H500 - RGB Color Analyzer
Brand: Global Specialties
SKU: Global SpecialtiesH500
Price: 713.11 USD
Availability: InStock

0 reviews | Model: Global Specialties H500

Compare

RGB Color Analyzer

Measure both RGB and HSL levels
Easy to use relative (REL) feature allows the comparison of two color samples
Easy to use
Two year warranty

Applications

Check color levels of Plastics, Textiles, Paper, Paints and Leathers
Quality control in production and manufacturing
Comparisons of color samples against color standards
Check reference color values of CRTs, LCD monitors and light lamps

View Product Details

List Price: $838.95

In Stock:

View Payment Options

Recommended for you

Global Scientific H500 RGB Color Analyzer

Measure both RGB and HSL levels
Easy to use relative (REL) feature allows the comparison of two color samples
Easy to use
Two year warranty

RGB Color Analyzer

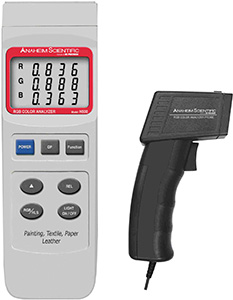

The model H500 is an RGB Color Analyzer that can measure the amount of Red, Blue and Green as well as the Hue, Saturation and Luminance of items such as Paints, Plastics, Fabrics, or just about anything you might need to know the color of.

Application:

Check color levels of Plastics, Textiles, Paper, Paints and Leathers
Quality control in production and manufacturing
Comparisons of color samples against color standards
Check reference color values of CRTs, LCD monitors and light lamps

Display	LCD size: 2.3 x 1.3" (59 x 34mm)
Measuring Geometry	45°/0° - Circular illumination at 45°, measurement at 0°
Spectral Range	400nmto 700nm
Light Source	Two white LEDs
Measuring Principle	- For non light emitting sample measurements such as textiles or paper, a defined light source illuminates the sample and reflected surface light is spectrometrically analyzed. - For light emitting sample measurements such as CRT or LCD, the light source fromthe sample is spectrometrically analyzed directly.
Color Sensors	Three color photo transistors. One for all three Red, Blue & Green colors.
Measurements	RGB Value R (Red) value : 0 to 1023 G (Green) value: 0 to 1023 B (Blue) value: 0 to 1023 HSL Value H (Hue) value: 0 to 1.000 S (Saturation) value: 0 to 1.000 L (Luminance) value: 0 to 1.000
Repeatability	Specified after the instrument is calibrated and measurement is repeated on the same sample tested ten times within two minutes R (Red) Value < 4 G (Green) Value < 4 B (Blue) Value < 4 H (Hue) Value < 0.02 S (Saturation) Value < 0.02 L (Luminance) Value < 0.02
Measurement Sample Material Types	Type 1 = Non light emitting material such as Textiles, Paint etc… Type 2 = Light emitting material such as CRT, LCD, Lamp etc… Important Note:The H500 is designed for measuring type 1 materials. Type 2 materials are for reference only, any accuracies or stated capabilities do not apply to type 2 materials.
Auto Power Off	Approximately after three minutes
Operating Temp.	32° to 122°F (0° to 50°C) @<80% RH
Power Supply	DC 9V Battery (type 006P, MN1604(PP3) or equivalent), 6.4mA standby / 32mAmeasurement (AC Adapter not included)
Weight (approx.)	1.05 lb (478g)
Dimensions (approx.)	Main instrument: 8 x 3 x 1.5" (203 x 76 x 38mm) Sensor probe: 6.3 x 3.6 x 1.8" (160 x 92 x 45mm)
Included Accessories	Instruction manual, calibration card, battery, carrying case

Tech Specs

Test Equipment General Attributes
HTS/Schedule B Number	9027.80.8000
ECCN Number	EAR99
Country of Origin	Taiwan
