• Two independent supplies with binding posts
• Separate 3-digit displays for voltage and current on the variable output
• Individual control of voltage and current for the variable output
• CV (constant voltage) / CC (constant current) mode operation
• LED indication for CV / CC mode
• Overload indication LED for fixed output

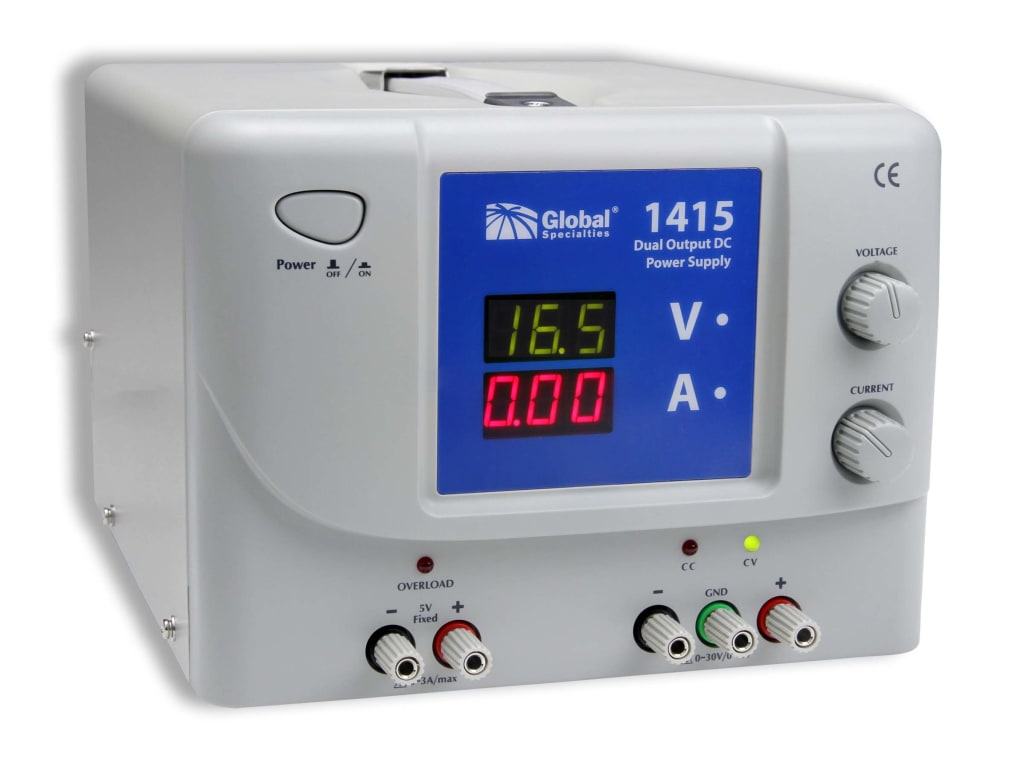

The 1415 features dual independent outputs. The variable supply provides up to 30 V at 3 A. The fixed output offers 5 V at 3 A. Automatic crossover between the Constant Current and Constant Voltage modes allow the continuous transition from CC to CV modes in response to load condition changes. Connect multiple units in series or parallel for greater voltage or current outputs.

Applications

The 1415 Dual Output DC Power Supply is ideally suited for applications where value and quality are equally important such as for:

• Educational labs
• Technical schools
• Internal training facilities
• Hobbyists
