Global Specialties 1301 DC Power Supply, Triple Output

Name: Global Specialties 1301 DC Power Supply, Triple Output
Brand: Global Specialties
SKU: Global Specialties1301
Price: 212.50 USD
Availability: InStock

0 reviews | Model: Global Specialties 1301

Compare

Triple Output DC Power Supply

1301 DC Power Supplies Global Specialties
Two variable outputs: 1.8-18 V / 0-0.5 A
One fixed output: 5 V / 1 A
Independent, floatable outputs
Independent, series, back-to-back, and parallel connections
Short circuit protection
Overheating protection
Separate analog displays for the voltage and current; switchable to any of the outputs
Individual variable voltage controls
Binding post outputs and separate grounding post
Easily accessible fuse on front panel
All-metal casing

View Product Details

List Price: $250.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Power Supply Kits

for the Global Specialties 1301

Cal Test CT4041 Power Supply Accessory Kit ( rated for up to 20amps ) Get the most...

Catalog: CT4041

(24)

In Stock!

Add to Cart

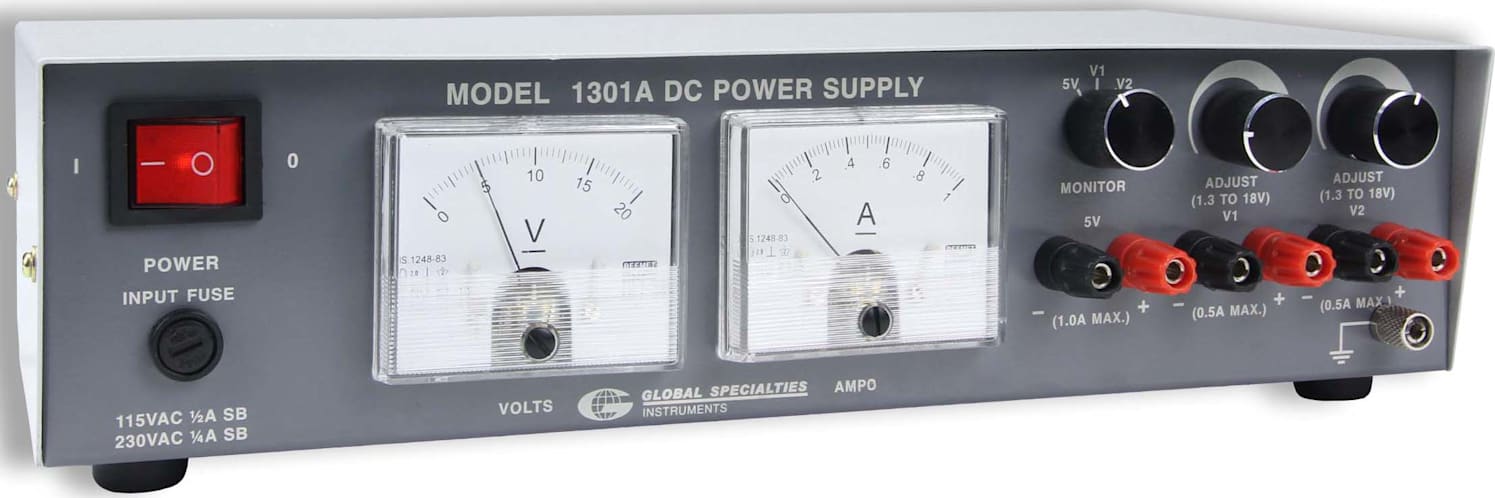

Global Specialties 1301 Triple Output DC Power Supply

1301 DC Power Supplies Global Specialties
Two variable outputs: 1.8-18 V / 0-0.5 A
One fixed output: 5 V / 1 A
Independent, floatable outputs

The 1301 is an excellent general purpose power supply for engineering lab applications and it is ideal for computer testing and servicing. It can be used for breadboarding and prototyping. The ammeter allows the user to determine the power supply requirements of the circuit being evaluated.

Priced economically, the power supply is practical for production lines, schools, service shops, hobbyists, and wherever a compact, reliable DC power supply is needed.

General Specifications
Power requirements	105-135 VAC, 57-63 Hz fused at 0.5 A (216-250 VAC, 50-60 Hz fused at 0.25 A model available)
5V
Voltage	5 V (±0.2 V) fixed
Current	1.0 amp maximum (current-limited)
Regulation	Line: ≤ 10 mV @ 1 A (105 to 129 VAC) Load ≤ 50 mV (25-100% full load) Temperature: ±0.02%/°C
Rippie	Less than 5 mVP-P
V₁
Voltage	1.3VDC to 18 VDC (continuosly variable)
Current	0.5 A maximum at 15 VDC
Regulation	Line: ≤ 30 mV @ 0.5 A (105 to 129 VAC) Load ≤ 150 mV (25-100% full load) Temperature: ±0.04%/°C
Rippie	Less than 10 mVP-P
V₂
Voltage	1.3VDC to 18 VDC (continuosly variable)
Current	0.5 A maximum at 15 VDC
Regulation	Line: ≤ 30 mV @ 0.5 A (105 to 129 VAC) Load ± 150 mV (25-100% full load) Temperature: ±0.04%/°C
Rippie	Less than 10 mVP-P
Controls	POWER ON with indicator light, variable Adjust (V₁), variable Adjust (V₂) Monitor (5 V, V₁, V₂)
Monitors	Two meters display the voltage and current of the output selected by the Monitor switch. Voltage meter range is 0-20 V. Current meter range is 0-1 A. Accuracy ±5% of full scale.
Short Circuit Protection	Current limited (external short ciruit will not damage power supplies)
Line Cord	3 Wire
Dimensions	4 x 14 x 17 inches H x W x D (102 x 356 x 178 mm)
Stock No	05-1301
Weight	5 lbs (2.27 kg)
