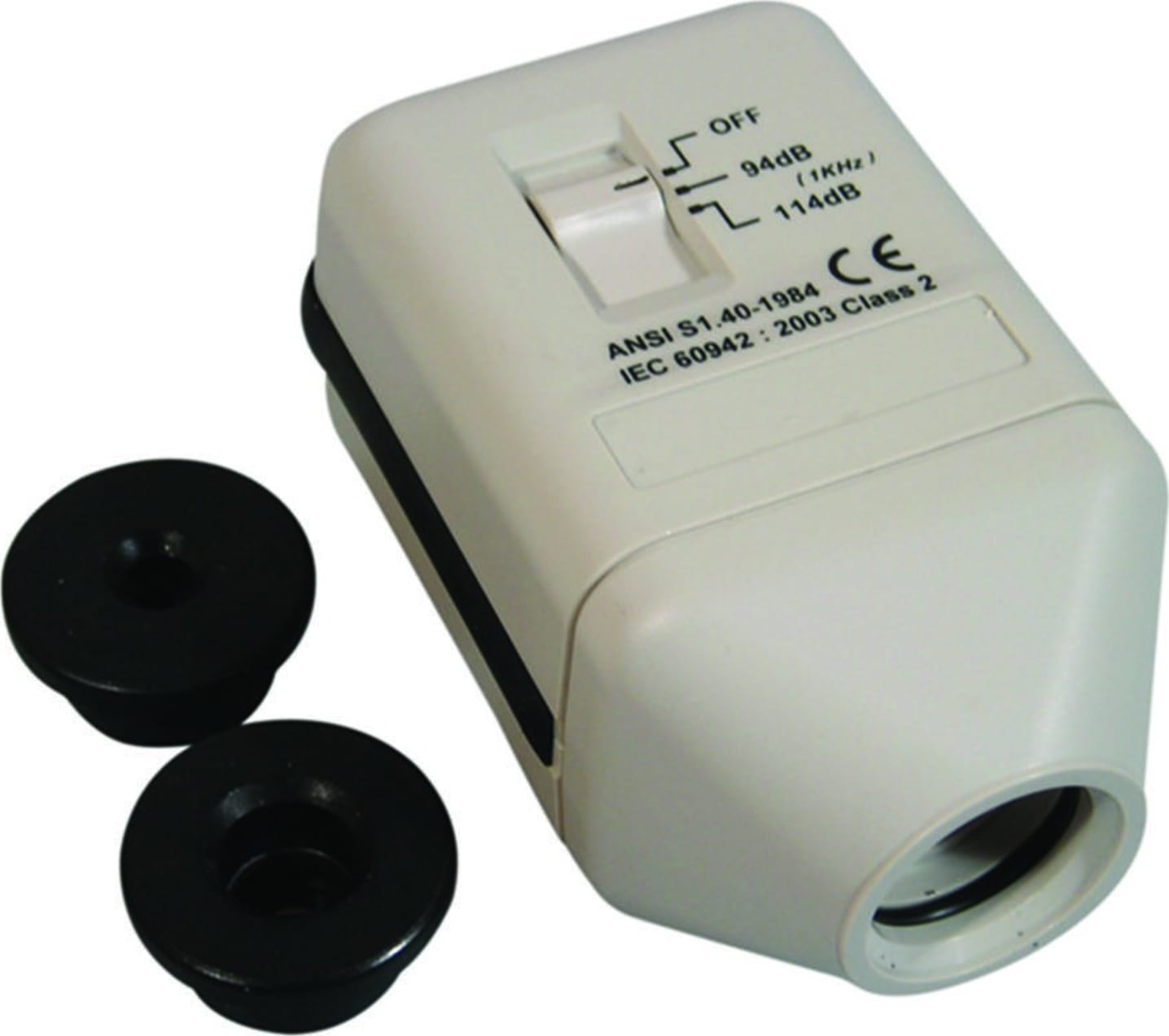

General Tools SCAL1356 - Sound Level Calibrator

Name: General Tools SCAL1356 - Sound Level Calibrator
Brand: General Tools
SKU: GeneralSCAL1356
Price: 247.01 USD
Availability: InStock

0 reviews | UPC: 681035410189 | Model: General Tools SCAL1356

Compare

Optional Calibrator for SC941 Sound Level Probe

Output sound pressure levels: 94dB and 114dB at reference conditions (74°F/23°C, 50%RH, 1013hpa atmospheric pressure)
Output sound pressure accuracy: ±0.5 dB
Output frequency: 1000 Hz ±2%
Total harmonic distortion (THD): <3%
Operating temperature: 32° to 140°F (0° to 40°C) @ <90% RH
Two output levels: 94dB and 114dB
Compatible with 1 in. and 1/2 in. microphones
Conforms to ANSI S1.4-1984 and IEC 60942:2003 Class 2
1-year limited warranty

View Product Details

List Price: $306.30

In Stock:

View Payment Options

Recommended for you

General Tools SCAL1356

Two output levels: 94dB and 114dB
Total harmonic distortion (THD): <3%
Compatible with 1 in. and 1/2 in. microphones
Conforms to ANSI S1.4-1984 and IEC 60942:2003 Class 2

Optional Calibrator for SC941 Sound Level Probe

The #SCAL1356 can calibrate the sound level probe available as an optional accessory for the #DLAF930SD data logging environment meter.

Specifications
Output Sound - Pressure Levels	114dB and 94dB re uPa under reference conditions.
Output Frequency	1000Hz ± 2%
Reference Conditions
1-Temperature	20C (68F)
2-Relative Humidity	65%
3-Atmospheric Pressure	1013mbar
Temperature coefficient	± 0.02dB/C
Total Harmonic Distortion	<2%
Accuracy of Sound-Pressure Level	Under stated reference environment conditions ± 0.5dB
Power	1 "9Volt" battery 006P or IEC 6F22 or NEDA 1604
Battery Life	Approcimately 20 hours. (Alkaline Battery)
Battery Test	Internal circuitry checks condition of battery continuously. Calibrator will not operate at all if battery voltage falls below acceptable range.
Operating Temperature & Humidity	-10~50°C (14~122°F), 0~90% RH
Storage Temperature & Humidity	-10~60°C (14~140°F), 10~70% RH

Tech Specs

Environmental Testers / Physical Property/Sound Level Meters Template
Minimum Sound Level	94 dB
Maximum Sound Level	114 dB
Display (Sound Level Meter)	Analog
Single Range	Yes
Dual Range	No
A Frequency Weighting	No
B Frequency Weighting	No
C Frequency Weighting	No
Frequency Range Max	1000 Hz
Calibrator Capability	Yes
Vibration Measurement	No
Noise Level Measurement	No
Fast/Slow Time Adjustment	No
Min/Max Display	No
Tripod Mount	No
Type (Sound Level Meter)	II
Test Equipment General Attributes
Unique Features	Conforms to ANSI S1.40-1984 and IEC0942:2003 Class 2 Calibration Levels of 94dB and 114dB Fits 1", 1/2" and 1/4" diameter microphones
Safety Approval	RoHS
Product Weight	0.37 LBS Product Weight Package weight
Product Height	1.7 IN
Product Length	4.4 IN
Product Width	2.4 IN
Shipping Weight	0.42 LBS
Data Logging	No
HTS/Schedule B Number	9027.89.8090
ECCN Number	3A992
Country of Origin	United States
Shipping Height	2 IN
Shipping Length	5.06 IN
Shipping Width	2.76 IN
