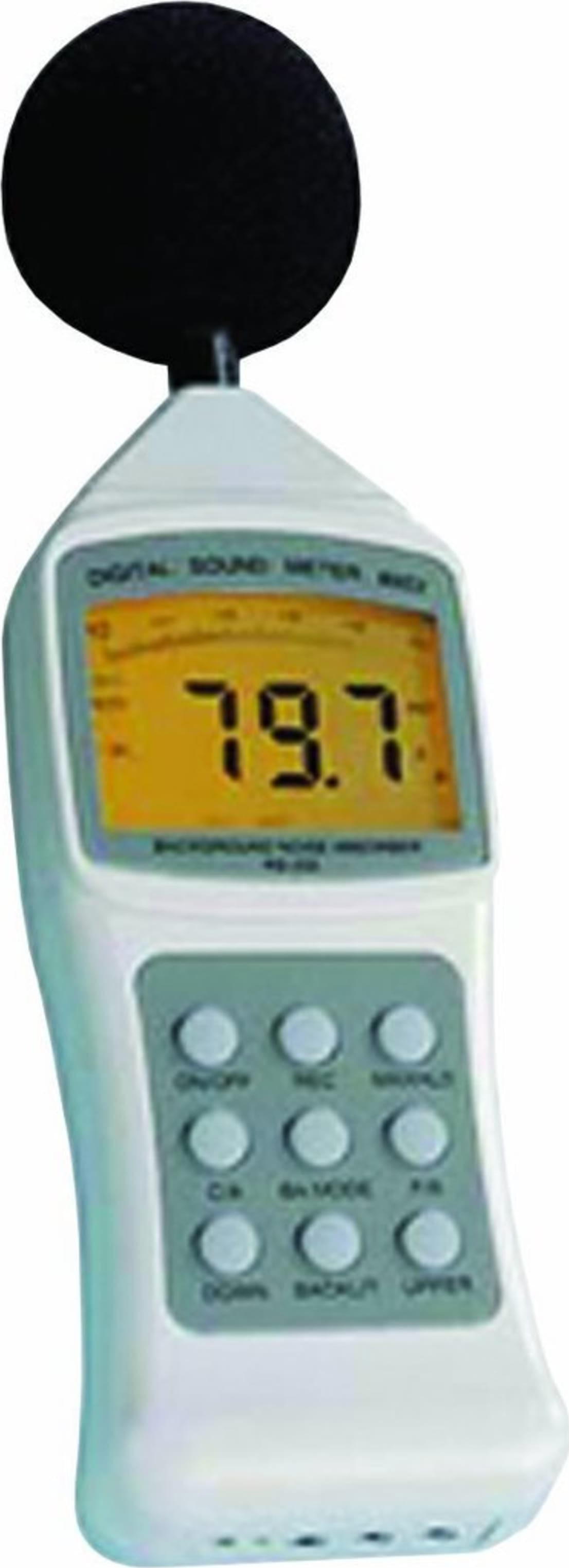

General DSM8922 Digital Sound Meter, Backlight and RS-232 Output

Name: General DSM8922 Digital Sound Meter, Backlight and RS-232 Output
Brand: General Tools
SKU: GeneralDSM8922
Price: 197.54 USD
Availability: InStock

0 reviews | UPC: 681035410202 | Model: General Tools DSM8922

Compare

DIGITAL SOUND METER WITH BACKLIGHT, LO/HI RANGE TO 130dB, HARD BLOW MOLD CASE & RS232 OUTPUT (REPlACE WITH DSM20)

Min/max record with max. hold
Fast or slow response time
A and C weighting selectable
Manual or automatic range
Background noise absorber
Jumbo 3-1/2 digit LCD display with bar graph
Meets IEC651, ANSI S1.4 type 2 standards
Optional RS-232 interface and Windows&174; software available (Model RS232KIT)

View Product Details

List Price: $263.39

In Stock:

View Payment Options

Recommended for you

Specifications
Range	30 to 130 dB
Frequency range	31.5 Hz to 8 KHz
Accuracy	±1.5 db
Resolution	0.1 db
Sensor	0.25” electret condenser microphone
Power	1 “9-volt” battery (with DC 9V output)
LCD size	2.5” x 1.65”
Dimensions	11” x 3” x 1.5”
Weight	10.3 oz.

Tech Specs

Environmental Testers / Physical Property/Sound Level Meters Template
Minimum Sound Level	30 dB
Maximum Sound Level	130 dB
Display (Sound Level Meter)	Digital
Single Range	Yes
Dual Range	No
A Frequency Weighting	Yes
B Frequency Weighting	No
C Frequency Weighting	Yes
Frequency Range Max	8 kHz (8000 Hz)
Resolution (Sound Level Meters)	0.1 dB
Accuracy	±1.5 dB
Calibrator Capability	No
Vibration Measurement	No
Noise Level Measurement	No
Fast/Slow Time Adjustment	Yes
Min/Max Display	Yes
Tripod Mount	No
Type (Sound Level Meter)	II
Test Equipment General Attributes
Unique Features	Min/max record with max. hold Fast or slow response time A and C weighting selectable Manual or automatic range Background noise absorber Jumbo 3-1/2 digit LCD display with bar graph Meets IEC651, ANSI S1.4 type 2 standards Optional RS-232 interface and Windows&174; software available (Model RS232KIT)
Warranty	1 YEARS
Safety Approval	RoHS
Interfaces I/O	Analog Output, RS-232 Interfaces I/O AC and DC analog output
Product Weight	10.3 OUNCES (0.644 LBS) Product Weight 240gr.
Product Height	1.5 IN
Product Length	11 IN Product Length 80mm x 256mm x 38mm
Product Width	3 IN
Data Logging	No
HTS/Schedule B Number	9025.80.5000
ECCN Number	3A992
Battery Type	AAA
Power Supply Voltage	Battery Powered
