General Tools DLM112SD - Light Meter with Excel Formatted Data Logging SD Card

Name: General Tools DLM112SD - Light Meter with Excel Formatted Data Logging SD Card
Brand: General Tools
SKU: GeneralDLM112SD
Price: 246.20 USD
Availability: InStock

0 reviews | UPC: 681035014592 | Model: General Tools DLM112SD

Compare

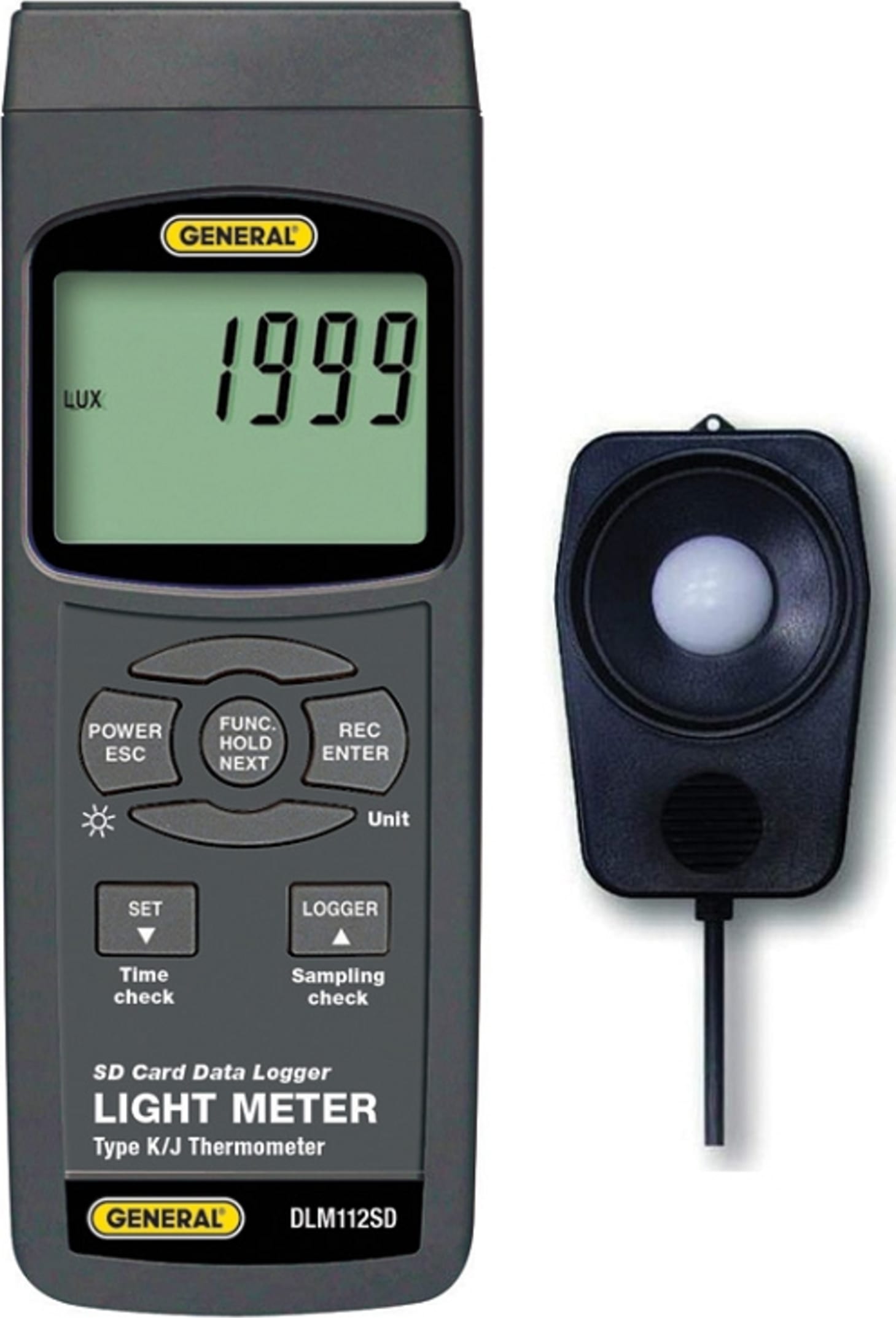

General DLM112SD Data Logging Light Meter with SD Card

Includes the replaceable #P112SD light probe
"K/J" port with automatic temperature compensation (ATC) for measuring surface temperature using an optional Type "K" or "J" thermocouple probe
Lux/foot-candle and °F/°C switches
Min/max memory + data hold
Large backlit LCD
Auto power off (can be disabled for data logging)
Tripod mount
1-year limited warranty

View Product Details

List Price: $305.30

Your Price: $246.20

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

General Tools DLM112SD Accessories

Choose a Category

Temperature Probes

for the General Tools DLM112SD

General Tools TPK03 General Tools, TPK03 Surface Sensor K Type Probe with Cord

Catalog: TPK03

(0)

In Stock!

Add to Cart

General Tools TPK05 Type "K" Piercing Thermocouple Probe with Extendable Cord

Catalog: TPK05

(0)

In Stock!

Add to Cart

General Tools DLM112SD

Light measurement accuracy: ±(4% of full-scale value + 2 digits)
Light measurement resolution (max): 1 lux (0.1 foot-candle)
"K/J" port measurement range: -148° to 2372°F (-100° to 1300°C) with Type "K" thermocouple; -148° to 2012°F (-100° to 1100°C) with Type "J" thermocouple
"K/J" port measurement accuracy/resolution: ±0.4% of reading/0.1°
Data logging sampling time: Adjustable from 1 second to 1 hour
LCD size: 2.05 x 1.5 in. (52 x 38mm)

Light Meter with Excel Formatted Data Logging SD Card

The #DLM112SD can measure and log light intensity in lux or foot-candles within three automatically switched ranges. Applications include OSHA compliance, industrial/commercial photography/videography and surveillance/security.

Applications

OSHA compliance
Industrial/commercial photography/videography
Construction
Engineering
Surveillance/security

Specifications
Embedded Microcontroller	Custom one-chip LSI device
Display Type	LCD with green backlight
Display Size	2.05 x 1.5 in. (52 x 38mm)
Full-Scale Ranges	0 to 1,999 lux (0 to 186 ft-cd) 1,800 to 19,990 lux (167 to 1,860 ft-cd) 18,000 to 99,900 lux (1,670 to 9,290.7 ft-cd)
Measurement Accuracy	± 4% of full-scale reading + 2 digits for all lux readingsand ft-cd readings at 200 ft-cd full-scale (f.s.) ± 4% of f.s. reading + 2 ft-cd at 2,000 ft-cd f.s. ±4% of f.s. reading + 20 ft-cd at 20,000 ft-cd f.s.
Measurement Resolution	1 lux at 2,000 lux f.s. 10 lux at 20,000 lux f.s. 100 lux at 100,000 lux f.s. 0.1 ft-cd at 200 ft-cd f.s. 1 ft-cd at 2,000 ft-cd f.s. 10 ft-cd at 10,000 ft-cd f.s.
Storable/Recallable Readings	Maximum, minimum
Data Logging Sampling Time	1 second to 1 hour
SD Card Capacity	1 GB to 16 GB
Settable Parameters	Date, time, auto power off, beep sound, temperature unit (°F or °C), sampling time, thermocouple type (K or J), decimal point or comma
Operating Temperature	32°to 122°F (0°to 50°C)
Power Supply	Six Alkaline “AA” batteries or optional 9-VDC AC adapter
Power Consumption	6.5 mADC (normal operation, with backlight off and SD card not saving data) 30 mADC with backlight on

Tech Specs

Test Equipment General Attributes
Warranty	1 YEARS
Storage	SD Card
Product Weight	1.08 LBS
Product Height	1.77 IN
Product Length	6.97 IN
Product Width	2.68 IN
HTS/Schedule B Number	9025.80.5000
ECCN Number	3A992
Battery Type	AA
Power Supply Voltage	Battery Powered
