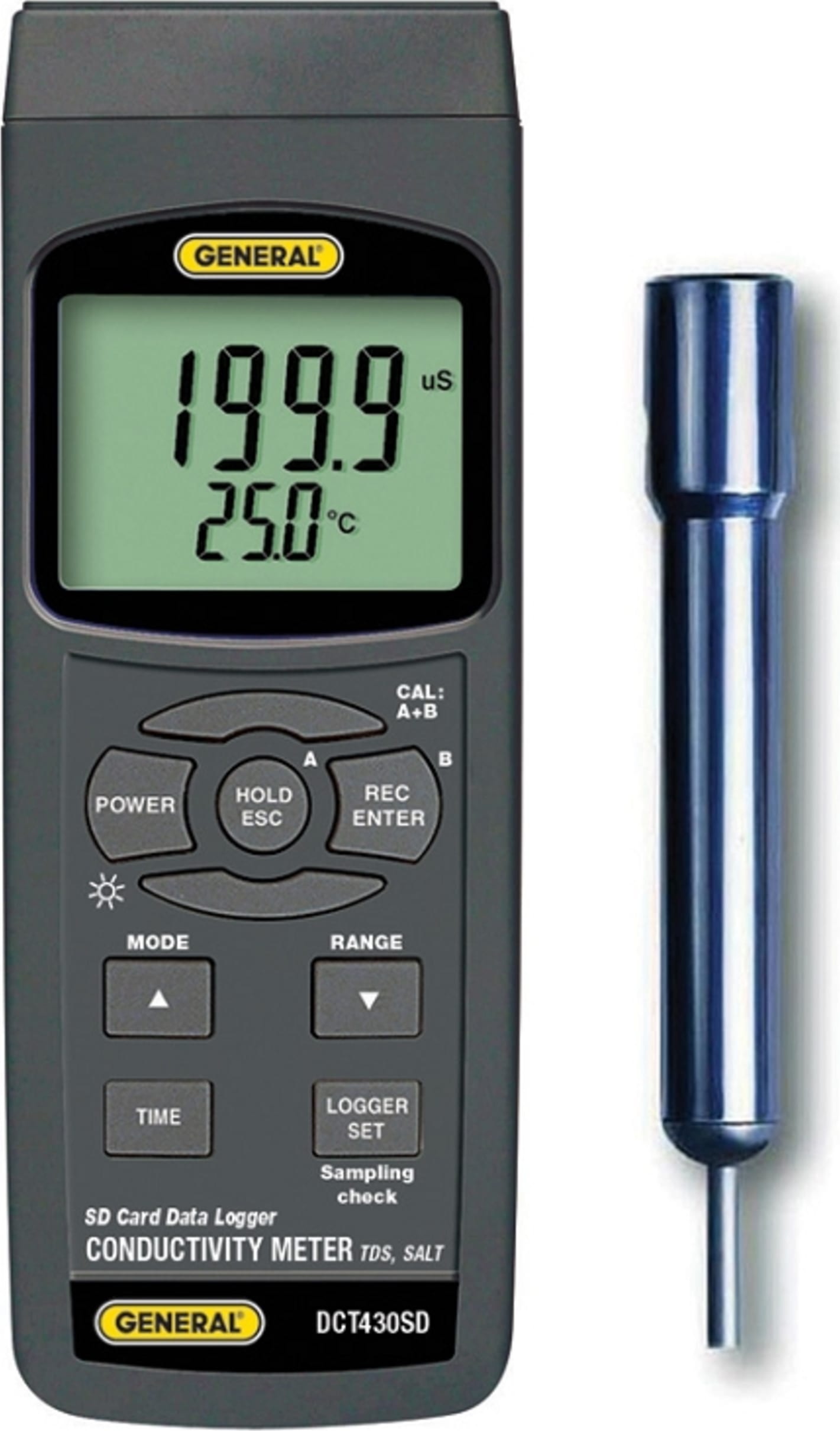

General Tools DCT430SD - Datalogging Conductivity TDS Meter

Name: General Tools DCT430SD - Datalogging Conductivity TDS Meter
Brand: General Tools
SKU: GeneralDCT430SD
Price: 369.71 USD
Availability: InStock

0 reviews | UPC: 681035014578 | Model: General Tools DCT430SD

Compare

General DCT430SD Conductivity Meter with SD Card

Includes the Conductivity-TDS-Salt Probe
Measures and displays ambient temperature
Auto ranging (default) or manual ranging on conductivity and TDS scales
Conductivity measurements are automatically compensated for temperature. They are also calibratable by standard 1.413 mS and 12.88 mS (MilliSiemens) and 80 μS (MicroSiemens) conductivity solutions
Min/Max memory + data hold
Backlit 4-digit dual-readout LCD
Min/max memory + data hold
Auto power off (can be disabled for data logging and calibration)
Tripod mount
Auto power off function

View Product Details

List Price: $458.45

Your Price: $369.71

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

General Tools DCT430SD Accessories

Choose a Category

Temperature Probes

for the General Tools DCT430SD

General Tools CDPB03 General Tools, CDPB03 Conductivity/TDS/Salt Replacement Probe

Catalog: CDPB03

(0)

In Stock!

Add to Cart

General Tools DCT430SD

Measures and displays ambient temperature
Sensors calibrated by a single push of a button
Ten different pressure units selectable via front panel
Auto power-off function

Datalogging Conductivity TDS Meter

General Tools DCT430SD Data Logging Conductivity Meter with SD Card accurately measures any solution’s conductivity, total dissolved solids (TDS), salt content and temperature. This data logging conductivity meter with SD card unique feature is its patented technique for storing sampled data in Excel format on removable SD memory cards.

Optional Accessories:

9VDC adapter for 110V power supply (General P/N AC1)
SDRD1 - SD Card Reader

Specifications
Embedded Microcontroller	Custom one-chip LSI device
Display Type	LCD with green backlight
Display Size	2.05 x 1.5 in. (52 x 38mm)
Parameters (units) Measured	Conductivity (uS, mS) Total dissolved solids (ppm) Salt content (% weight) Temperature (°F, °C)
Measurement Accuracy	For conductivity: +- 2% of full-scale reading +1 digit, TDS For temperature: ± 0.8°C/± 1.5°F For salt: ±0.5% of value
Measurement Resolution	For Conductivity: 0.1 uS @ 200 uS full-scale (f.s.), 0.001 mS @ 2 mS f.s., 0.01 mS @ 20 mS f.s., 0.1mS @ 200 mS f.s. For TDS: 0.1 ppm @200 ppm f.s., 1 ppm @ 2,000 ppm f.s.,10 ppm @ 20,000 ppm f.s. 100 ppm @ 100,000ppm f.s For Temperature: 0.1°F/0.1°C For Salt: 0.01%
Storable/Recallable Readings	Maximum, minimum
Data Logging Sampling Time	1 second to 9 hours
SD Card Capacity	1 GB to 16 GB
Settable Parameters	Date, time, auto power off, beep sound, sampling time, decimal point or comma decimal division, temperature unit, temperature compensation level
Operating Temperature	32°to 122°F (0° to 50°C) for meter 32°to 140°F (0°to 60°C) for probe
Power Supply	Six Alkaline “AA” batteries or optional 9-VDC AC adapter

Tech Specs

Test Equipment General Attributes
Safety Approval	CE, RoHS
Interfaces I/O	RS-232
Product Weight	1.08 LBS
Shipping Weight	1.2 LBS
HTS/Schedule B Number	9026.10.2080
ECCN Number	EAR99
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
