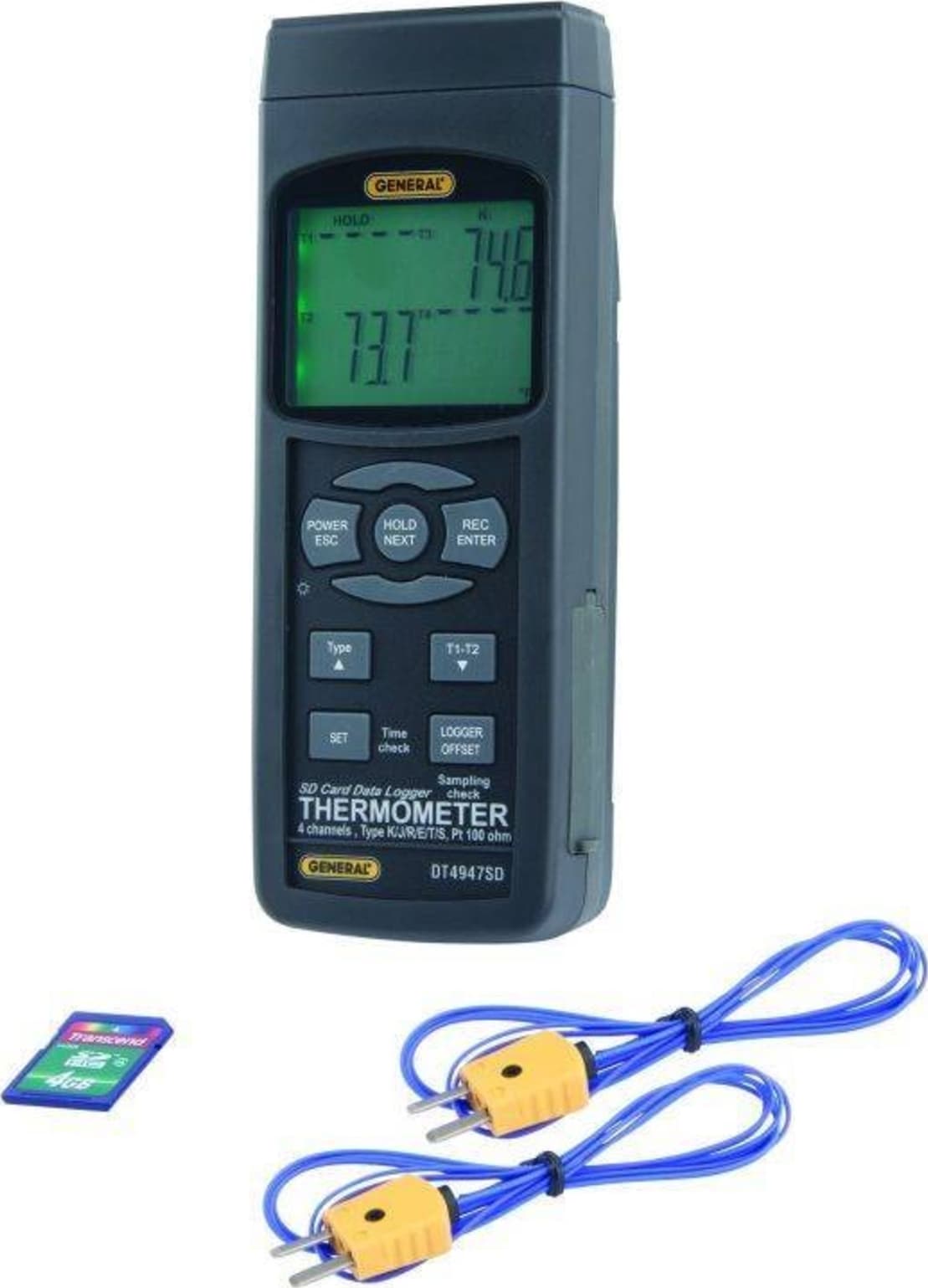

General DT4947SD - Data Logging 4 Channel Thermometer with SD Card, Max Temperature 3092°F

Name: General DT4947SD - Data Logging 4 Channel Thermometer with SD Card, Max Temperature 3092°F
Brand: General Tools
SKU: GeneralDT4947SD
Price: 247.01 USD
Availability: InStock

0 reviews | UPC: 681035014622 | Model: General Tools DT4947SD

Compare

General DT4947SD Digital K Type Thermometer with 4 Channels, and SD Card capability

Also measures the T1-T2 difference between any two channels
Works with and automatically temperature-compensates for six popular thermocouple types: "K", "J", "T", "E", "S" and "R"
Combining thermocouple types extends the overall measurement range to -148° to 3092°F (-100° to 1700°C)
The therrmocouple port also accepts PT 100 O resistance-temperature detectors (RTDs); optional #RTDTP100 is available
Includes two #TPK500 thermocouple probes
Can automatically log four channels of data every day during same period (loop data recording)
Big (2.5 in. diagonal) front-panel green backlit LCD is easy to read
Min/Max memory + data hold
Sampling time is settable from one second to one hour
1-year limited warranty

View Product Details

List Price: $306.30

Your Price: $247.01

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	General Tools DT4947SD General DT4947SD Digital K Type Thermometer with 4 Channels, and SD ...	General Tools DT4208SD 12-Channel Thermocouple Thermometer with Excel-formatted Data Loggi ...
Price
In Stock
Type	E, J, K, Other, S, T	E, J, K, Other, S, T
Max Temperature	3092 F (1700 C)	3092 F (1700 C)
Min Temperature	-148 F	-148 F
Compare	Add to compare	Add to compare

Recommended for you

General Tools DT4947SD Accessories

Choose a Category

Batteries and Chargers
Temperature Probes

for the General Tools DT4947SD

General Tools AC1 AC Adaptor to 9V DC

Catalog: AC1

(0)

In Stock!

Add to Cart

General Tools TPK500 General-Purpose Type "K" Bead Thermocouple Probe

Catalog: TPK500

(0)

In Stock!

Add to Cart

General Tools DT4947SD

Overall measurement range to -148° to 3092°F (-100° to 1700°C)

Also measures the T1-T2 difference between any two channels

Works with and automatically temperature-compensates

The thermocouple port also accepts PT 100 Ω resistance-temperature

Data Logging 4 Channel Thermometer with SD Card, Max Temperature 3092°F

The #DT4947SD 4-Channel Thermocouple Thermometer with Excel-formatted Data Logging SD Card is ideal for simultaneously monitoring up to four temperatures in a commercial or industrial setting—such as food or chemical processing, HVAC/R, power generation or paper production.

PROP 65 WARNING: This product can expose you to chemicals including di2-ethylhexylphthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications
Display	2.05 x 1.5 in. (52 x 38mm) LCD
Measurement Range	With Pt 100 ohm RTD: -327° to 1562°F With thermocouples: depends on type
Measurement Accuracy	With Pt 100 ohm probes: ± (0.4% of reading + 1.8°F) from -327° to 999.9°F, ± (0.44 % of reading + 2.0°F) from 1000° to 1562°F) With thermocouples: ± (0.4% of reading + 2.0°F max)
Data Logging Sampling Time	1 second to 1 hour
Settable Parameters	Date, time, decimal point or comma decimal division, auto power off, beep sound, temperature unit, sampling time Storable/Recallable Readings: Maximum, minimum
Operating Temperature	32° to 122°F (0° to 50°C)
Operating Relative Humidity	0 to 85%
Dimensions	6.97 x 2.68 x 1.77 in. (177 x 68 x 45mm)
Weight	1.13 lb. (515g)
Power Source	Six "AA" batteries (not included) or optional 9-VDC AC adapter

Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ
Type	E, J, K, Other, S, T Type r
Max Temperature	3092 F (1700 C)
Min Temperature	-148 F Min Temperature -100°C
Power Source	AC Line
Accuracy	For Pt 100 ohm probes: ± (0.4% of reading + 1.8ºF) from -327º to 999.9ºF, ± (0.4% of reading + 2.0ºF) from 1000º to 1562ºF); for thermocouples: ± (0.4% of reading + 2.0ºF max)
LCD Screen	Yes
Software Included	No
Test Equipment General Attributes
Unique Features	Four independent temperature measurement channels Also measures T1-T2 difference between two channels Works with and automatically temperaturecompensates for six popular thermocouple types: K, J, T, E, S and R Combining thermocouple types extends overall measurement range to -148° to 3092°F (-100° to 1700°C) Big (2.5 in. diagonal) front-panel green backlit LCD is easy to read
Warranty	1 YEARS
Storage	SD Card
Product Weight	1.13 LBS Product Weight 515gr.
Product Height	1.77 IN
Product Length	6.97 IN Product Length (177 x 68 x 45mm)
Product Width	2.68 IN
Shipping Weight	1.29 LBS
Data Logging	Yes
HTS/Schedule B Number	9031.80.8085
ECCN Number	3A992
Country of Origin	United States
Shipping Height	2.60 IN
Shipping Length	10.70 IN
Shipping Width	5.75 IN
