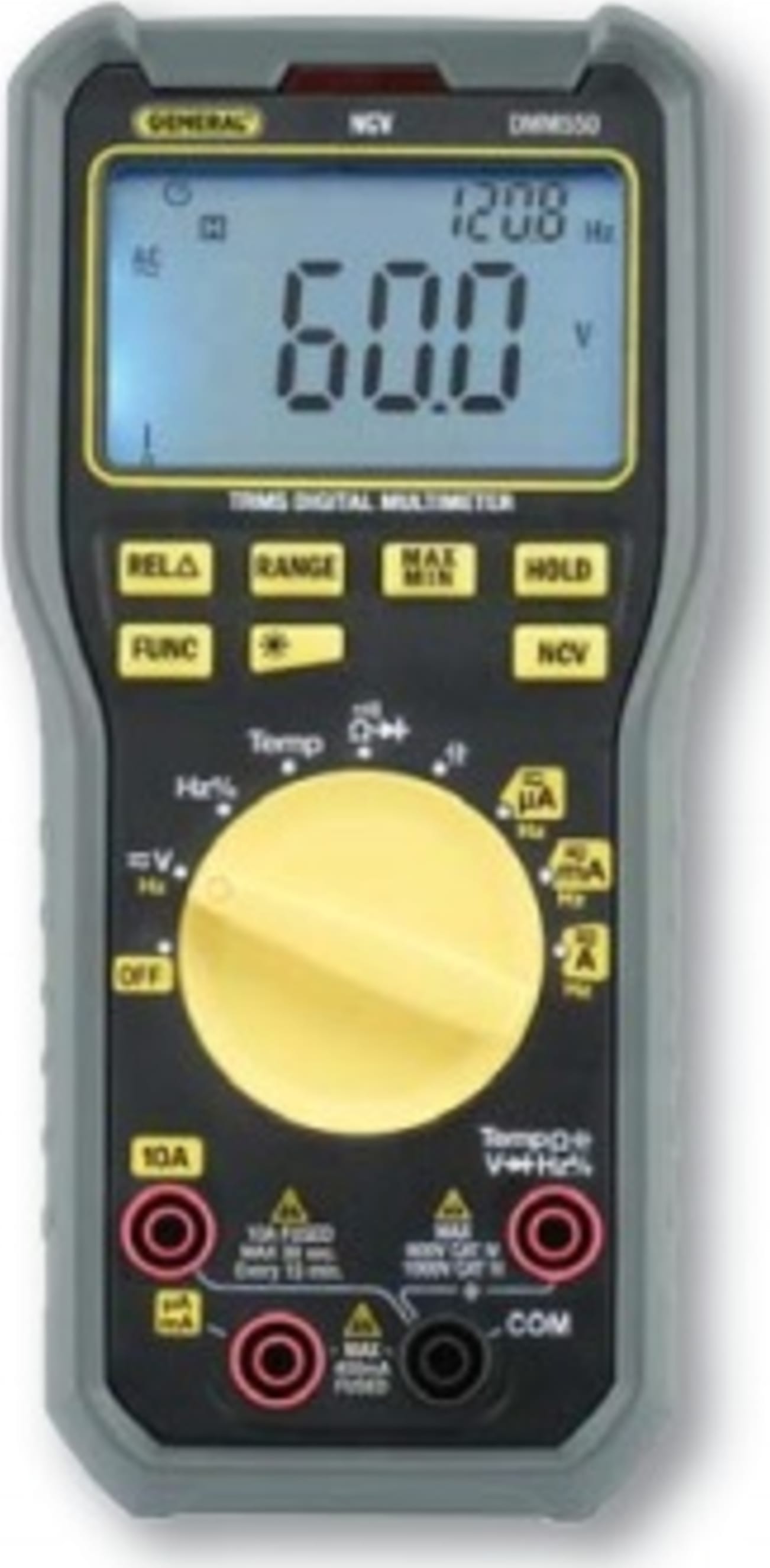

General Tools DMM550 Rugged True RMS Multimeters with NCV

Name: General Tools DMM550 Rugged True RMS Multimeters with NCV
Brand: General Tools
SKU: GeneralDMM550
Price: 64.00 USD
Availability: InStock

0 reviews | UPC: 681035016831 | Model: General Tools DMM550

Compare

General Tools, DMM550 18-Function Rugged True RMS Multimeter w/ NCV Detection

18 functions, 48 ranges (DMM550)
Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle
Also measures temperature from 32° to 1832°F (0° to 1000°C) with included “K” type stem thermocouple
Checks continuity and diode integrity
True RMS measurements
IP54 water/dust/oil protection
6 ft. (1.8m) drop-resistant
Designed to meet CAT III 1000V, CAT IV 600V safety standard
Auto or manual ranging
Non-contact voltage (NCV) detection
Lo-Z (low-impedance) mode; avoids “ghost” AC voltage readings due to capacitive coupling of voltage from power supply conductors onto adjacent unused conductors (DMM570 only)
Fast-response analog bar graph at bottom of LCD: 66 segments (DMM570), 40 segments (DMM550)
Hold, Max, Min, Rel (Zero) display options
Auto Power Off (can be disabled)
Magnetic hanging strap (DMM570 only)
CE approved
ETL certified

View Product Details

List Price: $89.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

DMM Probe Kits
General Accessories

for the General Tools DMM550

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

General Tools FX3000 General Tools FX3000 Flex Clamp Adapter

Catalog: FX3000

(0)

In Stock!

Add to Cart

DC Voltage Range / Accuracy	0 to 1000V / ±0.5% typical
AC Voltage Range / Accuracy	0 to 750V (True RMS) / ±1.5% typical
DC Current Range / Accuracy	0 to 10A / ±1% typical
AC Current Range / Accuracy	0 to 10A / ±1.5% typical
Resistance Range / Accuracy	0 to 66MΩ (DMM570), 0 to 40MΩ (DMM550) / ±0.8%
Frequency Range / Accuracy	0 to 66MHz (DMM570), 0 to 40MHz (DMM550) / ±1.5%
Capacitance Range / Accuracy	0 to 66mF (DMM570), 0 to 40mF (DMM550) / ±3%
Temperature Range / Accuracy	32° to 1832°F (0° to 1000°C) / ±1%
Duty Cycle Range / Accuracy	10 to 95% / ±2%
NCV Detection Range	>110VAC
Overload Protection Level in Voltage and Current Modes	1000V
Overload Protection Level in Resistance, Frequency, Continuity, Diode Integrity and Capacitance Modes	250VAC/DCRMS
Input Impedance	10MΩ in all modes (except 400kΩ in DMM570 Lo-Z mode)
Auto Power Off Trigger	15 minutes of front-panel inactivity
Operating Temperature	32° to 104°F (0° to 40°C)
Dimensions	6.9 x 3.3 x 2.1 in. (176 x 84 x 54mm)
Weight	13.4 oz. (380g)
Power Source	“9V” battery (included)

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	750 V
Maximum Voltage DC	1000 V
Maximum Current AC	10 A
Minimum Current AC	0 mA
Maximum Current DC	10 A
Minimum Current DC	0 mA
Basic Accuracy V DC	±0.5%
# Digit Display	3.5
Counts	4000 .
Manual/Autoranging	Both
Decibels	Yes
Resistance	Yes
Frequency	Yes
Capacitance	Yes
Temperature	Yes
CAT Rating	III CAT Rating CAT IV
CAT Voltage	1,000 V, 600 V
Overload Protector	Yes
Data Hold	Yes
Duty Cycle %	10 to 95% / ±2%
Test Equipment General Attributes
Warranty	3 YEARS Warranty Limited
Safety Approval	CE, ETL
IP Rating	IP54
Product Weight	380 GRAMS (0.838 LBS)
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	United States
UPC	016831
Other Information	Dimensions: : 6.9 x 3.3 x 2.1 in.
