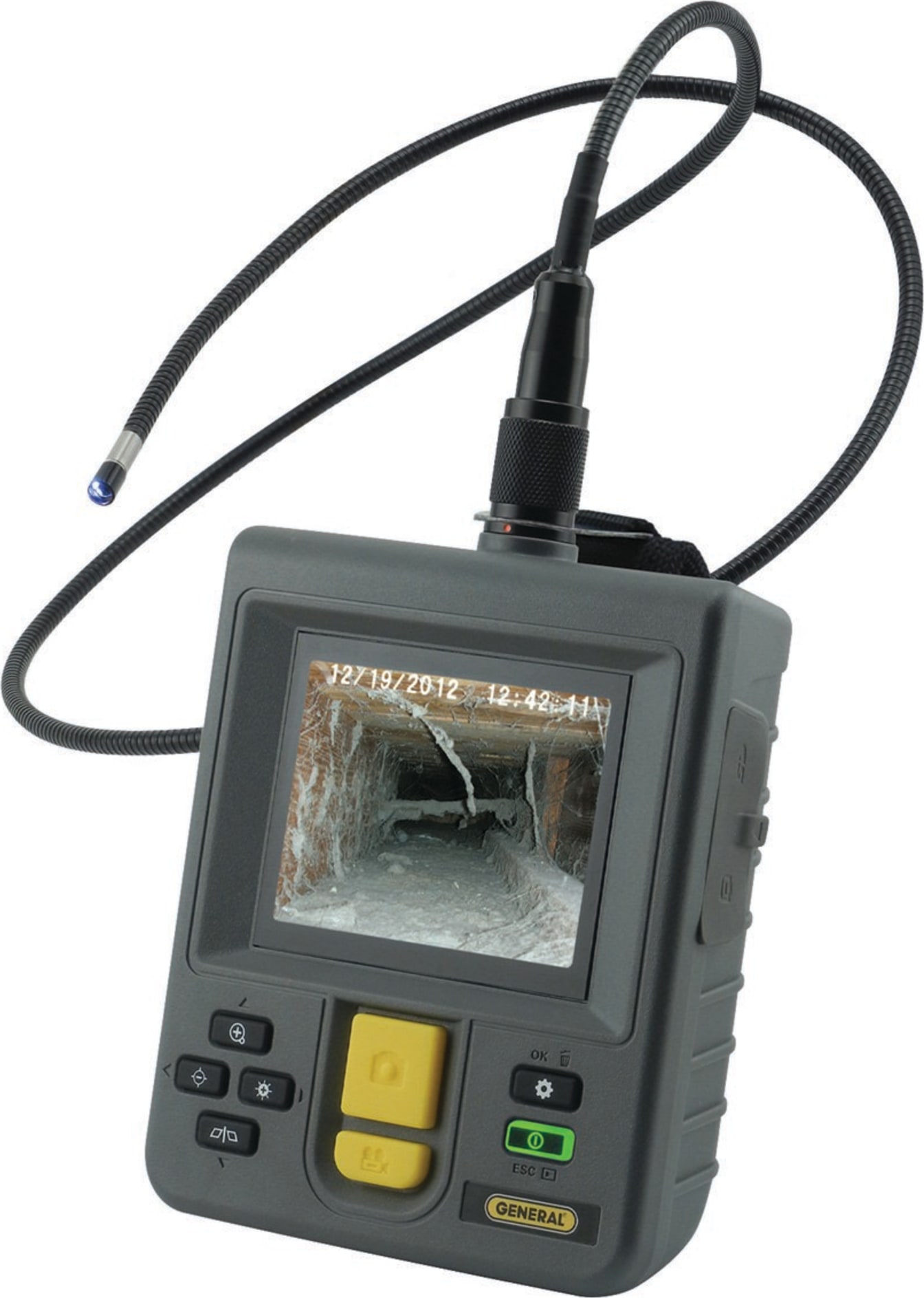

General DCS800 - Rugged Compact High-performance VGA Recording Video Borescope System

Name: General DCS800 - Rugged Compact High-performance VGA Recording Video Borescope System
Brand: General Tools
SKU: GeneralDCS800
Price: 369.71 USD
Availability: InStock

0 reviews | UPC: 681035016282 | Model: General Tools DCS800

Compare

General DCS800 Rugged VGA Recording Video Borescope System

DCS800 Video Borescope Handheld Recording Console
3.5 in. (89mm) diagonal LCD
39 in. (1m) long, 0.22 in. (5.5mm) diameter flexible-obedient probe with 320 x 240 pixel resolution camera lit by four LEDs
Probe and stainless steel camera head are IP67 water, oil and dust-proof. Console is rated IP55 but is 1m (39 in.) drop-proof
Grip accepts dozens of other QVGA and VGA (640 x 480 pixel) resolution probes of various lengths and diameters to suit special applications
Records VGA or QVGA resolution video clips and still images using familiar menu-driven user interface. Saved video and photo files incorporate real-time brightness, zoom and mirroring adjustments made prior to recording or on the fly to optimize target clarity and detail
Three options for mirroring live video: horizontal, vertical, or both
4GB SD memory card
Analog video out jack and cable with RCA plug
USB cable for uploading/viewing media on SD card to PC without ejecting card

View Product Details

List Price: $519.38

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Accessories
Borescope Probes and Camera Heads

for the General Tools DCS800

General Tools P16181HP General Tools, P16181HP VGA 640 x 480 Pixels Resolution Probe

Catalog: P16181HP

(2)

In Stock!

Add to Cart

General Tools P16183HP General Tools, P16183HP 0.22 in Diameter x 3 m Long VGA...

Catalog: P16183HP

(0)

In Stock!

Add to Cart

General Tools P16HP2ART General Tools, P16HP2ART 2 m Long x (0.23 In.) Diameter...

Catalog: P16HP2ART

(0)

In Stock!

Add to Cart

General Tools P16HP3ART General Tools, P16HP3ART 3 m Long x (0.23 In.) Diameter...

Catalog: P16HP3ART

(0)

In Stock!

Add to Cart

General Tools P16HPART General Tools, P16HPART VGA 640 x 480 Pixels Resolution...

Catalog: P16HPART

(0)

In Stock!

Add to Cart

General DCS800

Camera and Display Resolution: 320 x 240 pixels (QVGA)
Video Zoom Options: 3.0X, 5.0X
Probe Depth of Field: 0.25 to 12 in. (6.4 to 300mm)
Probe Field of View: 46° (horizontal), 34° (vertical), 56° (diagonal)

Rugged Compact High-performance VGA Recording Video Borescope System

DCS800 Video Borescope Handheld Recording Console.

Ideal for inspecting hard-to-reach and hard-to-see areas in the following industries: automotive, plumbing, construction and restoration, and hvac/r

Features

90 degree mirrored probe viewing tips
Adjustable Auto Power Off interval
Choice of 27 menu languages
Custom hard plastic carrying case
Powered by four AA Alkaline or rechargeable batteries
1 year limited warranty

Recommended Oscilloscope
Display Size, Type	3.5 in. (diagonal), color TFT LCD
Display Resolution	320 x 240 pixels (QVGA)
Probe Length, Type, Diameter	39 in. (1m), flexible-obedient, 0.22 in. (5.5mm)
Diameter of Camera Head with Thread Protector	0.23 in. (6mm)
System Ingress Protection	To water, oil & dust per IP55 standard
System Impact Resistance	Drop from height of 1m (39 in.)
Probe Camera Resolution	320 x 240 pixels (QVGA)
Probe Depth of Field	0.4 to 12 in. (10 to 300mm)
Probe Field of View	46o (horizontal), 34o (vertical), 56o (diagonal)
Camera Lighting	4 white LEDs
Console Recording Resolution	640 x 480 pixels (VGA)
Video File Format	avi
Photo File Format	.jpg
Video Zoom Options	3.0X, 5.0X
Interfaces	Analog video & USB 2.0 jacks
Video Out Formats	NTSC and PAL
Video Frame Rate	30 frames per second (fps)
Compression Format	Compatible with MPEG4
Recording Medium	Standard-size SD card of up to 32GB capacity
Probe Operating/Storage Temperature	-4° to 140°F (-20° to 60°C)
Console Operating Temperature	32° to 140°F (0° to 60°C)
Dimensions of Console	5.5 x 4.6 x 1.7 in. (140 x 116 x 42mm)
Weight of Console (without Batteries)	10.6 oz. (300g)
Power Source	(4) AA Alkaline or rechargeable Ni-MH batteries
Battery Life (typical)	4 hours operation

Tech Specs

Borescopes / Boroscopes/Video Borescopes Template
Shaft Length	1 M (39.37 IN)
Shaft Diameter	5.5 MM (0.0055 M)
Screen Size	3.5 IN
Detachable Screen	No
Screen Type	LCD
Video Resolution (Boroscopes)	640x480
Image Resolution	320x240
Digital Zoom X	5.0
Video Output Format	NTSC, PAL
IP Rating	IP67
Test Equipment General Attributes
Warranty	1 YEARS
Warranty Details	1 Year Limited Warranty
Interfaces I/O	Analog Output, USB
Storage	SD Card
Product Weight	10.6 OUNCES (0.662 LBS)
Product Height	5.5 IN
Product Length	4.6 IN
Product Width	1.7 IN
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	United States
