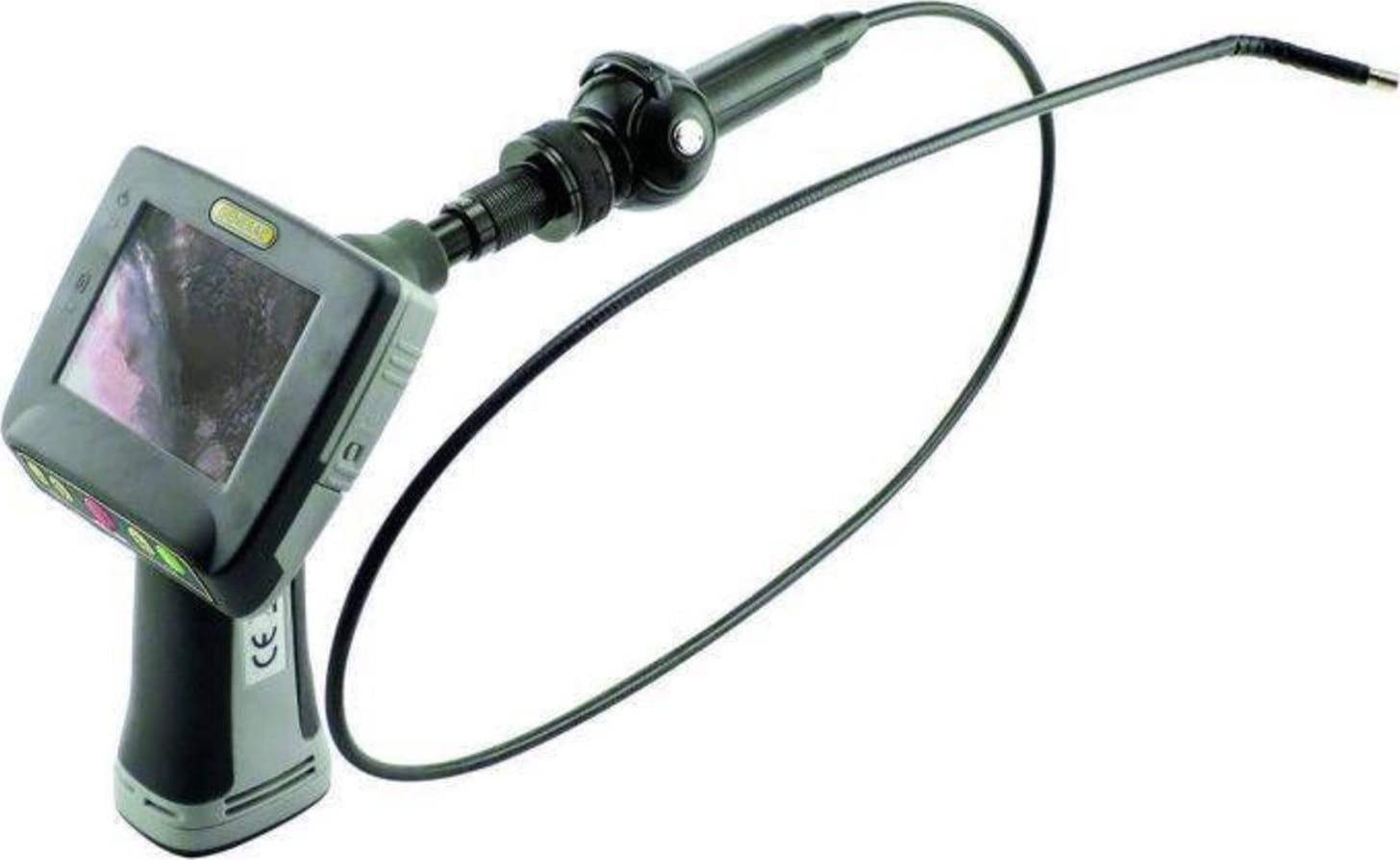

General Tools DCS665-ART - Waterproof Recording Video Inspection Borescope with 5.5mm Articulating Camera Tipped Probe

Name: General Tools DCS665-ART - Waterproof Recording Video Inspection Borescope with 5.5mm Articulating Camera Tipped Probe
Brand: General Tools
SKU: GeneralDCS665-ART
Price: 575.55 USD
Availability: InStock
Rating: 2.00 (2 reviews)

2 (2 Reviews) | UPC: 681035017432 | Model: General Tools DCS665-ART

Compare

Waterproof Recording Video Inspection Borescope with 5.5mm Articulating Camera Tipped Probe

The ability to change the probe’s viewing axis by up to 135° in two directions
Includes the 1m long x 5.5mm diameter close-focus articulating probe with an IP67 rating
VGA resolution (640 x 480 pixel) camera lit by four adjustable-brightness LEDs.
3.5 in. (89mm) diagonal color LCD
The monitor records VGA resolution video clips and saves still photos
Recorded media can be played back on the LCD
Video shown on the monitor can be zoomed up to 4X
Choice of five menu languages
1-year limited warranty

View Product Details

List Price: $713.69

Your Price: $575.55

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

General Tools DCS665-ART Accessories

Choose a Category

Probes

for the General Tools DCS665-ART

General Tools P605-1ART General Tools, P605-1ART VGA Resolution Soft Metal...

Catalog: P605-1ART

(0)

In Stock!

Add to Cart

General Tools P608-1SR 1m Long x 8mm Diameter Probe for DCS600 Series Video Inspection...

Catalog: P608-1SR

(0)

In Stock!

Add to Cart

General Tools P608-3SR 3m Long x 8mm Diameter Probe for DCS600 Series Video Inspection...

Catalog: P608-3SR

(0)

In Stock!

Add to Cart

General Tools P610-20PR 20m Long x 10mm Diameter Pipe & Duct Probe for DCS600 Series...

Catalog: P610-20PR

(0)

In Stock!

Add to Cart

General Tools DCS665-ART

The ability to change the probe’s viewing axis by up to 135° in two directions
Includes the 1m long x 5.5mm diameter close-focus articulating probe with an IP67 rating
VGA resolution (640 x 480 pixel) camera lit by four adjustable-brightness LEDs.
3.5 in. (89mm) diagonal color LCD

Waterproof Recording Video Inspection Borescope with 5.5mm Articulating Camera Tipped Probe

The #DCS665-ART Waterproof Recording Video Inspection Camera/Borescope is ideal for plumbing, automotive, HVAC/R and general inspection applications. The viewing axis of the probe can be changed up to 135° in two directions. The monitor records VGA resolution video clips and still photos onto a MicroSD memory card. The recorded media can be played back on the monitor's LCD or uploaded to a PC via the card or the included USB cable.

CAMERA TIPPED PROBE
Type / Diameter / Length	Articulating close-focus soft metal / 5.5mm (0.22 in.) / 3.3 ft. (1m)
Probe Articulation Angle	±90° or more
Probe Minimum Bending Radius	1.77 in. (45mm)
Camera Field of View	54°
Camera Depth of Field	1.2 to 2.4 in. (30 to 60mm)
Camera and Recording Resolution	640 x 480 pixels (VGA)
Camera Light Source	4 white LEDs
CONSOLE
Display Type/Size Color	TFT/3.5 in. (89mm) diagonal
Display Resolution	320 x 240 pixels (QVGA)
Video Out Cable Length	59 in. (1.5m)
Power Consumption	400mA max @ 6VDC
Operating Temperature	14° to 122°F (-10° to 50°C)@15 to 85% RH
Dimensions of Grip and Console	4.1 x 7.0 x 5.3 in. (104 x 178 x 135mm)

Tech Specs

Borescopes / Boroscopes/Video Borescopes Template
Shaft Length	3.3 Ft (39.6 IN)
Shaft Diameter	0.22 IN (0.025 M)
Screen Size	3.5 IN
Detachable Screen	No
Screen Type	LCD
Video Resolution (Boroscopes)	640x480
Image Resolution	640x480
Digital Zoom X	4
Video Output Format	NTSC, PAL
Test Equipment General Attributes
Warranty	1 YEARS
Interfaces I/O	USB
Storage	Micro SD
HTS/Schedule B Number	8528.59.1500
ECCN Number	EAR99
Battery Type	AA
Power Supply Voltage	Battery Powered Power Supply Voltage 400mA max @ 6VDC
Country of Origin	United States
Other Information	Dimensions of Grip and Console:: 4.1 x 7.0 x 5.3 in

2

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Poor Image Quality

1.0

Beware. The image quality is only 320 x 240 pixels (QVGA).

Anonymous on Feb 03, 2017

Recommend to a Friend

Does what it is supposed to do, but...

3.0

The camera image is good, the general workmanship is good. The price is good. What is less than good is the quality of the articulation feature. The length of the tip from camera to bending point is very long, making it difficult or impossible to go around sharp bends. Furthermore, the bend in one direction is not in the same plane as the bend in the opposite direction. In short, the main problems with this device is the articulation which is far from being as good as the more expensive scopes costing 4 times as much or more.

Verified Purchase Anonymous on Apr 05, 2016
