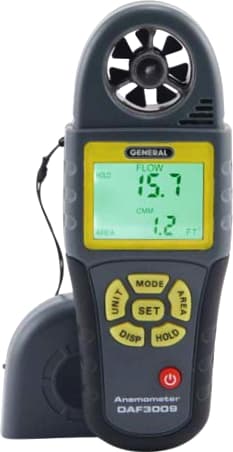

Mini-Anemometer/Psychrometer with CFM/CMM & Enthalpy
Ideal for measuring all parameters, including airflow volume and enthalpy of evaporation, needed to install, test and fine-tune the performance of an HVAC/R system.
Ideal for HVACR technicians and contractors, the DAF3009 offers the ability to measure eight HVACR-related parameters in one handheld device that is small and light enough for one-handed operation.
The DAF3009 can measure all parameters associated with installing, testing and fine-tuning the performance of an HVACR system:
- Airflow Volume (in CFM or CMM)
- Air Speed (in ft/min, m/sec, km/hr, mph or knots)
- Enthalpy (in Btu/lb or kJ/kg)
- Ambient Temperature
- Dew Point Temperature
- Wet Bulb Temperature
- Wind Chill Index
- Relative Humidity
- The instrument not only can measure air speed and airflow volume, but also can track and calculate the maximum, minimum and average values recorded over a measurement “session.” A session begins when the device is powered on and ends five minutes after the final measurement is made (when the Auto Power Off function activates). This capability is helpful for a variety of purposes, such as determining the fastest and slowest fans in a group or the average of a group of fans.
