• Brass Design For Robust Applications
• Unlike existing timing systems
• Low Cost Plus High Accuracy ±3% of Reading
• Measures Low Liquid Flow Rates of 0.53 to 6.6 GPM (2 to 25 LPM)

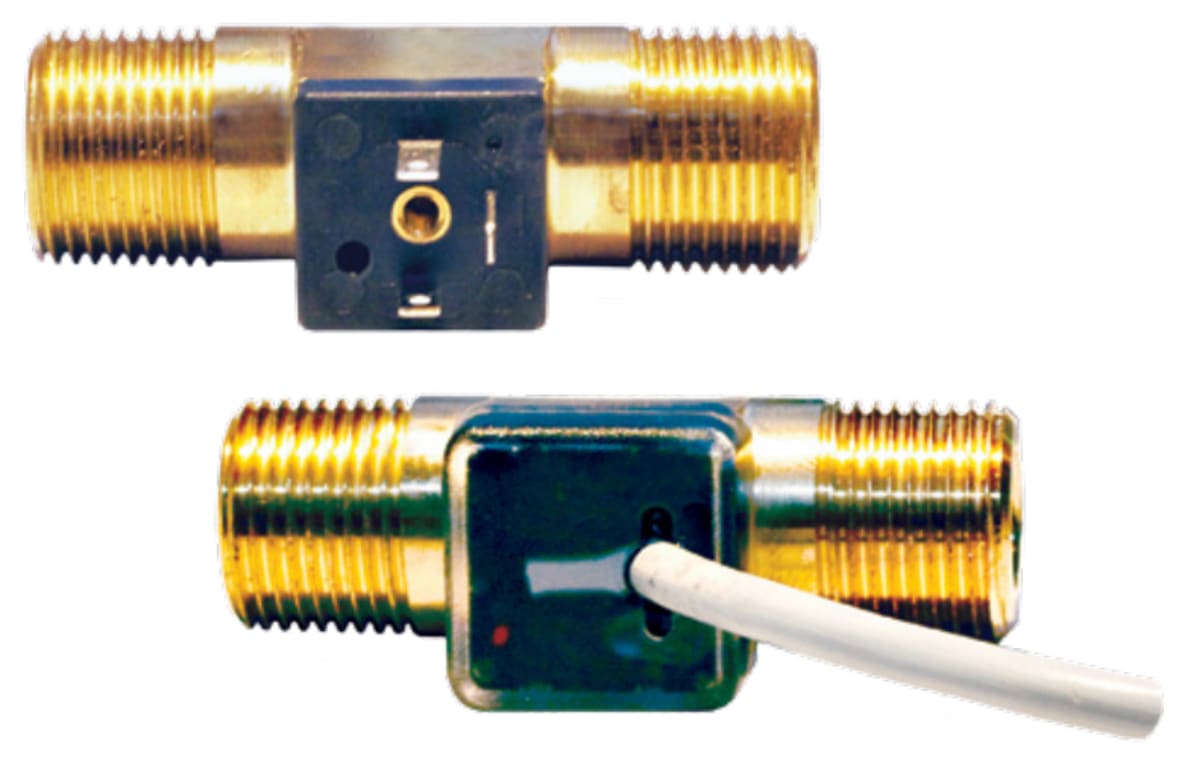

Gems Hall Effect turbine flow rate sensor is ideal for OEM applications involving low flow liquid monitoring. This brass-bodied version of our FT-110 series provides additional pressure capability over the engineered plastic models - up to 350 psig (24 bar). The low cost coupled with 1/2% repeatability, makes it an ideal candidate for replacing dispensing timer systems. Unlike existing timing systems, turbine technology is not influenced by changes in system pressure caused by aging filters. The sensor’s standard power and output specifications make it easy to retrofit to existing controllers.

Specify Part Number based on flow range.
