• Accurate Flow Rate Indication with Integral Visual Confirmation
• 0-10 VDC Analog Signal at 1 mA Max

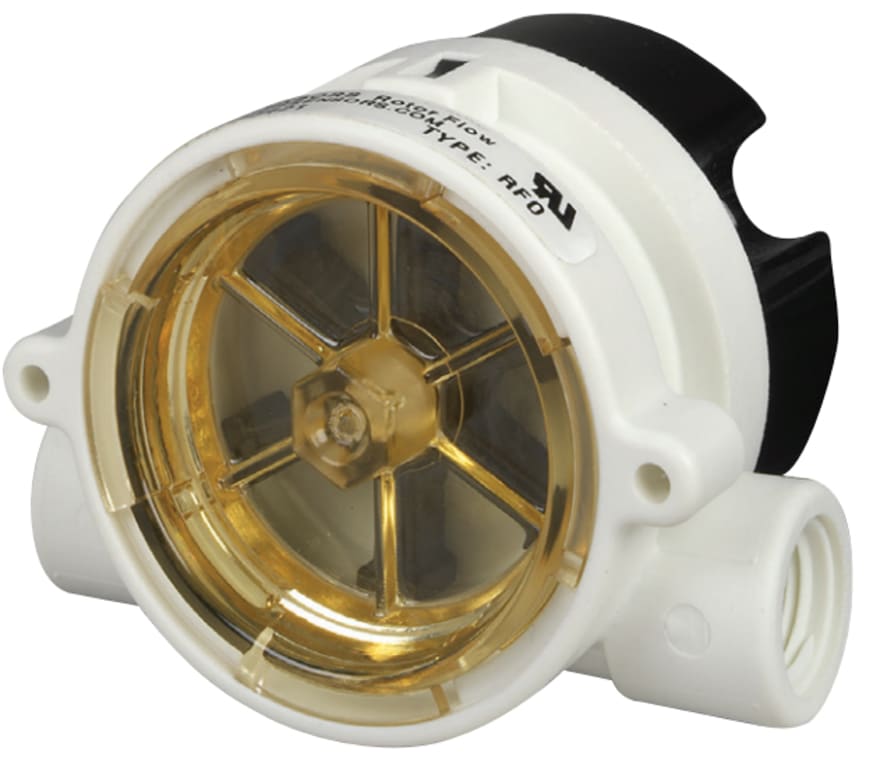

GEMS Sensors popularized RotorFlow’s paddlewheel design by combining high visibility rotors with solid-state electronics that are packaged into compact, panel mounting housings. They provide accurate flow rate output with integral visual confirmation...all with an unprecedented price/performance ratio. RFA Types feature a 0 to 10 VDC analog output which is proportional to the flow rate.

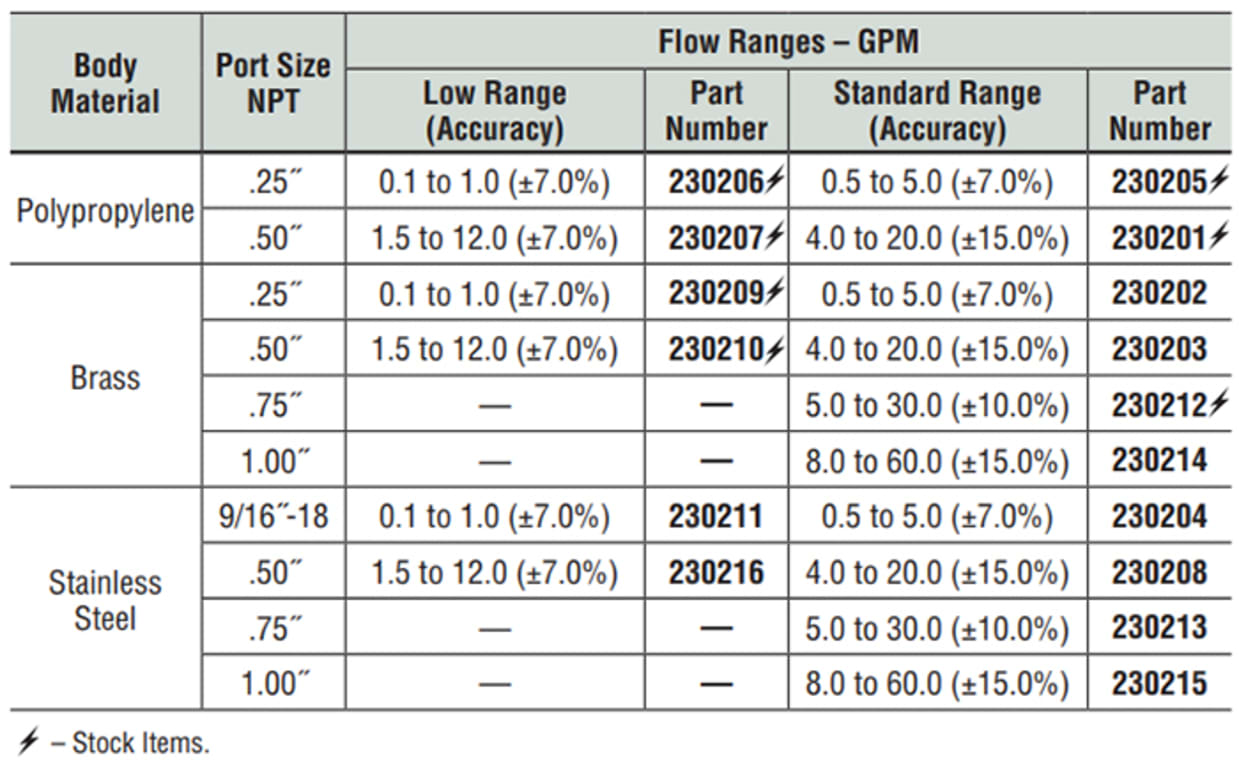

For standard configurations, specify the Part Number based on desired body material and port size.

• Water Purification/Dispensing Systems
• Chemical Metering Equipment
• Lasers and Welders
• Water Injection Systems
• Semiconductor Processing Equipment
• Chillers and Heat Exchangers

PPS composite. Each of the six rotor arms is magnetized. A PTFE loaded bushing ensures long life.
